Meraki MS250-24P Nigeria

Rating

Meraki MS250-24P Nigeria

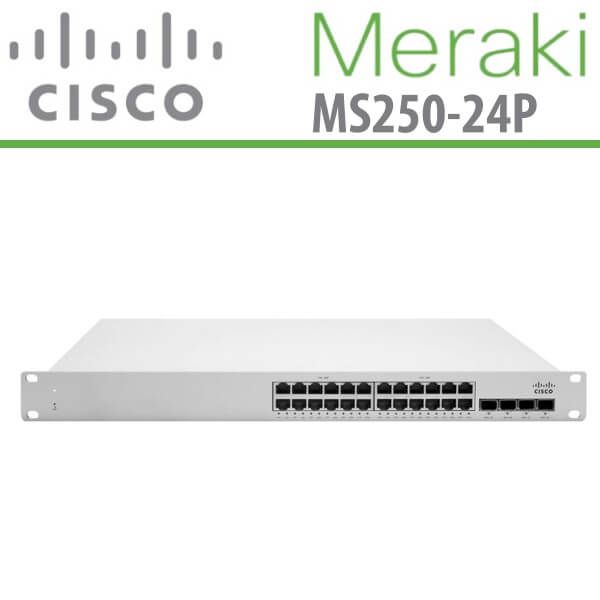

The Meraki MS250-24P Nigeria is a 24-port cloud-managed stackable enterprise-class access switch with four SFP+ uplinks, support for redundant power supplies for mission critical environments, and IP routing.

Category:

Description

Meraki MS250-24P Network Switch Nigeria

The Meraki MS250-24P Nigeria is a 24-port cloud-managed stackable enterprise-class access switch with four SFP+ uplinks, support for redundant power supplies for mission critical environments, and IP routing. The MS250-24P integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test.  allows administrators to establish data traffic priorities.  Enjoy 8 dedicated QoS queues for converged voice, video, and data application.  QoS options are useful when optimal performance is critical, such as with a telephony or data communications.

The Meraki MS250-24P Nigeria is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity. Meraki Network Switches Nigeria feature virtual stacking allowing management of thousands of switch ports as one, without requiring a physical connection between switches. Quickly find and configure switch ports across your entire network, even those in geographically-distributed locations. Easily configure ports for access devices, assign voice VLANs, control PoE, and more, with a few simple clicks and without complex CLI instructions.

Features

  • 24 Port Gigabit Access switching
  • Maximum PoE output: 370 W PoE/PoE+ available simultaneously on all ports
  • Intelligent PoE power allocation based on device advertisement (LLDP)
  • 4 x 10G SFP+ uplink interface
  • Built-in dual stacking interfaces with up to 80G bandwidth
  • Field replaceable power
  • Non-blocking switch backplane with up to 128 Gbps bandwidth support
  • 8 dedicated QoS queues for converged voice, video, and data applications
  • Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
  • Integrated mounting brackets for rack and desk mounting
  • Lifetime hardware warranty and advanced replacement at no additional cost

Centrally managed from the cloud

The Meraki Cloud Networking architecture enables Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Meraki MS250-24P Nigeria is cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

Cloud Management Benefits includes:

  • True zero-touch device provisioning
  • Virtual stacking: manage up to thousands of ports from a single pane of glass.
  • Application layer visibility with automatic operating system, client, and hostname fingerprinting.
  • Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues.
  • Alerts upon power loss, downtime, or configuration changes.
  • Role-based administration and automatic, scheduled firmware upgrades over the web.
  • Regular feature updates and enhancements delivered on demand from the Meraki cloud.

Layer 7 application and client visibility

Meraki MS250-24P Nigeria integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.

QoS for voice and video

Deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control.

Enterprise security

Extending security down to the port level has never been easier. Meraki MS250-24P Nigeria integrate seamlessly with enterprise-grade security systems using 802.1x. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard.

Specifications

General
Device Type Switch – 24 ports – L3 – managed – stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Switching capacity: 128 Gbps
Capacity Forwarding table entries: 16000 | Tagged VLANs: 4095
Jumbo Frame Support 9600 bytes
Max Units In A Stack 8
Routing Protocol VRRP, OSPFv2, static IP routing
Remote Management Protocol SNMP
Authentication Method RADIUS
Features
  • Flow control
  • DHCP support
  • Auto-negotiation
  • VLAN support
  • Auto-uplink (auto MDI/MDI-X)
  • IGMP snooping
  • Syslog support
  • E-mail alert
  • Broadcast Storm Control
  • firmware upgradable
  • Spanning Tree Protocol (STP) support,
  • Rapid Spanning Tree Protocol (RSTP) support
  • Access Control List (ACL) support
  • Quality of Service (QoS)
  • Jumbo Frames support
  • DHCP server
  • SMS alert
  • IPv4 support
  • LLDP support
  • DHCP relay
  • Link Aggregation Control Protocol (LACP)
  • Static routing
  • Crossover detection
  • Cloud managed
  • Bridge protocol data unit (BPDU)
  • Role-Based Access Control (RBAC)
  • Cisco Discovery Protocol
  • Root Guard
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 PoE+ – 30 W | 4 x 10Gbit LAN SFP+ uplink
Power
Power Device Internal power supply
Power Redundancy Optional
Voltage Required AC 120/230 V (47 – 63 Hz)
Miscellaneous
MTBF 403,717 hours
Compliant Standards CSA, IC, FCC, RoHS, RCM
Dimensions & Weight
Width 19.1 in
Depth 16.4 in
Height 1.7 in
Weight 10.58 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
