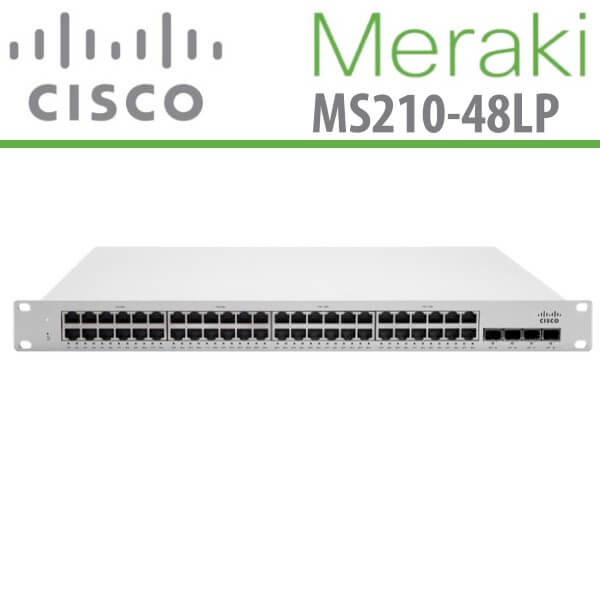

Meraki MS210-48LP Network Switch Nigeria

The Meraki MS210-48LP Nigeria Switch is 48-Ports Cloud Managed Stackable Gigabit PoE+ Switch provides Layer 2 access switching for branch and small campus locations. The MS210-48LP includes four (4) 1G SFP uplinks and physically stacks with the MS225 (sold separately) to gain access to its 10G uplink. This Network Switch Nigeria also supports a rack-mountable PSU (Cisco RPS-2300 – sold separately). For power redundancy requirements, the MS210-48LP is built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches. Meraki MS210-48LP Nigeria is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up an MS210-48LP switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Features

• Forty-eight (48) Gigabit Ethernet RJ45 ports and four (4) 1GbE ports.
• 1G switch, stacking-compatible with the MS225 (sold separately).
• Integrated mounting brackets for rack mounting.
• Dual stacking interfaces with up to 80G of bandwidth.
• Non-blocking switch backplane with up to 176 Gbps bandwidth support.
• Six (6) configurable QoS queues for converged voice, video, and data applications.
• Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
• Low power consumption and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms.

Converged voice, video and data environments

The Meraki MS210-48LP Nigeria is designed to unify data, voice, and video onto a single IP backbone. It supports rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. The MS210-48LP supports eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. The Meraki MS210-48LP can provide power VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. In addition, using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported. For the most power-hungry applications, support for Cisco UPoE is also available. Meraki MC products (sold separately) work flawlessly with the MS210-48LP, and create a unique and powerful experience to installing, supporting and troubleshooting VoIP technology

Application layer visibility

The MS210-48LP Nigeria includes integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, iMacs, iPads, Androids, and other devices. This unprecedented visibility allows optimizing of network resources and maintaining optimal network performance.

Unified software architecture

The Meraki MS210-48LP Nigeria runs on the same Meraki operating system used by all of Meraki’s products. The use of a common operating system allows Meraki to deliver a consistent experience across all product lines. When connected, the MS210-48LP switch automatically connects to the Meraki cloud, downloads configurations, and joins the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically. This ensures the network is kept up-to date with bug fixes, security updates, and new features.

Simplified management and operations

The Meraki MS210-48LP Nigeria can be fully deployed and provisioned in minutes, without requiring any local configuration or staging. Additional or replacement switches can be sent to remote offices and installed by non-technical staff, saving thousands of dollars in time and travel expenses. Meraki’s cloud-managed architecture makes it simpler than ever to quickly provision and reconfigure switch ports with security, QoS, and other parameters. The Meraki dashboard provides unified policies, event logs, and monitoring, which make it easy to manage and grow large network deployments.

Designed for reliability and environmental efficiency

The Meraki MS210-48LP Nigeria is designed for reliability, durable operation in wiring closet environments, which may be prone to high temperatures and limited ventilation. By minimizing total component count and only using proven switching silicon, Meraki is able to deliver highly reliable products with exceptional mean time between failure (MTBF) ratings. Each Meraki Network Switch Nigeria switch also operates with a split-plane architecture, where silicon-based switching and data forwarding are separated from software-based control and management. By decoupling the underlying switching logic from control, each unit is able to deliver wire-speed switching even when advanced software features such as Layer 7 host and OS fingerprinting are enabled.

Distributed branches and remote sites

Meraki MS210-48LP Nigeria equips Meraki’s cloud-based system makes it easy to manage a single switch, or thousands of distributed switches, from a single interface.

• Troubleshoot problems remotely (e.g. find which port has a bad cable attached).
• Add or replace switches without having to send a technician onsite. Switches automatically download their current configuration as soon as they are connected to the network.
• Receive email alerts or SMS messages whenever there’s a problem at a remote site.

Specifications

• Interfaces
  • 24 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
  • 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS210-24P, available on all ports (maximum of 30W per port for PoE+)
  • 4 × 1GbE SFP interfaces for uplink
  • 2 × Stacking interfaces
  • Auto negotiation and crossover detection
• Management
  • Managed via the cloud using the Meraki dashboard
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • No-touch remote deployment (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP, client, and hostname fingerprinting
  • SNMPd and SYSLOG support for integration with other network management solutions
  • Seamless over-the-web firmware upgrades with scheduling & control
• Remote diagnostics
  • Email, SMS and Mobile push notification alerts
  • Cable testing and link failure detection with alerting
  • Live remote packet capture
  • Dynamic and interactive network discovery and topology
  • Aggregated event logs with instant search
• Flexible stacking
  • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
  • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
• Ethernet switching capabilities
  • 802.1p Quality of Service prioritization
  • 802.1Q VLAN tagging with 4,095 addressable tags
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • IGMP snooping for multicast filtering
  • MAC forwarding entries : 16K on 24-port models, 32K on 48-port models
• Security
  • Integrated two-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
  • MAC-based RADIUS authentication (MAB)
  • Port security : Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking
  • STP Enhancements : BPDU guard, Root guard
  • IPv4 ACLs
• Power over Ethernet
  • 802.3af (PoE) 15.4 W per port and 802.3at (PoE+) 30 W per port
  • Maximum PoE output (24P): 370 W
  • PoE available on all ports simultaneously

• Performance
  • Non-blocking switching fabric
  • Switching capacity : 128Gbps (24-port models), 176Gbps (48-port models)
  • Forwarding rate (mpps) : 41.67 (24-port models), 77.38 (48-port models)
  • Jumbo Frame Support (9578 byte Ethernet frame)
  • Flow control support
• Layer 3
  • Static Routing (maximum of 16 static routes supported)
  • DHCP Relay
• Power
  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 15 – 448 W
  • RPS interface : Requires RPS-2300 chassis
• Mounting
  • 1U Rack-mountable with included rack mount hardware
  • 2-post front mounting options available
  • Desktop-mountable with included feet
• Environment
  • Operating temperature : 32°F to 104°F (0°C to 40°C)
  • Humidity : 5 to 95% non-condensing
  • MS225-24, MS225-48 feature fanless operation
• Regulatory
  • CSA-US (US, Canada)
  • FCC (USA)
  • IC (Canada)
  • CE (Europe)
  • RCM (Australia/New Zealand)
  • RoHS
• Warranty
  • Full lifetime hardware warranty with next-day advanced replacement included
• MTBF at 25°C
  • MS210-24 : 590,165
  • MS210-24P : 391,648
• Physical dimensions (H×W×D)
  • MS210-24 : 1.72 x 19.08 x 9.84″(4.38 x 48.46 x 25cm)
  • MS210-24P : 1.72 x 19.08 x 9.84″(4.38 x 48.46 x 25cm)
• Physical Weight
  • MS210-24 : 6.03 lb (2.73 kg)
  • MS210-24P : 8.18 lb (3.71 kg)
