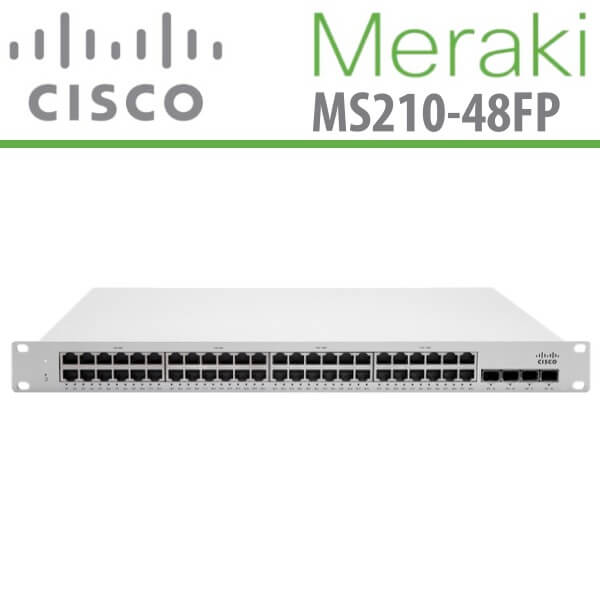

Meraki Ms210 48fp Nigeria

Meraki MS210-48FP Nigeria

Rating

Meraki MS210-48FP Nigeria

Meraki MS210-48FP Nigeria provides Layer 2 access switching for branch and small campus locations. This Switch includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink.

Category:

Description

Meraki MS210-48FP Network Switch Nigeria

Meraki MS210-48FP Nigeria provide Layer 2 access switching for branch and small campus locations. This Switch includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This family also supports an optional, rack-mountable PSU ( RPS-2300) for power redundancy requirements. Built from the ground up, Meraki MS210-48FP Nigeria is easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches. The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Besides, Meraki’s cloud management provides Meraki MS210-48FP Nigeria with benefit features including; security, and scalability for networks of any size. Meraki scales from small sites to campuses, and even distributed networks with thousands of sites. Meraki devices, which self-provision via the cloud, can be deployed in branches without IT. Firmware and security signature updates are delivered seamlessly, over the web. With the cloud, branches can automatically establish secure VPN tunnels between one another with a single click.

Features

Industry Leading Cloud Management

Meraki MS210-48FP Nigeria is cloud managed offering number of benefits that make it easier to build networks large and small:

  • True zero-touch device provisioning.
  • Virtual stacking: manage up to thousands of ports from a single pane of glass.
  • Application layer visibility with automatic operating system, client, and hostname fingerprinting.
  • Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues.
  • Alerts upon power loss, downtime, or configuration changes.
  • Role-based administration and automatic, scheduled firmware upgrades over the web.
  • Regular feature updates and enhancements delivered on demand from the Meraki cloud.

Branch & Campus Access

  • Physical stacking with support for up to 8 stack members for built-in redundancy, performance, and access to 10Gbps uplinks when stacked with an MS225 switch
  • Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
  • Voice VLAN support for simplified VoIP deployments
  • CDP, LLDP advertisement and snooping, with detailed neighbor discovery and visibility
  • Port Mirroring support for monitoring network traffic at line rate
  • IGMP Snooping to optimize network performance for multicast applications
  • Link Aggregation Control Protocol (LACP) for high-capacity trunking, with Multichassis (MLAG) support on stacked switches

Network Security

  • IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
  • Port security and MAC whitelisting
  • Change of Authorization (CoA) and RADIUS accounting support
  • DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
  • Rapid spanning tree, BPDU guard, root guard, and other safeguards to help prevent misconfigurations and reduce convergence time
  • Per port VLAN configuration
  • Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

  • Virtual Stacking lets administrators manage up to thousands of ports in a single interface without having to physically connect stack members
  • Configuration templates for rapid, zero-touch provisioning and auditing of all sites
  • Network Topology for automatic and interactive network mapping
  • Remote cable testing, packet capture and client discovery
  • Automatic and scheduled firmware upgrades for the complete network

Converged Voice, Video and Data Environments

The Meraki MS210-48FP Nigeria is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich qualityof-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.

Application Layer Visibility

Meraki MS210-48FP Nigeria includes integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, iMacs, iPads, Androids, and other devices. This unprecedented visibility allows optimizing of network resources and maintaining optimal network performance.

Unified Software Architecture

Meraki Network switches Nigeria run the same Meraki operating system used by all of Meraki’s products. The use of a common operating system allows Meraki to deliver a consistent experience across all product lines. When connected, Meraki MS210-48FP Nigeria automatically connect to the Meraki cloud, download configuration, and join the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically. This ensures the network is kept up-to date with bug fixes, security updates, and new features.

Cloud Managed Networks

Meraki’s hardware products are built from the ground up for cloud management. As a result, they come out of the box with centralized control, layer 7 device and application visibility, real time web-based diagnostics, monitoring, reporting, and much more. Cisco Meraki networks deploy quickly and easily, without training or dedicated staff. Moreover, Cisco Meraki MS210-48FP Nigeria provides a rich feature set that provides complete control over devices, users, and applications, allowing for flexible access policies and rich security without added cost or complexity.

Cloud Management Architecture

Meraki MS210-48FP Nigeria has Cisco Meraki’s architecture provides feature rich network management without on-site management appliances or WiFi controllers. Every Cisco Meraki device – including wireless access points, Ethernet switches, and security appliances – connects over the Internet to Cisco Meraki’s datacenters, which run Cisco Meraki’s cloud management platform. These connections, secured via SSL, utilize a patented protocol that provides real time visibility and control, yet uses minimal bandwidth overhead (typically 1 kbps or less.) Moreover, Cisco Meraki’s cloud platform is designed to spread computation and storage across independent server clusters in geographically isolated datacenters. Any server or datacenter can fail without affecting customers or the rest of the system. Additionally, Cisco Meraki’s datacenter design is field proven to support tens of thousands of endpoints.

Specifications

  • Interfaces
    • 24 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
    • 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS210-24P, available on all ports (maximum of 30W per port for PoE+)
    • 4 × 1GbE SFP interfaces for uplink
    • 2 × Stacking interfaces
    • Auto negotiation and crossover detection
  • Management
    • Managed via the cloud using the Meraki dashboard
    • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
    • No-touch remote deployment (no staging needed)
    • Detailed historical per-port and per-client usage statistics
    • DHCP, client, and hostname fingerprinting
    • SNMPd and SYSLOG support for integration with other network management solutions
    • Seamless over-the-web firmware upgrades with scheduling & control
  • Remote diagnostics
    • Email, SMS and Mobile push notification alerts
    • Cable testing and link failure detection with alerting
    • Live remote packet capture
    • Dynamic and interactive network discovery and topology
    • Aggregated event logs with instant search
  • Flexible stacking
    • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
    • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
  • Ethernet switching capabilities
    • 802.1p Quality of Service prioritization
    • 802.1Q VLAN tagging with 4,095 addressable tags
    • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
    • Broadcast storm control
    • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
    • 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
    • IGMP snooping for multicast filtering
    • MAC forwarding entries : 16K on 24-port models, 32K on 48-port models
  • Security
    • Integrated two-factor authentication for Dashboard management
    • Role-based access control (RBAC) with granular device and configuration control
    • Corporate wide password policy enforcement
    • IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
    • MAC-based RADIUS authentication (MAB)
    • Port security : Sticky MAC, MAC whitelisting
    • DHCP snooping, detection and blocking
    • STP Enhancements : BPDU guard, Root guard
    • IPv4 ACLs
  • Power over Ethernet:
    • 802.3af (PoE) 15.4 W per port and 802.3at (PoE+) 30 W per port
    • Maximum PoE output (24P): 370 W
    • PoE available on all ports simultaneously
  • Performance
    • Non-blocking switching fabric
    • Switching capacity : 128Gbps (24-port models), 176Gbps (48-port models)
    • Forwarding rate (mpps) : 41.67 (24-port models), 77.38 (48-port models)
    • Jumbo Frame Support (9578 byte Ethernet frame)
    • Flow control support
  • Layer 3
    • Static Routing (maximum of 16 static routes supported)
    • DHCP Relay
  • Power
    • Power input : 100 – 240 VAC, 47-63 Hz
    • Power consumption : 15 – 448 W
    • RPS interface : Requires RPS-2300 chassis, see Cisco RPS-2300 Datasheet for further information
  • Mounting
    • 1U Rack-mountable with included rack mount hardware
    • 2-post front mounting options available
    • Desktop-mountable with included feet
  • Environment
    • Operating temperature : 32°F to 104°F (0°C to 40°C)
    • Humidity : 5 to 95% non-condensing
    • MS225-24, MS225-48 feature fanless operation
  • MTBF at 25°C
    • MS210-24 : 590,165
    • MS210-24P : 391,648
  • Physical dimensions (H×W×D)
    • MS210-24 : 1.72 x 19.08 x 9.84″(4.38 x 48.46 x 25cm)
    • MS210-24P : 1.72 x 19.08 x 9.84″(4.38 x 48.46 x 25cm)
  • Physical Weight
    • MS210-24 : 6.03 lb (2.73 kg)
    • MS210-24P : 8.18 lb (3.71 kg)
