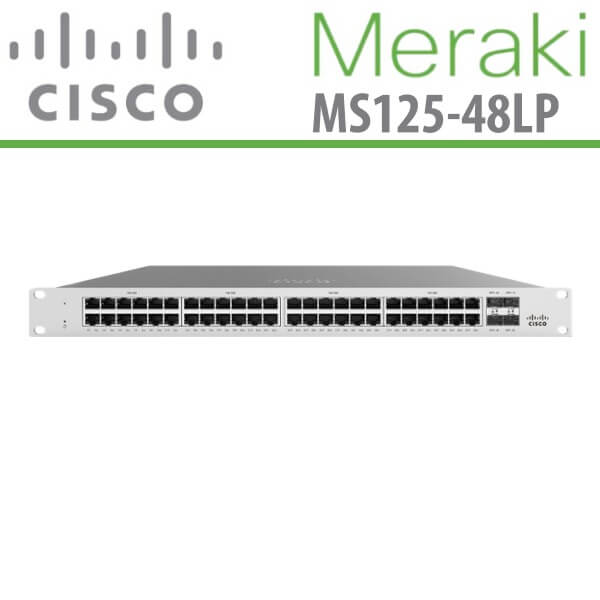

Meraki MS125-48LP Nigeria

Rating

Meraki MS125-48LP Nigeria

The Meraki MS125-48LP Nigeria Switch is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. Setting up MS125-48LP is simple with no need for complicated configuration files or even direct physical access to the switch.

Category:

Description

Meraki MS125-48LP Network Switch Nigeria

The Meraki MS125-48LP Nigeria is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. Setting up MS125-48LP is simple with no need for complicated configuration files or even direct physical access to the switch. Meraki MS125-48LP switch Nigeria provides Layer 3 access switching ideal for branch and campus deployments. The Meraki MS125-48LP Nigeria features a variety of power options designed to meet the diverse needs of large enterprise networks.

Meraki Network Switches Nigeria are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. The Meraki MS125-48LP Nigeria is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic.

Features

Industry-Leading Cloud Management

Meraki MS125-48LP Nigeria is cloud managed yielding a number of benefits that make it easier to build networks large and small:

  • True zero-touch device provisioning
  • Virtual Stacking: manage up to thousands of ports from a single pane of glass
  • Application-layer visibility with automatic operating system, client, and hostname fingerprinting
  • Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues
  • Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configuration changes
  • Role-based administration and automatic, scheduled firmware upgrades over the web
  • Regular feature updates and enhancements delivered on demand from the Meraki cloud

Campus Access

  • Physical stacking with support for up to 8 stack members for built-in redundancy and performance
  • Static and dynamic routing support with DHCP relay and server capabilities
  • Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
  • Voice VLAN support for simplified VoIP deployments
  • CDP, LLDP advertisement and snooping, with detailed neighbor visibility
  • Port Mirroring to monitor network traffic
  • IGMP Snooping to optimize network performance for multicast applications
  • Link Aggregation Control Protocol (LACP) for high-capacity trunking, with Multichassis (MLAG) support on stacked switches

Network Security

  • IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
  • Port security and MAC whitelisting
  • Change of Authorization (CoA) and RADIUS accounting support
  • DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
  • Rapid spanning tree, BPDU guard, root guard, and other safeguards to help prevent misconfigurations and reduce convergence time
  • Per port VLAN configuration
  • Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

  • Virtual Stacking lets administrators manage up to thousands of ports in a single interface without having to physically connect stack members
  • Configuration templates for rapid, zero-touch provisioning and auditing of all sites
  • Network Topology for automatic and interactive network mapping
  • Remote cable testing, packet capture and client discovery
  • Automatic and scheduled firmware upgrades for the complete network

Converged Voice, Video and Data Environments

The Meraki MS125-48LP Nigeria is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. PoE models provide power VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. In addition, using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported.

Application Layer Visibility

Meraki MS125-48LP Nigeria includes integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, iMacs, iPads, Androids, and other devices. This unprecedented visibility allows optimizing of network resources and maintaining optimal network performance.

Unified Software Architecture

 The use of a common operating system allows Meraki to deliver a consistent experience across all product lines. The Meraki MS125-48LP Nigeria automatically connect to the Meraki cloud, download configuration, and join the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically. This ensures the network is kept up-to date with bug fixes, security updates, and new features.

Specifications

  MS125-48 MS125-48LP MS125-48FP
Interface
  • 48 × 10/100/1000BASE-T Ethernet (RJ45)
  • 4 × 10G SFP+ ports for uplinks
  • Auto-negotiation and crossover detection
Management
  • Managed via the Web with the Meraki cloud management platform
  • Integrated with Meraki wireless and complete portfolio of IT products and solutions
  • Zero-touch remote provisioning (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • Operating system, device, and hostname fingerprinting
  • SNMP and SYSLOG support for integration with other network management solutions
  • Automatic firmware upgrades with scheduling control
Remote diagnostics
  • Email, SMS, and Mobile push notification alerts
  • Ping, traceroute, cable testing, and link failure detection with alerting
  • Remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search
Stacking
  • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities
  • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • Port mirroring
  • IGMP snooping for multicast filtering
  • MAC forwarding entries : 32K
Security
  • Integrated multi-factor authentication for cloud management platform
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate-wide password policy enforcement
  • IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing
  • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
  • Port security : Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking
  • IPv4 and IPv6 ACLs
Performance
  • Switching capacity : 176 Gbps
  • Forwarding rate : 130.95 mpps
  • Jumbo frame support (9578 byte Ethernet frame)
  • Flow control
Layer 3
  • DHCP Relay
Power
  • Power input : 100 – 240 V~, 50-60 Hz
  • 21.7-42W max, fanless
  • Power input : 100 – 240 V~, 50-60 Hz
  • 40.2-439.8 W
  • Power input : 100 – 240 V~, 50-60 Hz
  • 52-845.4 W
Mounting
  • 1U Rack-mountable with included rack mount hardware
  • 2-post front mounting options available
Environment
  • Operating temperature : 0°C to 45°C
    0°C – 40°C at sea level
    0°C – 35°C at 10,000 feet for MS125-48 when using MA-SFP-10GB-ER
  • Humidity : 5 to 95% RH
MTBF at 25°C 1,628,120 287,429 311,726
Physical dimensions (H×W×D) 1.73” × 17.32” × 9.84” (4.40 × 44 × 25cm) 1.73” × 17.32” × 13.84” (4.40 × 44 × 34cm) 1.73” × 17.32” × 13.84” (4.40 × 44 × 34cm)
Physical Weight 9.25 lb (4.20 kg) 11.90 (5.40 kg) 12.78 (5.80 kg)
