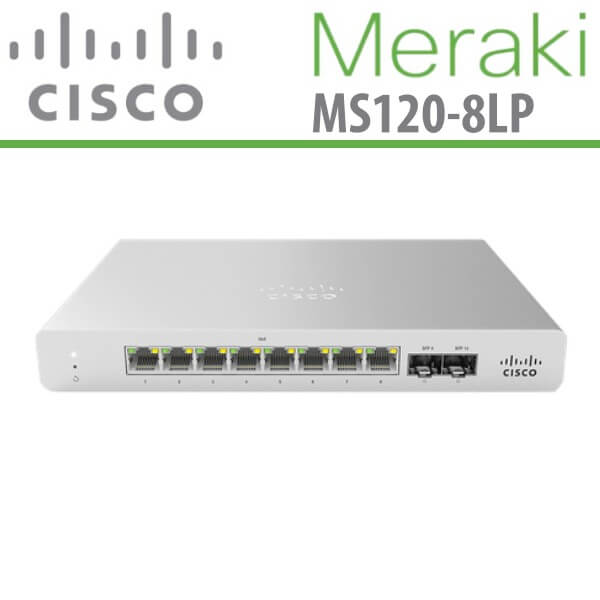

Meraki MS120-8LP Nigeria

Rating

Meraki MS120-8LP Nigeria

Meraki MS120-8LP Nigeria provides Layer 2 access switching in a fanless, compact form factor. Featuring, 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot making Cisco MS120-8LP rapidly secure deployable to branch locations.

Category:

Description

Meraki MS120-8LP Network Switch Nigeria

Meraki MS120-8LP Nigeria provides Layer 2 access switching in a fanless, compact form factor. Featuring, 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot making Cisco MS120-8LP rapidly secure deployable to branch locations. Besides, Meraki Network Switch Nigeria has Meraki dashboard that provides unified policies, event logs, and monitoring, making it easy to manage and scale large network deployments. By providing a complete, powerful set of management functions over the web, Meraki cloud-based management eliminates the need for proprietary command line configuration interfaces, which require expensive and time-consuming certifications. Additional or replacement switches can be sent to remote offices and installed by non-technical staff, saving thousands of dollars in time and travel expenses. The Meraki MS120-8LP Nigeria also includes several remote diagnostic features, from network connectivity and cable integrity tests to latency measurement tools. For deep client troubleshooting, administrators can even perform per-port remote packet captures without any additional probes or hardware on-site.

Features

  • Gigabit Access switching with 8 x 1GbE RJ45 ports and optional PoE/PoE+
  • 2 x 1G SFP uplink interfaces on all models
  • Fanless operation
  • 20Gbps non-blocking compact switch
  • 67/124 watt PoE budget with PoE+ support and dynamic power allocation for powering access points, phones, cameras, and other PoE-enabled devices
  • 8 dedicated QoS queues for converged voice, video, and data applications
  • Integrated mounting brackets for wall or desk mounting, with included Kensington security slot
  • Lifetime hardware warranty and advanced replacement at no additional cost

Cloud Management benefits

Meraki MS120-8LP Nigeria boasts of cloud management feature making it easier to build networks large and small :

  • True zero-touch device provisioning
  • Virtual Stacking : manage up to thousands of ports from a single pane of glass
  • Application-layer visibility with automatic operating system, client, and hostname fingerprinting
  • Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues
  • Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configuration changes
  • Role-based administration and automatic, scheduled firmware upgrades over the web
  • Regular feature updates and enhancements delivered on demand from the Meraki cloud

Branch & Campus Access

  • Quality-of-Service (QoS) to prioritize mission-critical traffic such as voice and video
  • Voice VLAN support for simplified VoIP deployments
  • CDP/LLDP with detailed neighbor discovery and visibility
  • Port Mirroring support for monitoring network traffic at line rate
  • IGMP Snooping to optimize network performance for multicast applications
  • Link Aggregation Control Protocol (LACP) for high-capacity trunking

Network Security

  • IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
  • Port security and MAC whitelisting
  • Change of Authorization (CoA) and RADIUS accounting support
  • DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
  • Rapid Spanning Tree, BPDU Guard, Root Guard, and other safeguards to help prevent misconfigurations and reduce convergence time
  • Per-port VLAN configuration
  • Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

  • Virtual Stacking lets administrators configure thousands of ports across a network in one dashboard action
  • Configuration templates for rapid, zero-touch provisioning and auditing of all sites
  • Network Topology for automatic and interactive network mapping
  • Remote cable testing, packet capture, and client discovery
  • Staged, automatic, and scheduled firmware upgrades for the complete network

Quick Deployment

With Meraki’s secure cloud architecture, device provisioning and orchestration becomes completely streamlined. Zero-touch configuration coupled with configuration templates let administrators define a switch configuration once and then bind thousands of switches to a profile, reducing overhead and increasing network security.

Easy Management & Operation

The Meraki dashboard provides unified policies, event logs, and monitoring, which make it easy to manage and scale large network deployments. By providing a complete, powerful set of management functions over the web, Meraki cloud-based management eliminates the need for proprietary command line configuration interfaces, which require expensive and time-consuming certifications. Meraki MS120-8LP Nigeria Switch can be fully deployed and provisioned in minutes, without requiring any local configuration or staging.

Specifications

Interfaces
  • 8 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
  • 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS120-8LP/FP model, available on all ports (maximum of 30W per port for PoE+)
  • 2 × SFP 1 Gigabit Ethernet interfaces for uplink
  • Auto negotiation and crossover detection
Management
  • Managed via the web with the Meraki cloud management platform
  • Integrated with Meraki wireless and complete portfolio of IT products and solutions
  • Zero-touch remote provisioning (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP, client, and hostname fingerprinting
  • SNMP and Syslog support for integration with other network management solutions
  • Automatic firmware upgrades with scheduling control
Remote diagnostics
  • Email, SMS and mobile push notification alerts
  • Cable testing and link failure detection with alerting
  • Live remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search
Stacking
  • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities
  • 802.1p Quality of Service, 8 queues and configurable DSCP to CoS mapping
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • Broadcast storm control
  • IGMP Snooping
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate
  • Port mirroring
  • MAC forwarding entries : 16,000
Security
  • Integrated two-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • SSO, Corporate-wide password policy enforcement
  • IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
  • MAC-based RADIUS authentication (MAB)
  • Port security : Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking
  • STP Enhancements include BPDU guard, Root guard
  • IPv4 ACLs
Power over Ethernet
  • 802.3af (PoE) 15.4W per port and 802.3at (PoE+) 30W per port
  • Maximum PoE output : 67/124W
  • PoE available on all ports simultaneously
Performance
  • Switching capacity : 20Gbps
  • Forwarding rate : 14.88mpps with standard packet size
  • Jumbo frame support (9578 byte Ethernet frame)
  • Flow control support
Power
  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 5 – 161W
  • External power supply for MS120-8LP, MS120-8LP LP
Mounting
  • Wall or utility board mountable with included mount hardware
  • Desktop-mountable with included feet
  • Kensington lock slot included
Environment
  • Operating temperature : 32°F to 104°F (0°C to 40°C), 45°C
  • Humidity : 5 to 95% non-condensing
  • Fanless operation
Regulatory
  • CSA-US (US, Canada)
  • FCC (USA)
  • IC (Canada)
  • CE (Europe)
  • RCM (Australia/New Zealand)
  • RoHS
Warranty
  • Full lifetime hardware warranty with next-day advanced replacement included
MTBF
  • MS120-8LP 1,307,036
  • MS120-8LP 837,035
  • MS120-8LPFP 579,132
Physical dimensions (H×W×D)
  • MS120-8LP : 1.1” × 8.74” × 5.91” (2.8 × 22.2 × 15cm)
  • MS120-8LP : 1.1” × 8.74” × 5.91” (2.8 × 22.2 × 15cm)
  • MS120-8LPFP : 1.75” × 8.97” × 8.58” (4.4 × 22.7 × 23cm)
Physical Weight
  • MS120-8LP : 2.36 lb (1.07 kg)
  • MS120-8LP : 2.76 lb (1.25 kg)
  • MS120-8LPFP : 3.42 lb (1.55 kg)
