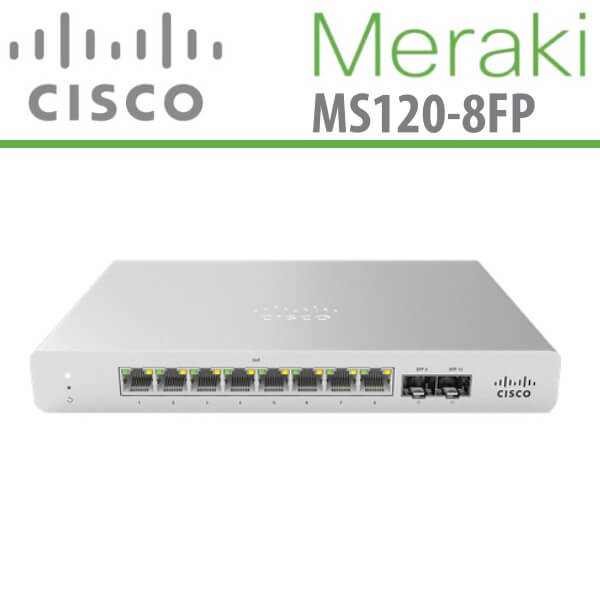

Meraki MS120-8FP Nigeria

Rating

Meraki MS120-8FP Nigeria

Meraki MS120-8FP Nigeria provide Layer 2 access switching in a fanless, compact form factor. The MS120-FP include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, ensuring secure rapid deployment to branch location.

Category:

Description

Meraki MS120-8FP Network Switch Nigeria

Meraki MS120-8FP Nigeria provide Layer 2 access switching in a fanless, compact form factor. The MS120-FP include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, ensuring secure rapid deployment to branch location. Cisco Meraki MS120-8FP Nigeria is highly reliable with its unique design that uses the same protocol for measuring path performance as real traffic. Build resilient SD-WAN connectivity with integrated wired and cellular WAN, switching, and Wi-Fi. Optimize traffic over all available paths between sites and all multi-cloud environments.

This Meraki network switch Nigeria is built to work seamlessly with cloud-managed Wi-Fi access points, IoT devices, and security solution. Meraki MS120-8FP Nigeria is easily configured to be deployed, secured, and monitored at scale. To set up Meraki MS120-8FP Nigeria Switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used.

Features

  • Gigabit Access switching with 8 x 1GbE RJ45 ports and optional PoE/PoE+
  • 2 x 1G SFP uplink interfaces on all models
  • Fanless operation
  • 20Gbps non-blocking compact switch
  • 67/124 watt PoE budget with PoE+ support and dynamic power allocation for powering access points, phones, cameras, and other PoE-enabled devices
  • 8 dedicated QoS queues for converged voice, video, and data applications
  • Integrated mounting brackets for wall or desk mounting, with included Kensington security slot
  • Lifetime hardware warranty and advanced replacement at no additional cost

Cloud Managed Switch

Meraki Network Switch Nigeria is cloud managed with a number of benefits that make it easier to build networks large and small :

  • True zero-touch device provisioning
  • Virtual Stacking : manage up to thousands of ports from a single pane of glass
  • Application-layer visibility with automatic operating system, client, and hostname fingerprinting
  • Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues
  • Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configuration changes
  • Role-based administration and automatic, scheduled firmware upgrades over the web
  • Regular feature updates and enhancements delivered on demand from the Meraki cloud

Branch & Campus Access

  • Quality-of-Service (QoS) to prioritize mission-critical traffic such as voice and video
  • Voice VLAN support for simplified VoIP deployments
  • CDP/LLDP with detailed neighbor discovery and visibility
  • Port Mirroring support for monitoring network traffic at line rate
  • IGMP Snooping to optimize network performance for multicast applications
  • Link Aggregation Control Protocol (LACP) for high-capacity trunking

Network Security

  • IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
  • Port security and MAC whitelisting
  • Change of Authorization (CoA) and RADIUS accounting support
  • DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
  • Rapid Spanning Tree, BPDU Guard, Root Guard, and other safeguards to help prevent misconfigurations and reduce convergence time
  • Per-port VLAN configuration
  • Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

  • Virtual Stacking lets administrators configure thousands of ports across a network in one dashboard action
  • Configuration templates for rapid, zero-touch provisioning and auditing of all sites
  • Network Topology for automatic and interactive network mapping
  • Remote cable testing, packet capture, and client discovery
  • Staged, automatic, and scheduled firmware upgrades for the complete network

Rapid Deployment & Configuration

With Meraki’s secure cloud architecture, Meraki MS120-8FP Nigeria provisioning and orchestration becomes completely streamlined. Also, have zero-touch configuration coupled with configuration templates let administrators define a switch configuration once and then bind thousands of switches to a profile, reducing overhead and increasing network security.

Specifications

Interfaces
  • 8 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
  • 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS120-8FPLP/FP model, available on all ports (maximum of 30W per port for PoE+)
  • 2 × SFP 1 Gigabit Ethernet interfaces for uplink
  • Auto negotiation and crossover detection
Management
  • Managed via the web with the Meraki cloud management platform
  • Integrated with Meraki wireless and complete portfolio of IT products and solutions
  • Zero-touch remote provisioning (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP, client, and hostname fingerprinting
  • SNMP and Syslog support for integration with other network management solutions
  • Automatic firmware upgrades with scheduling control
Remote diagnostics
  • Email, SMS and mobile push notification alerts1
  • Cable testing and link failure detection with alerting
  • Live remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search
Stacking
  • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities
  • 802.1p Quality of Service, 8 queues and configurable DSCP to CoS mapping
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • Broadcast storm control
  • IGMP Snooping
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate
  • Port mirroring
  • MAC forwarding entries : 16,000
Security
  • Integrated two-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • SSO, Corporate-wide password policy enforcement
  • IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
  • MAC-based RADIUS authentication (MAB)
  • Port security : Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking
  • STP Enhancements include BPDU guard, Root guard
  • IPv4 ACLs
Power over Ethernet
  • 802.3af (PoE) 15.4W per port and 802.3at (PoE+) 30W per port
  • Maximum PoE output : 67/124W
  • PoE available on all ports simultaneously
Performance
  • Switching capacity : 20Gbps
  • Forwarding rate : 14.88mpps with standard packet size
  • Jumbo frame support (9578 byte Ethernet frame)
  • Flow control support
Power
  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 5 – 161W
  • External power supply for MS120-8FP, MS120-8FP LP
Mounting
  • Wall or utility board mountable with included mount hardware
  • Desktop-mountable with included feet
  • Kensington lock slot included
Environment
  • Operating temperature : 32°F to 104°F (0°C to 40°C), 45°C
  • Humidity : 5 to 95% non-condensing
  • Fanless operation
MTBF
  • MS120-8FP 1,307,036
  • MS120-8FPLP 837,035
  • MS120-8FP 579,132
Physical dimensions (H×W×D)
  • MS120-8FP : 1.1” × 8.74” × 5.91” (2.8 × 22.2 × 15cm)
  • MS120-8FPLP : 1.1” × 8.74” × 5.91” (2.8 × 22.2 × 15cm)
  • MS120-8FP : 1.75” × 8.97” × 8.58” (4.4 × 22.7 × 23cm)
Physical Weight
  • MS120-8FP : 2.36 lb (1.07 kg)
  • MS120-8FPLP : 2.76 lb (1.25 kg)
  • MS120-8FP : 3.42 lb (1.55 kg)
