Description

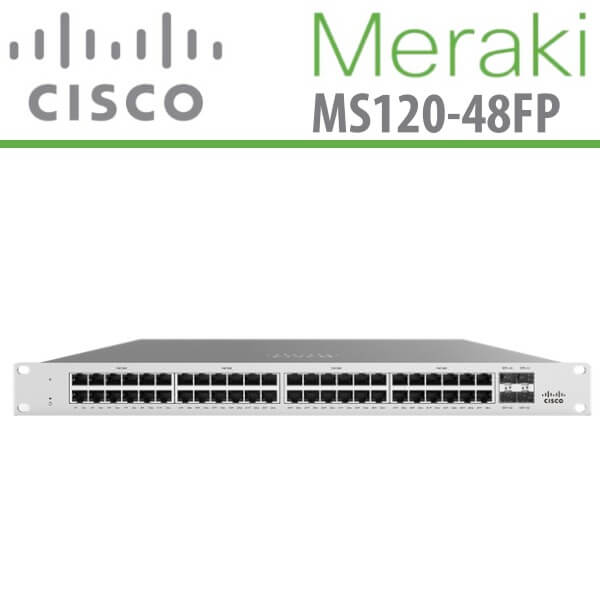

Meraki MS120-48FP Network Switch Nigeria

Meraki MS120-48FP Nigeria provide Layer 2 access switching and PoE+ support for small branch and SOHO deployments. All models include four 1GbE SFP ports for fiber uplinks. Meraki Network Switches Nigeria are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.

Setting up this Meraki switch is simple with just plug in function without complicated configuration files or even direct physical access to the switch. The Meraki MS120-48FP Nigeria features a variety of power options designed to meet the diverse needs of large enterprise networks. Network Switch Nigeria are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches. Meraki Network Switch Nigeria is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites.

Features

Cloud Managed Device

Meraki MS120-48FP Network Nigeria is cloud managed offering a number of benefits that make it easier to build networks large and small:

• True zero-touch device provisioning
• Virtual Stacking: manage up to thousands of ports from a single pane of glass
• Application-layer visibility with automatic operating system, client, and hostname fingerprinting
• Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues
• Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configuration changes
• Role-based administration and automatic, scheduled firmware upgrades over the web
• Regular feature updates and enhancements delivered on demand from the Meraki cloud

Branch & Campus Access

• PoE and PoE+ models available for device level powering
• Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
• Voice VLAN support for simplified VoIP deployments
• CDP/LLDP with detailed neighbor discovery and visibility
• Port Mirroring support for monitoring network traffic at line rate
• IGMP Snooping to optimize network performance for multicast applications
• Link Aggregation Control Protocol (LACP) for high-capacity trunking

Network Security

• IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
• Port security and MAC whitelisting
• Change of Authorization (CoA) and RADIUS accounting support
• DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
• Rapid Spanning Tree, BPDU Guard, Root Guard, and other safeguards to help prevent misconfigurations and reduce convergence time
• Per-port VLAN configuration
• Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

• Virtual Stacking lets administrators configure thousands of ports across a network in one dashboard action without having to physically connect stack members
• Configuration templates for rapid, zero-touch provisioning and auditing of all sites
• Network Topology for automatic and interactive network mapping
• Remote cable testing, packet capture, and client discovery
• Automatic and scheduled firmware upgrades for the complete network

Meraki Ms120 48fp Nigeria

Converged Voice, Video and Data Environments

The Meraki Network Switches Nigeria is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. PoE models provide power for VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. In addition, using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported.

Application Layer Visibility

Meraki Network Switch Nigeria include integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, Macs, iPads, Androids, and other devices. This unprecedented visibility allows optimizing of network resources and maintaining optimal network performance.

Simplified management

Meraki switches run the same operating system used by all of Meraki’s products. The use of a common operating system allows Meraki to deliver a consistent experience across all product lines. When connected, MS120 switches automatically connect to the Meraki cloud, download configuration, and join the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically. This ensures the network is kept up-to date with bug fixes, security updates, and new features.

Specifications
