Description

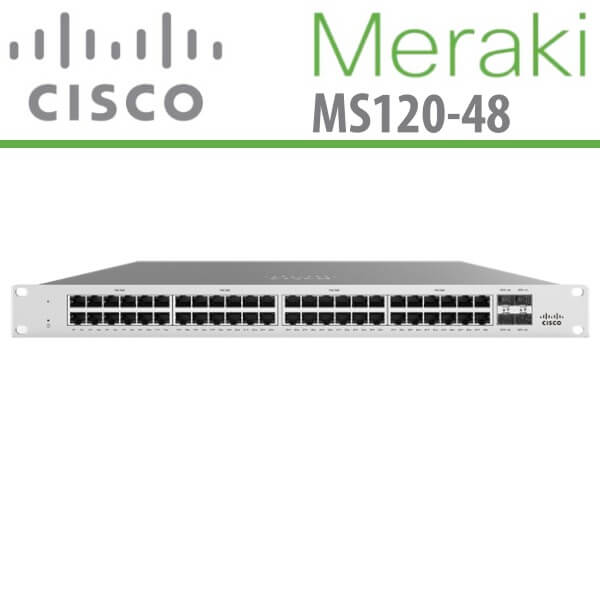

Meraki MS120-48 Network Switch Nigeria

Meraki MS120-48 Nigeria provides Layer 2 access switching ideal for branch and campus deployments. The Meraki MS120-48 Switch Nigeria is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. Meraki MS120-48 Nigeria is built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches. Meraki MS120-48 Network Switch is designed with a variety of power options to meet the diverse needs of large enterprise networks. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Network Switch Nigeria has centralized management gives administrators deep visibility into the network and how it’s used. Managers can see which switches are near capacity across hundreds of sites also, find configuration changes made with instant search.

Features

Industry-Leading Cloud Management

Cloud management has a number of benefits that make it easier to build networks large and small:

True zero-touch device provisioning
Virtual Stacking: manage up to thousands of ports from a single pane of glass
Application-layer visibility with automatic operating system, client, and hostname fingerprinting
Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues
Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configuration changes
Role-based administration and automatic, scheduled firmware upgrades over the web
Regular feature updates and enhancements delivered on demand from the Meraki cloud

Branch & Campus Access

PoE and PoE+ models available for device level powering
Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
Voice VLAN support for simplified VoIP deployments
CDP/LLDP with detailed neighbor discovery and visibility
Port Mirroring support for monitoring network traffic at line rate
IGMP Snooping to optimize network performance for multicast applications
Link Aggregation Control Protocol (LACP) for high-capacity trunking

Network Security

IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
Port security and MAC whitelisting
Change of Authorization (CoA) and RADIUS accounting support
DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
Rapid Spanning Tree, BPDU Guard, Root Guard, and other safeguards to help prevent misconfigurations and reduce convergence time
Per-port VLAN configuration
Multiple administrative roles with sophisticated security policy management

Meraki Ms120 48 Nigeria

Network Troubleshooting & Automation

Virtual Stacking lets administrators configure thousands of ports across a network in one dashboard action without having to physically connect stack members
Configuration templates for rapid, zero-touch provisioning and auditing of all sites
Network Topology for automatic and interactive network mapping
Remote cable testing, packet capture, and client discovery
Automatic and scheduled firmware upgrades for the complete network

Converged Voice, Video and Data Environments

The Network Switch Nigeria is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. PoE models provide power for VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. In addition, using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported.

Application Layer Visibility

Meraki is the only switch to include integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, Macs, iPads, Androids, and other devices. This unprecedented visibility allows optimizing of network resources and maintaining optimal network performance.

Unified Software Architecture

Meraki switches run the same operating system used by all of Meraki’s products. The use of a common operating system allows Meraki to deliver a consistent experience across all product lines. When connected, MS series automatically connect to the Meraki cloud, download configuration, and join the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically. This ensures the network is kept up-to date with bug fixes, security updates, and new features.

Specifications

General

Manufacturer : Meraki
Brand : Meraki
Product Line : Cisco Meraki Cloud Managed
Model : MS120-48
Packaged Quantity : 1

Performance

Forwarding rate : 77.38 Mpps, Switching capacity: 104 Gbps

Capacity

MAC forwarding entries : 32000, VLANs supported : 4094

Networking

Type : Switch
Subcategory : Network hubs and switches
Subtype : Gigabit Ethernet
Form Factor : Desktop, Rack-mountable
Ports Quantity : 48
Jumbo Frame Support : 9578 bytes
Manageable : Yes
Remote Management Protocol : SNMP

Features

Access Control List (ACL) support
Auto-negotiation
Auto-uplink (auto MDI/MDI-X)
Broadcast Storm Control
Cisco Discovery Protocol
Crossover detection
DHCP client
DHCP snooping
DSCP to CoS Mutation
E-mail alert
Fanless
Firmware upgradable
Flow control
IGMP snooping
Port mirroring
Quality of Service (QoS)
Rapid Spanning Tree Protocol (RSTP) support
Role-Based Access Control (RBAC)
Single Sign-On (SSO) support
SMS alert
Spanning Tree Protocol (STP) support
STP BPDU Guard
STP Root Guard
Syslog support
VLAN support
Zero-touch provisioning (ZTP)
Compliant Standards : IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP)
