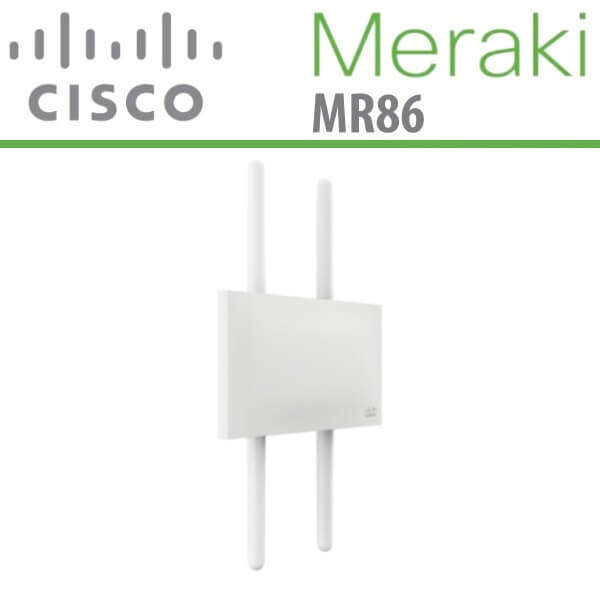

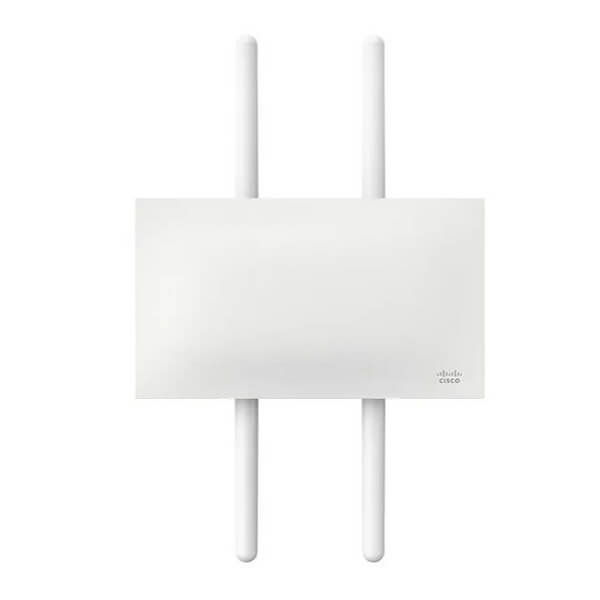

Meraki MR86 Wireless Access Point Nigeria

The Meraki MR86 Nigeria is a Wireless Dual-Band Wi-Fi 6 Outdoor Access Point from Cisco is an enterprise-grade cloud-managed WLAN access point designed for challenging enterprise environments. This Cisco Meraki MR86 Nigeria use advanced Wi-Fi 6 technologies including MU-MIMO, OFDMA, beam forming, and channel bonding to deliver the throughput and reliable coverage required by demanding business applications. The Cisco MerakiMR86 Nigeria is the fastest Wi-Fi 6 available today for tough, high-density outdoor or industrial indoor deployments. The Cisco Meraki MR86 Nigeria packs advanced chipset providing an aggregated, dual-band frame rate of up to 3.55Gbps via dual-concurrent, 4×4 : 4-stream radios and multi-gigabit uplink support. The multi-gigabit uplink future-proofs MR86 networks with the latest multi-gigabit switching technology.

Enhanced mesh rate selection algorithms boost bridging and connectivity performance between access points. With dedicated third radio Meraki wifi Access Point Nigeria provides real-time WIDS/WIPS with automated RF optimization. In addition, an integrated fourth radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing functionality. Access up to 24×7 monitoring via the Meraki cloud delivers real-time that alerts if a network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle. The MR86’s firmware is automatically kept up to date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.

Features

• 4×4 : 4 MU-MIMO 802.11ax
• 5* Gbps dual-radio aggregate frame rate
• 24×7 real-time WIDS/WIPS and spectrum analytics via dedicated third radio
• Integrated Bluetooth Low Energy Beacon
• Integrated scanning radio
• Enhanced transmit power and receive sensitivity
• Integrated enterprise security and guest access
• Application-aware traffic shaping
• Optimized for voice and video
• Self-configuring, plug-and-play deployment
• Sleek design blends into office environments
• Full-time Wi-Fi location tracking via dedicated 3rd radio

Dual–radio aggregate frame rate of up to 3.5 Gbps*
Meraki MR86 Nigeria boasts of 5 GHz 4×4 : 4 radio and 2.4 GHz 4×4 : 4 radio offer a combined dual–radio aggregate frame rate of 3.5 Gbps*, with up to 2,402 Mbps in the 5 GHz band and 1,148 Mbps in the 2.4 GHz band. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR86 to support a higher client density than typical enterprise-class access points, resulting in better performance for more clients, from each Access Point.

Multi User Multiple Input Multiple Output (MU-MIMO)
With support for features of 802.11ax, the MR86 offers MU-MIMO and OFDMA for more efficient transmission to multiple clients. Especially suited to environments with numerous mobile devices, MU-MIMO enables multiple clients to receive data simultaneously. This increases the total network performance and improves the end user experience.

Dedicated third radio delivers 24×7 wireless security and RF analytics
The Cisco Meraki Nigeria has dedicated dual-band scanning and security radio continually asses the environment, characterizing RF interference and containing wireless threats like rogue access points. There’s no need to choose between wireless security, advanced RF analysis, and serving client data – a dedicated third radio means that all functions occur in real-time, without any impact to client traffic or Access Point throughput.

Bluetooth Low Energy Beacon and scanning radio
An integrated fourth Bluetooth radio provides seamless deployment of BLE Beacon functionality and effortless visibility of Bluetooth devices. The MR86 enables the next generation of location-aware applications while future proofing deployments, ensuring it’s ready for any new customer engagement strategies.

Automatic cloud-based RF optimization
The MR86’s sophisticated and automated RF optimization means that there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The RF data collected by the dedicated third radio is continuously fed back to the Meraki cloud. This data is then used to automatically tune the channel selection, transmit power, and client connection settings for optimal performance under even the most challenging RF conditions.

Integrated enterprise security and guest access
The Cisco wifi MR86Nigeria features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and Enterprise authentication with 802.1X and Active Directory integration provide wired-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.

Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
Meraki Systems Manager natively integrates with the MR86 to offer automatic, context-aware security. Systems Manager’s self-service enrollment helps to rapidly deploy MDM without installing additional equipment, and then dynamically tie firewall and traffic shaping policies to client posture.

Application-aware traffic shaping
The Meraki wifi Access Point MR86 Nigeria includes an integrated layer 7 packet inspection, classification, and control engine, enabling the configuration of QoS policies based on traffic type, helping to prioritize mission-critical applications while setting limits on recreational traffic like peer-to-peer and video streaming. Policies can be implemented per network, per SSID, per user group, or per individual user for maximum flexibility and control.

Voice and video optimizations
Industry standard QoS features are built-in and easy to configure. Wireless Multi-Media (WMM) access categories, 802.1p, and DSCP standards support all ensure important applications get prioritized correctly, not only on the MR86, but on other devices in the network. Unscheduled Automatic Power Save Delivery (U-Access PointSD) and new Target Wait Time features in 802.11ax clients ensure minimal battery drain on wireless VoIP phones.

Self-configuring, self-maintaining, always up-to-date
When plugged in, the MR86 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. If new firmware is required, this is retrieved by the Access Point and updated automatically. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.

Advanced analytics
Drilling down into the details of network usage provides highly granular traffic analytics. Visibility into the physical world can be enhanced with journey tracking through location analytics. Visitor numbers, dwell time, repeat visit rates, and track trends can all be easily monitored in the dashboard and deeper analysis is enabled with raw data available via simple Access Points
