Description

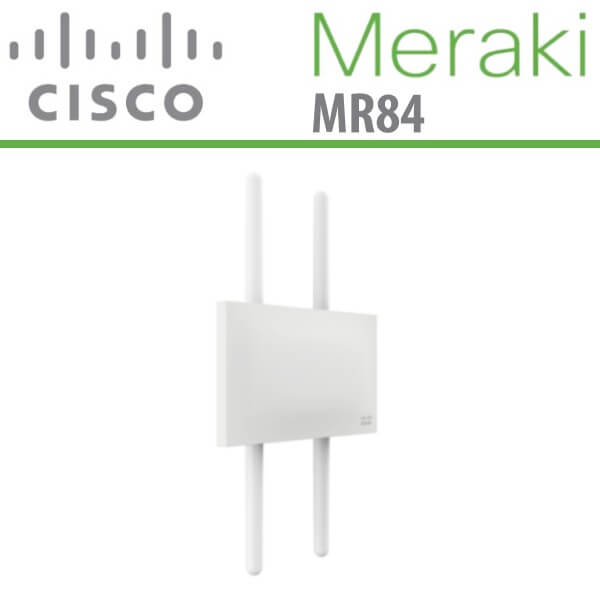

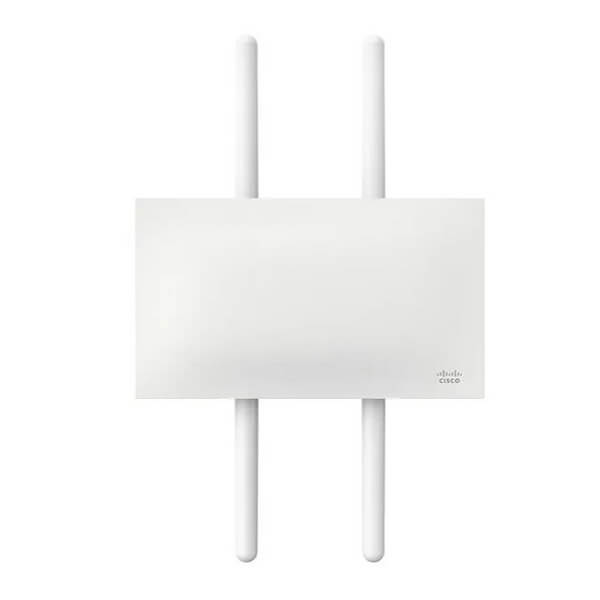

Meraki MR84 Access Point Nigeria

The Meraki MR84 Nigeria is designed for high-performance next-generation deployments in environments with high-density with tough RF. Meraki MR84 offers performance, enterprise- grade security, and simple cloud-based management. This Wi-Fi Nigeria features a four-radio, cloud-managed 4×4 MU-MIMO 802.11ac Wave 2 access point. A unique industrial design enables flexible installation in harsh outdoor conditions or indoor spaces. Meraki MR84 Nigeria provides a maximum 2.5 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing. The combination of cloud management, powerful hardware, multiple radios, and advanced software features make the Meraki MR84 Nigeria an outstanding platform for the toughest use cases including; high-density deployments and support for latency-sensitive applications like voice and high-definition video.

Management of the MR84 is handled through the Meraki dashboard, an intuitive browser-based interface that enables rapid deployment across multiple sites without the need for time-consuming training or costly certifications. Since the MR84 is self configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff. 24×7 monitoring via the Meraki cloud delivers real-time alerts if the network encounters problems. Remote diagnostic tools enable immediate troubleshooting so that distributed networks can be managed with a minimum of hassle. The MR84’s firmware is automatically kept up to date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.

Features

Ideal for outdoor and industrial indoor environments
2×2 : 2 802.11ac, 1.3 Gbps aggregate dual-band data rate
24×7 real-time WIPS/WIDS and spectrum analytics via dedicated third radio
Integrated Bluetooth Low Energy (BLE) Beaconing and scanning radio
Forms point-to-point links with optional sector antennas
Self-healing, zero-configuration mesh
Integrated enterprise security and guest access
Application-aware traffic shaping
Self-configuring, plug-and-play deployment

Dual-Radio Aggregate Data Rate of up to 2.5 Gbps*

A 5 GHz 4×4 : 4 radio supporting 160 MHz channel widths and a 2.4 GHz 4×4 : 4 radio supporting 40 MHz channel widths offer a combined dual-radio aggregate frame rate of 2.5 Gbps*, with up to 1,733 Mbps in the 5 GHz band and 800 Mbps in the 2.4 GHz band. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR84 to support a higher client density than typical enterprise-class access points, resulting in fewer Access Points for a given deployment.

Rugged Industrial Design

The Meraki MR84 Nigeria features a design that is tested for salt spray, vibration, extreme thermal conditions, shock and dust and is IP67 rated, making it ideal for extreme environments. Despite its ruggedized design, the MR84 has a low-profile and is as easy to deploy indoors as out.

Multi User Multiple Input Multiple Output (MU-MIMO)

The Meraki MR84 Nigeria offers MU-MIMO (an 802.11ac Wave 2 standard) for efficient transmission to multiple clients. Especially suited for environments with numerous mobile devices, MU-MIMO enables multiple clients to receive data simultaneously. This increases the total network performance and improves the end user experience

Multi-gigabit and Link Aggregation Uplink Options

This Meraki Wi-Fi Nigeria is integrated with multi-gigabit uplink ensuring maximum capacity for this high performance 802.11ac Wave 2 hardware configuration. The MR84’s two Ethernet uplinks can be configured for link aggregation if switch infrastructure does not yet support multi-gigabit. The second Ethernet port can be used to connect wired client devices, like a security camera, when not used for link aggregation.

Bluetooth Low Energy Beacon and Scanning Radio

An integrated fourth radio for Bluetooth Low Energy (BLE) provides seamless deployment of BLE Beacon functionality and effortless visibility of BLE devices. The MR84 enables the next generation of location-aware applications while futureproofing your deployment, making it ready for any new user engagement strategies.

Integrated Enterprise Security and Guest Access

The MR84 features integrated, easy-to-use security technologies that provide secure connectivity for employees and guests alike. Advanced security features, such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X and Active Directory integration, provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.

24×7 Wireless Security and RF Analytics

With dedicated dual-band scanning and security radio Meraki Nigeria continually assesses the environment, characterizing RF interference and automatically containing wireless threats like rogue access points. There’s no need to choose between wireless security, advanced RF analysis, and serving client data : a dedicated third radio means that all three occur in real-time, without any impact to client traffic or Access Point throughput

Application-Aware Traffic Shaping

This Cisco Meraki Nigeria is integrated layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming. Importantly, controls can be implemented per network, per SSID, per user group, or per individual user.

Voice and Video Optimizations

Industry standard QoS features are easy to configure and come built in. Wireless Multi Media (WMM) access categories, 802.1p, and DSCP industry standards all ensure important applications get prioritized correctly, not only on the MR84, but on other steps in the traffic flow. Unscheduled Automatic Power Save Delivery (U-Access PointSD) ensures minimal battery drain on wireless VoIP phones.

Always Up-To-Date Self-Configuration and Maintenance

When plugged in, Meraki MR84 Wi-Fi Access Point Nigeria automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. If new firmware is required, it is retrieved by the Access Point and updated automatically. This ensures the network is maintained with bug fixes, security updates, and new features managed for you.

Advanced Analytics

Drill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world : View visitor numbers, dwell times, repeat visit rates, and compare trends. Fully customize your analysis with simple Access PointIs.

Specifications

Radios

4 GHz 802.11b/g/n/ac client access radio
5 GHz 802.11a/n/ac Wave 2 client access radio
4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
Concurrent operations of all four radios

Supported frequency bands (country-specific restrictions apply) :

412-2.484 GHz
150-5.250 GHz (UNII-1)
250-5.350 GHz (UNII-2)
470-5.600, 5.660-5.725 GHz (UNII-2e)
725-5.825 GHz (UNII-3)

802.11ac Wave 2 and 802.11n Capabilities

2 x 2 multiple input, multiple output (MIMO) with two spatial streams
SU-MIMO and MU-MIMO support
Maximal ratio combining (MRC) and beamforming
20 and 40 MHz channels (802.11n); 20, 40, 80 channels (802.11ac)
Up to 256-QAM on both 2.4 GHz and 5 GHz bands
Packet aggregation

Power

Power over Ethernet : 37 – 57 V (802.3at required with functionality-restricted 802.3af mode supported)
Power consumption : 21W max (802.3at)

Power over Ethernet injector sold separately

Mounting

Mounts to walls and vertical poles
Mounting hardware included

Physical Security

Security screw included
Concealed mount plate

Environment

Operating temperature : -4 °F to 131 °F (-20 °C to 55 °C)
IP67 environmental rating
Operating humidity : 5% to 95%

Physical Dimensions

6 cm x 17.6 cm x 18.5 cm including mounting bracket
Weight : 3.8 lbs. (1.7 kg)

Interfaces

1x 100/1000/2.5G BASE-T Ethernet & 1x 10/100/1000 BASE-T Ethernet (RJ45)
Four external N-type female antenna connectors

Security

Integrated Layer 7 firewall with mobile device policy management
Real-time WIDS/WIPS with alerting and automatic rogue Access Point containment with Air Marshal
Flexible guest access with device isolation
VLAN tagging (802.1Q) and tunneling with IPSec VPN
PCI compliance reporting
WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
EAccess Point-TLS, EAccess Point-TTLS, EAccess Point-MSCHAccess Pointv2, EAccess Point-SIM
TKIP and AES encryption
Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration)
Cisco ISE integration for Guest access and BYOD Posturing

Quality of Service
