Meraki MR70 Nigeria

Rating

Meraki MR70 Nigeria

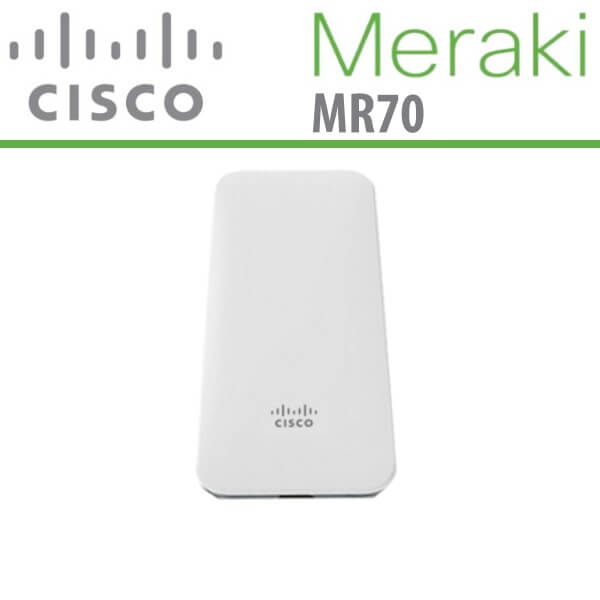

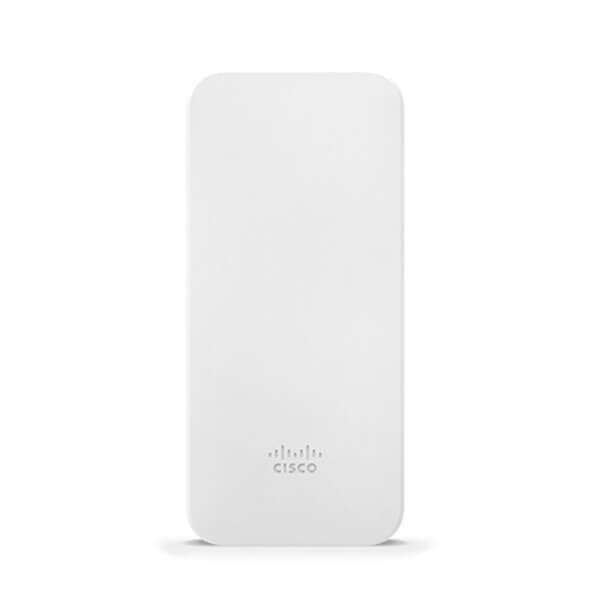

The Meraki MR70 Nigeria Dual-Band 802.11ac Outdoor Access Point is a dual-radio, cloud-managed 2×2:2 802.11ac Wave 2 access point with MU-MIMO support. Designed for basic, best-effort deployments that require rapid installation, the MR70 provides enterprise-grade security and simple management.

Description

Meraki MR70 Access Point Nigeria

The Meraki MR70 Nigeria Dual-Band 802.11ac Outdoor Access Point is a dual-radio, cloud-managed 2×2 : 2 802.11ac Wave 2 access point with MU-MIMO support. Designed for basic, best-effort deployments that require rapid installation, the MR70 provides enterprise-grade security and simple management. The Meraki wifi AP Nigeria is intended for municipal athletic fields, garages, public gardens, space-constrained outdoor deployments, and even rapid-response emergency kits designed to quickly deliver wireless in disaster-struck areas. The Meraki MR70 Nigeria provides a maximum 1.3 Gb/s aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. Power-over-Ethernet injector is sold separately.

The Meraki MR70 Nigeria is managed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without training or certifications. Because the access point is monitored 24-7 via Meraki cloud, the Meraki MR70 Nigeria can deliver real-time alerts if the network encounters problems, and diagnostic tools enable real-time troubleshooting over the web. The Cisco Meraki MR70’s firmware is kept up to date from the cloud. New features, bug fixes, and enhancements are delivered over the web, meaning no manual software updates to download or missing security patches to worry about.

Features

  • 2×2 MU-MIMO 802.11ac Wave 2
  • 3 Gbps* aggregate dual-band frame rate
  • Integrated enterprise security and guest access
  • Built-in WIPS for threat detection and remediation
  • Application-aware traffic shaping
  • Self-configuring, plug-and-play deployment
  • Rapid, plug-and-play deployment
  • Integrated location analytics and heat map

Up to 1.3 Gb/s Aggregate Data Rate

A 5 GHz 2×2 : 2 radio supporting 80 MHz channel widths and a 2.4 GHz 2×2 : 2 radio supporting 40 MHz channel widths offer a combined dual-radio aggregate frame rate of 1.3 Gb/s, with up to 866 Mb/s in the 5 GHz band thanks to 802.11ac Wave 2 and 400 Mb/s in the 2.4 GHz band.

Multi-User Multiple Input Multiple Output (MU-MIMO)

With support for the 802.11ac Wave 2 standard, Cisco MR70 Nigeria offers MU-MIMO for more efficient transmission to multiple clients. This increases the total network performance and improves end user experience.

Integrated Enterprise Security

The Cisco Meraki MR70 Nigeria features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X provide wire-like security while still being easy to configure. One-click guest isolation provides secure, internet-only access for visitors. Our policy firewall (Identity Policy Manager) enables group or device-based, granular access policy control.

Wireless Security with Air Marshal

The Cisco Meraki MR70 Nigeria comes equipped with Air Marshal, a built-in wireless intrusion prevention system (WIPS) for threat detection and attack remediation. Cisco MR70 access points will scan their environment opportunistically based on user-defined preferences. Alarms and auto-containment of malicious rogue APs are configured via flexible remediation policies, ensuring optimal security and performance in even the most challenging wireless environments

Application-Aware Traffic Shaping

The Cisco Meraki MR70 Nigeria includes an integrated Layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming.

Self-Configuring, Self-Optimizing, Self-Healing

The Cisco Meraki MR70’s advanced mesh technologies like multichannel routing protocols and multiple gateway support enable scalable coverage of hard-to-wire areas with zero configuration. Mesh also improves network reliability – in the event of a switch or cable failure, the MR70 will automatically revert to mesh mode, providing continued gateway connectivity to clients.

Rapid, Plug-and-Play Deployment

When plugged in, Cisco Meraki MR70 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. It self-optimizes, determining the ideal channel, transmit power, and client connection parameters.

Integrated Analytics

Drill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world with built-in location analytics that enables you to view visitor numbers, dwell time, repeat visit rates, and track foot traffic trends.

Specifications

Wireless
Wireless Frequency Bands 2.4 GHz, 5 GHz Dual-Band
MU-MIMO Support 2 x 2
WLAN Mode Wi-Fi 5 (802.11ac)
Sensitivity -99 to -62 dBm
Antenna Gain 4.5 to 4.7 dBi
Transmit Power 11 to 19 dBm
Supported Protocols WMM
Antenna Placement Internal
Bluetooth None
Throughput 1300 Mb/s Total

  • 2.4 GHz : 400 Mb/s
  • 5 GHz : 866 Mb/s
Interface
Ports 1 x 10/100 Mb/s Ethernet (RJ45) PoE
USB Sharing Support No
Security
Guest Network Support Yes
Wireless Security AES, TKIP, WEP, WPA, WPA2-PSK, WPA2-Enterprise
Management
Operation Modes Access Point, Mesh
Hardware
Supported IEEE Standards 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, 802.11r, 802.1p, 802.1q, 802.1x, 802.3af, 802.3at
Electrical
DC Input Power 12 VDC
Power Consumption 11 W
Environmental
Operating Temperature -4 to 131°F / -20 to 55°C
Operating Humidity 5 to 95%
General
IP Rating IP67
Certifications EN 60950-1, RoHS, as per Manufacturer
Mount Options Pole, Wall
Dimensions 9.6 x 4.5 x 1.2″ / 245 x 115 x 30 mm
Weight 15.87 oz / 0.45 kg
