Description

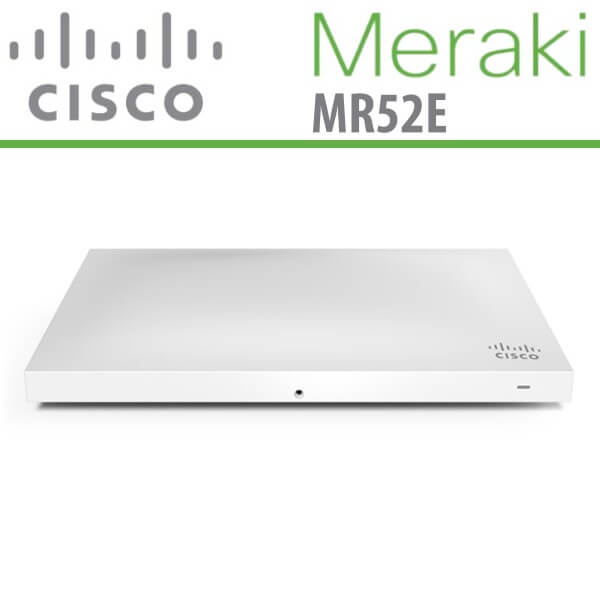

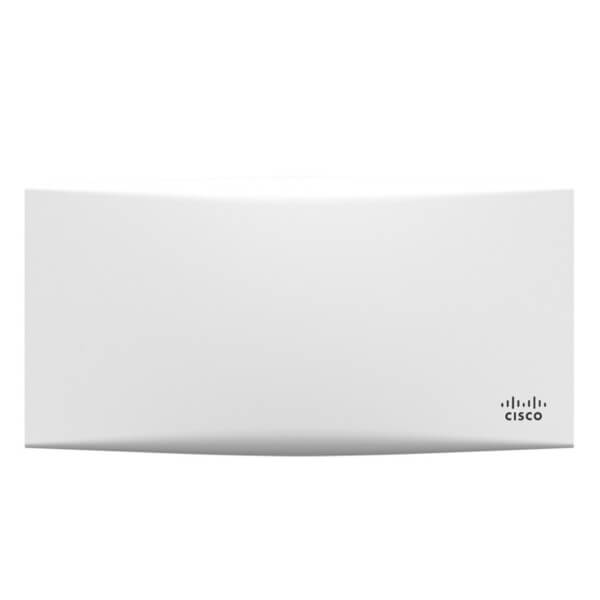

Meraki MR52E Access Point Nigeria

The Meraki MR52E Nigeria is a cloud-managed 4×4:4 802.11ac Wave 2 access point with 160 MHz channels and MU-MIMO support. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, Meraki Wi-Fi Dubai offers high performance, enterprise-grade security, and simple management. The Cisco Meraki MR52E Nigeria provides a maximum of 2.5 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing. With the combination of cloud management, high-performance hardware, multiple radios, and advanced software features, Meraki Wi-Fi access point Nigeria makes an outstanding platform for the most demanding of uses – including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.

Features

4×4 160 MHz MU-MIMO 802.11ac Wave 2
5 Gbps dual-radio aggregate frame rate
24 x 7 real-time WIPS/WIDS and spectrum analytics via dedicated third radio
Integrated Bluetooth Low Energy Beacon and scanning radio
Enhanced transmit power and receive sensitivity
Full-time Wifi location tracking via dedicated 3rd radio
Integrated enterprise security and guest access
Application-aware traffic shaping
Self-configuring, plug-and-play deployment
Sleek, low-profile design blends into office environments
Optimized for voice and video

Dual–radio aggregate frame rate of up to 2.5 Gbps*

Meraki Wi-Fi Nigeria features 5 GHz 4×4:4 radio supporting 80 MHz channel widths and a 2.4 GHz 4×4:4 radio supporting 40 MHz channel widths offer a combined dual–radio aggregate frame rate of 2.5 Gbps*, with up to 1,733 Mbps in the 5 GHz band thanks to 802.11ac Wave 2 and 800 Mbps in the 2.4 GHz band. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR52E to support a higher client density than typical enterprise-class access points, resulting in fewer Access Points for a given deployment.

Multi User Multiple Input Multiple Output (MU-MIMO)

With support for the 802.11ac Wave 2 standard, Meraki Wi-Fi Access Point Nigeria offers MU-MIMO for more efficient transmission to multiple clients. Especially suited for environments with numerous mobile devices, MU-MIMO enables multiple clients to receive data simultaneously. This increases the total network performance and the improves the end user experience.

Link Aggregation

The two Ethernet uplinks on the Meraki MR52E Nigeria can be configured for link aggregation, which relieve any existing uplink bottlenecks created by 802.11ac Wave 2.

Bluetooth Low Energy Beacon and scanning radio

An integrated fourth radio for Bluetooth Low Energy (BLE) provides seamless deployment of BLE Beacon functionality and effortless visibility of BLE devices. The MR52E enables the next generation of location-aware applications while futureproofing your deployment, ensuring it’s ready for any new customer engagement strategies.

Automatic cloud-based RF optimization

The MR52E’s sophisticated and automated RF optimization means that there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The RF data collected by the dedicated third radio is continuously fed back to the Meraki cloud. This data is then used to automatically tune the channel selection, transmit power, and client connection settings for optimal performance under even the most challenging RF conditions.

Meraki Mr52e Nigeria

Integrated enterprise security and guest access

The Meraki Wi-Fi Nigeria features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X and Active Directory integration provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.

Third radio delivers 24×7 wireless securities and RF analytics

The MR52E’s dedicated dual-band scanning and security radio continually assesses the environment, characterizing RF interference and containing wireless threats like rogue access points. There’s no need to choose between wireless security, advanced RF analysis, and serving client data – a dedicated third radio means that all functions occur in real-time, without any impact to client traffic or Access Point throughput.

Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

Meraki Systems Manager natively integrates with the MR52E to offer automatic, context-aware security. You can use Systems Manager’s self-service enrollment to rapidly deploy MDM without installing additional equipment, and then dynamically tie firewall and traffic shaping policies to client posture.

Specification

Radios

4 GHz 802.11b/g/n/ac client access radio
5 GHz 802.11a/n/ac Wave 2 client access radio
4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
4 GHz Bluetoth Low Energy (BLE) radio with Beacon and BLE scanning support.
Concurrent operation of all three radios

Supported frequency bands (country-specific restrictions apply):

412-2.484 GHz
150-5.250 GHz (UNII-1)
250-5.350 GHz (UNII-2)
470-5.600, 5.660-5.725 GHz (UNII-2e)
1725-5.825 GHz (UNII-3)

Antenna

Integrated omni-directional antennas (5.5 dBi gain @ 2.4 GHz, 6.2 dBi gain @ 5 GHz)
Individual antenna elements for each radio

802.11ac Wave 2 and 802.11n Capabilities

4 x 4 multiple input, multiple output (MIMO) with four spatial streams
SU-MIMO and MU-MIMO support
Maximal ratio combining (MRC) and beamforming
20 and 40 MHz channels (802.11n); 20, 40, 80, and 160 MHz channels (802.11ac)
Up to 256-QAM on both 2.4 GHz and 5 GHz bands
Packet aggregation

Power

Power over Ethernet : 37-57 V (802.3at required; functionality-restricted 802.3af mode supported)
Alternative 12 V DC input
Power consumption : 21W max (802.3at)
Power over Ethernet injector and DC adapter sold separately

Interfaces

2x 10/100/1000 BASE-T Ethernet (RJ45)
1x DC power connector (5.5 mm x 2.5 mm, center positive)

Mounting

All standard mounting hardware included
Desktop, ceiling, and wall mount capable
Ceiling tile rail (9/16, 15/16, or 1 1/2” flush or recessed rails), assorted cable junction boxes
Bubble level on mounting cradle for accurate horizontal wall mounting

Physical Security

Two security screw options included
Kensington lock hard point
Concealed mount plate with anti-tamper cable bay

Environment

Operating temperature : 32 °F to 104 °F (0 °C to 40 °C)
Humidity : 5% to 95%

Physical Dimensions

56” x 6.38” x 1.58” (268.2 mm x 162.0 mm x 38.8 mm), not including deskmount feet or mount plate
Weight : 28.9 oz (820g)

Security

Integrated Layer 7 firewall with mobile device policy management
Real-time WIDS/WIPS with alerting and automatic rogue Access Point containment with Air Marshal
Flexible guest access with device isolation
VLAN tagging (802.1Q) and tunneling with IPSec VPN
PCI compliance reporting
WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
EAccess Point-TLS, EAccess Point-TTLS, EAccess Point-MSCHAccess Pointv2, EAccess Point-SIM
TKIP and AES encryption
Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
ISE integration for guest access and BYOD posturing

Quality of Service
