Meraki MR30H Nigeria

Rating

Meraki MR30H Nigeria

The Meraki MR30H Nigeria is a quad-radio, cloud-managed 2×2:2 802.11ac Wave 2 wall switch access point with MU-MIMO support. It is designed for next-generation deployments in hotel rooms, university residences, and other multi-dwelling units.

Description

Meraki MR30H Access Point Nigeria

The Meraki MR30H Nigeria is a quad-radio, cloud-managed 2×2:2 802.11ac Wave 2 wall switch access point with MU-MIMO support. Designed for next-generation deployments in hotel rooms, university residences, and other multi-dwelling units, the MR30H provides performance, enterprise-grade security, and simple management. The Cisco Meraki MR30H Nigeria provides a maximum 1.3 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization. Four ethernet ports on the wall switch allow easy connectivity of external wired devices. An integrated Bluetooth Low Energy (BLE) radio delivers beacon and scanning capabilities. The combination of cloud management, 802.11ac Wave 2, full-time RF environment scanning, a wall switch, and integrated Bluetooth technology delivers the throughput, reliability, convenience and flexibility required by demanding multi-dwelling use cases.

Cisco Meraki’s cloud based management provides centralized visibility and control over Cisco Meraki’s wired and wireless networking hardware, without the cost and complexity of wireless controllers or overlay management systems. The Meraki Wi-Fi Nigeria is managed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without training or certifications. Since the MR30H is self-configuring and managed over the web, it can even be deployed at a remote location without on-site IT staff. Cisco Meraki MR30H Nigeria is monitored 24×7 via the Meraki cloud, which delivers real-time alerts if the network encounters problems. Remote diagnostics tools enable real-time troubleshooting over the web, meaning multi-site, distributed networks can be managed remotely. The MR30H’s firmware is always kept up to date from the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web, meaning no manual software updates to download or missing security patches to worry about.

Features

Aggregate data rate of up to 1.3 Gbps*

Cisco Meraki MR30H Nigeria is equipped with 5 GHz 2×2:2 radio supporting 80 MHz channel widths and a 2.4 GHz 2×2:2 radio supporting 40 MHz channel widths offer a combined dual-radio aggregate frame rate of 1.3 Gbps*, with up to 866 Mbps in the 5 GHz band thanks to 802.11ac Wave 2 and 400 Mbps in the 2.4 GHz band.

Multi User Multiple Input Multiple Output (MU-MIMO)

With support for the 802.11ac Wave 2 standard, Meraki Wi-Fi Access Point Nigeria provides MU-MIMO for more efficient transmission to multiple clients. Especially suited for environments with numerous mobile devices, MU-MIMO enables multiple clients to receive data simultaneously. This increases the total network performance and the improves the end user experience.

24×7 wireless security and RF analysis

The Cisco Wi-Fi Nigeria, boasts of sophisticated, dedicated dual-band third radio that scans the environment continuously, characterizing RF interference and containing wireless threats like rogue access points. No more need to choose between wireless security, advanced RF analysis, and serving client data: a dedicated third radio means that all three occur in real-time, without any impact to client traffic or Access Point throughput.

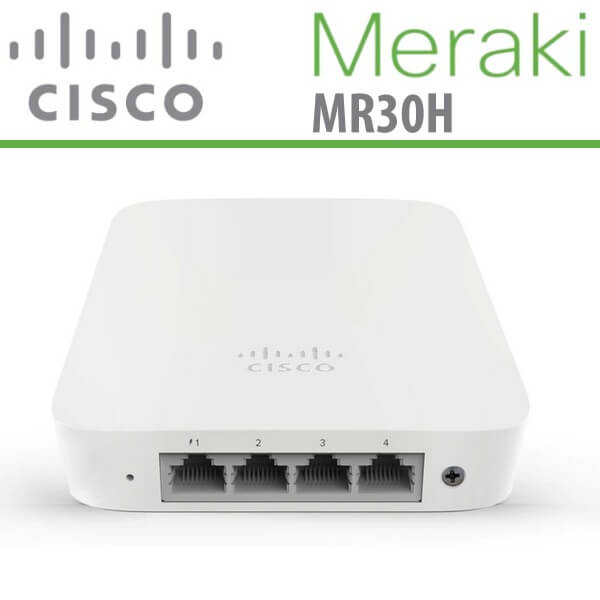

4 Ethernet ports

Flexibly connect up to four network devices to Meraki Wi-Fi Access Point Nigeria. With one 802.3af PoE port, devices such as an IP phone can be powered directly from the access point. The versatility of the MR30H port configuration dramatically reduces the need for cabling infrastructure in multitenant dwellings, while still providing the ability to connect several wired and wireless devices to the network.

Bluetooth Low Energy beacon and scanning

An integrated Bluetooth low energy radio provides seamless deployment of BLE beacon functionality and effortless visibility of BLE devices within range of the Access Point. The MR30H enables the next generation of location-aware applications and engagement right out of the box.

Automatic cloud-based RF optimization

The MR30H’s sophisticated, automated RF optimization algorithms use a dedicated third radio to collect real-time, full-spectrum RF analysis data — which is continuously fed back to the Meraki cloud. The Meraki cloud then automatically tunes the MR30H’s channel selection and transmit power for optimal performance under the most challenging RF conditions.

Secure wireless environments using 24×7 Air Marshal

No longer choose between a wireless intrusion prevention system (WIPS) and serving client data: thanks to the dedicated third radio, Air Marshal, a highly optimized built-in WIPS, scans continuously for threats and remediates them as commanded, all without disrupting client service. Alarms and optional auto- containment of rogue Access Points are configured via flexible remediation policies, ensuring optimal security and performance in even the most challenging wireless environments.

Integrated enterprise security

The Cisco Meraki MR30H Nigeria features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. Our policy firewall (Identity Policy Manager) enables group or device based, granular access policy control. Meraki Teleworker VPN makes it easy to extend the corporate LAN to remote sites, without requiring all clients and devices to have client VPN software. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.

Application-aware traffic shaping

The MR30H includes an integrated layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming.

Voice and Video optimizations

Industry standard QoS features are easy to configure like Wireless Multi Media (WMM) Access Categories, 802.1p, and DSCP.

Low-profile, sleek, and compact design

Despite its robust feature set, the MR30H is packaged in a sleek, low-profile enclosure that blends seamlessly into any environment.

Self-configuring, self-optimizing, self-healing

Meraki Wi-Fi Access Point Nigeria automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. The MR30H then self-optimizes, determining the ideal channel, transmit power, and client connection parameters. As necessary, it will also self-heal, responding automatically to switch failures and other errors.

Easy Management

Cisco Meraki’s cloud based management provides centralized visibility & control over Cisco Meraki’s wired and wireless networking hardware, without the cost and complexity of wireless controllers or overlay management systems. Integrated with Cisco Meraki’s entire product portfolio, cloud management provides feature rich, scalable, and intuitive centralized management for networks of any size.

Specifications

Radio
  • 2.4 GHz 802.11b/g/n/ac client access radio
  • 5 GHz 802.11a/n/ac client access radio
  • 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
  • 2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and BLE scanning support
  • Concurrent operations of all four radios
Interfaces
  • 1 × 10/100/1000 BASE-T Ethernet (RJ45) input
  • 1 × Gigabit Ethernet (RJ45) with 802.3af Power over Ethernet output
  • 3 × Gigabit Ethernet (RJ45) out
Operating Bands
  • 2.412-2.484 GHz
  • 5.150-5.250 GHz (UNII-1)
  • 5.250-5.350 GHZ (UNII-2)
  • 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
  • 5.725 -5.825 GHz (UNII-3)
802.11ac & 802.11n Capabilities
  • 2×2 multiple input, multiple output (MIMO) with two spatial streams
  • SU-MIMO and MU-MIMO support
  • Maximal ratio combining (MRC) & Beamforming
  • 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
  • Up to 256 QAM on both 2.4 GHz and 5 GHz bands
  • Packet aggregation
Power
  • Power over Ethernet: 37 – 57 (802.3at compatible)
  • Power consumption: 25W max (802.3at)
  • 802.3af operating mode disables PoE out
  • Power over Ethernet injector sold separately
Mounting
  • Mounting hardware included for US, UK, EU, AU & Asia single gang wall jacks
Physical Security
  • Two security screw options (included)
  • Concealed mount plate
Environment
  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Humidity: 5 to 95% non-condensing
Physical Dimensions 6.1” x 4.3” x 0.9” (155 mm x 110 mm x 23 mm), not including mount foot or mount plate
Weight Weight: 14.4 oz (409 g)
Antenna Integrated omni-directional antennas (3.7 dBi gain at 2.4 GHz, 4.8 dBi gain at 5 GHz)
Security
  • Integrated layer 7 firewall with mobile device policy management
  • Real-time WIDS/WIPS with alerting and automatic rogue Access Point containment with Air Marshal
  • Flexible guest access with device isolation
  • VLAN tagging (802.1Q) and tunneling with IPSec VPN
  • PCI compliance reporting
  • WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
  • EAccess Point-TLS, EAccess Point-TTLS, EAccess Point-MSCHAccess Pointv2, EAccess Point-SIM
  • TKIP and AES encryption
  • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
Quality of Service
  • Advanced Power Save (U-Access PointSD)
  • WMM Access Categories with DSCP and 802.1p support
  • Layer 7 application traffic identification and shaping
Mobility
  • PMK, OKC, and 802.11r for fast Layer 2 roaming
  • Distributed or centralized layer 3 roaming
LED Indicators
  • 4x 2 Ethernet status for Ethernet ports
  • 1 power/booting/firmware upgrade status
