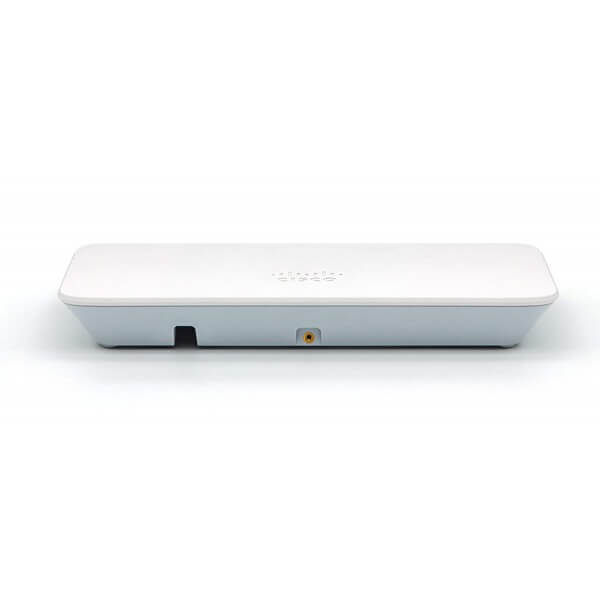

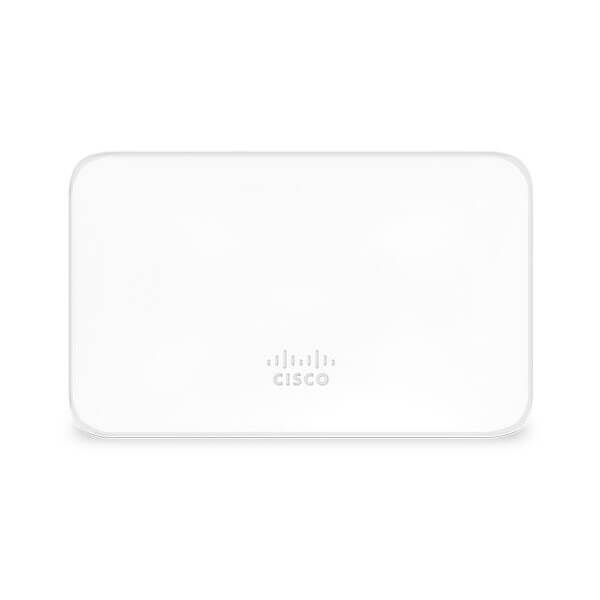

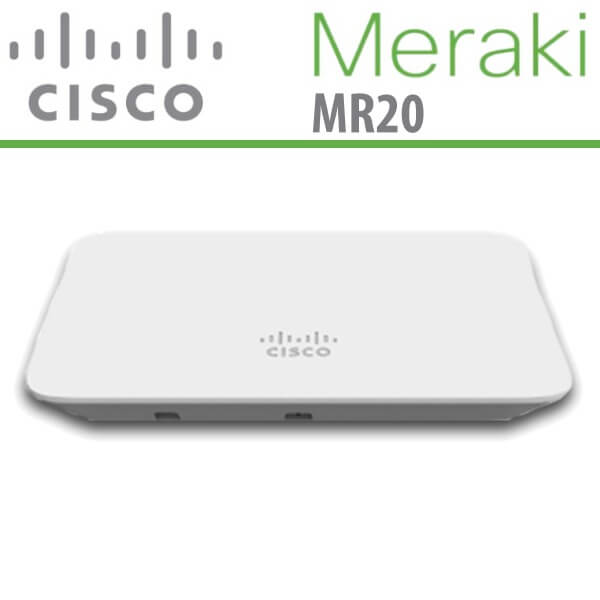

Meraki MR20 Access Point Nigeria

The Meraki MR20 Nigeria is a dual-radio, cloud-managed 2×2 : 2 802.11ac Wave 2 access point with MU-MIMO support. Designed for basic, medium-density deployments, the MR20 provides enterprise grade security and simple management. The MR20 delivers a maximum 1.3 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. The combination of intuitive cloud management, 802.11ac Wave 2 wireless, and enterprise-grade security provide safe, reliable WiFi for small business and home office networks that want basic connectivity. This Cisco Meraki MR20 Nigeria is managed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without training or certifications. Because the access point is monitored 24×7 by the Meraki cloud, the Cisco Meraki MR20 Nigeria can deliver real-time alerts if the network encounters problems, and diagnostic tools enable real-time troubleshooting over the web. The MR20’s firmware is always kept up to date from the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web, meaning no manual software updates to download or missing security patches to worry about.

Features

2×2 MU-MIMO 802.11ac Wave 2
3 Gbps* aggregate dual-band frame rate
Integrated enterprise security and guest access
Built-in WIPS for threat detection and remediation
Application-aware traffic shaping
Self-configuring, plug-and-play deployment
Integrated location analytics and heat map

Multi User Multiple Input Multiple Output (MU-MIMO)

With support for the 802.11ac Wave 2 standard, the Cisco Meraki MR20 Nigeria provides MU-MIMO for more efficient transmission to multiple clients. This increases the total network performance and the improves the end user experience

Integrated enterprise security and guest access

The Meraki-MR20 Nigeria features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors.

Secure wireless environments using Air Marshal

The Cisco Meraki MR20 Nigeria comes equipped with Air Marshal, a built-in wireless intrusion prevention system (WIPS) for threat detection and attack remediation. MR20 access points will scan their environment opportunistically based on user-defined preferences. Alarms and auto-containment of malicious rogue Access Point s are configured via flexible remediation policies, ensuring optimal security and performance in even the most challenging wireless environments.

Application-aware traffic shaping

The Cisco Meraki Nigeria packs an integrated Layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming

Self-configuring, self-optimizing, self-healing

When plugged in, the MR20 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. It self-optimizes, determining the ideal channel, transmit power, and client connection parameters. And it self-heals in the event of a switch or cable failure by meshing with nearby Meraki access points, providing continued gateway

Integrated analytics

Drill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world with built-in location analytics that enables you to view visitor numbers, dwell time, repeat visit rates, and track foot traffic trends.

Specifications

Radios

2.4 GHz 802.11b/g/n/ac client access radio
5 GHz 802.11a/n/ac Wave 2 client access radio

Operating bands

2.412-2.484 GHz
5.150-5.250 GHz (UNII-1)
5.250-5.350 GHZ (UNII-2)
5.470-5.600, 5.660-5.725 GHz (UNII-2e)
5.725-5.825 GHz (UNII-3)

802.11ac and 802.11n Capabilities

2×2 multiple input, multiple output (MIMO) with two spatial streams
Maximal ratio combining (MRC)
Beamforming
20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
Up to 256-QAM on both 2.4 GHz and 5 GHz bands
Packet aggregation

Power

Power over Ethernet : 37-57 V (802.3af compatible)
Alternative 12 V DC input
Power consumption : 11 W max (802.3af)

Power over Ethernet injector and DC adapter sold separately

Mounting

All standard mounting hardware included
Desktop, ceiling, and wall mount capable

Physical Security

Two security screw options included
Kensington lock hard point
Concealed mount plate with anti-tamper cable bay

Environment

Operating temperature : 32 °F to 104 °F (0 °C to 40 °C)
Humidity : 5% to 95% non-condensing

Physical Dimensions

7.95” x 4.88” x 1.02” (202 mm x 124 mm x 25.8 mm), not including deskmount feet or mount plate
Weight : 9.6 oz (272 g)

Antenna

Integrated omni-directional antennae (5.6 dBi gain at 2.4 GHz, 5.3 dBi gain at 5 GHz)

Interfaces

1x 10/100/1000 BASE-T Ethernet (RJ45)
1x DC power connector (5.5 mm x 2.5 mm, center positive

Security

Integrated Layer 7 firewall with mobile device policy management
Real-time WIDS/WIPS with alerting and automatic rogue Access Point containment with Air Marshal
Flexible guest access with device isolation
VLAN tagging (802.1Q) and tunneling with IPSec VPN
PCI compliance reporting
WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
EAccess Point -TLS, EAccess Point -TTLS, EAccess Point -MSCHAccess Point v2, EAccess Point -SIM
TKIP and AES encryption
Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

Quality of Service
