Description

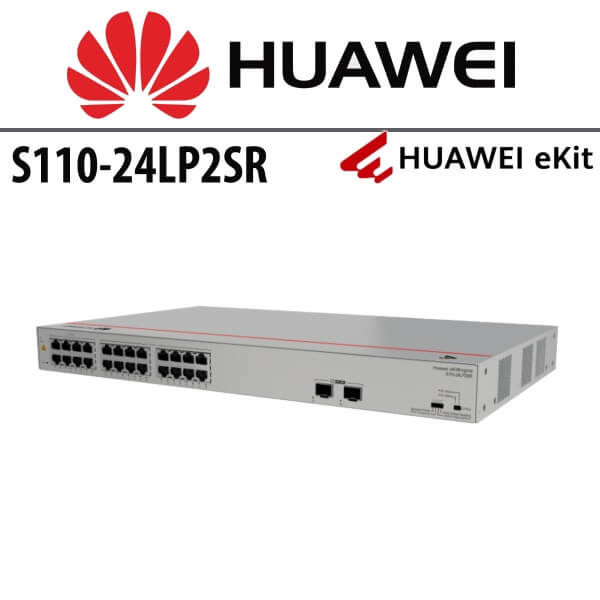

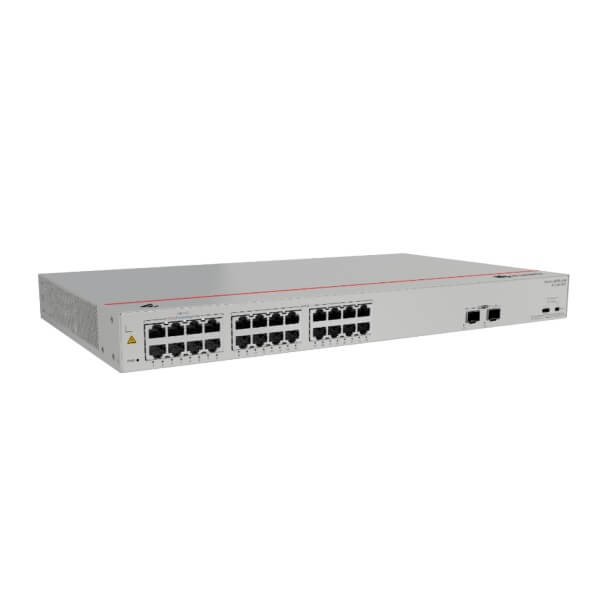

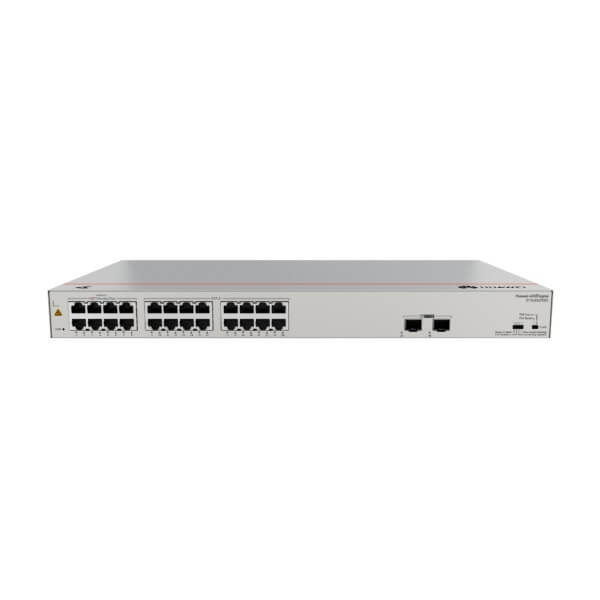

Huawei S110-24LP2SR Network Switch Nigeria
The Huawei S110-24LP2SR Nigeria fixed Ethernet switches are meticulously engineered to integrate access and transmission functionalities within enterprise networks seamlessly. Renowned for their reliable access and superior transmission quality, these switches are an excellent choice for businesses seeking efficient and resilient network solutions. Built on a unified hardware platform, these switches incorporate a comprehensive system that includes the chassis, power module, fan module, and Switch Control Unit (SCU), ensuring a robust and cohesive network infrastructure.
As unmanaged switches, the Huawei S110-24LP2SR Nigeria switches are designed without web-based management interfaces or Simple Network Management Protocol (SNMP) capabilities for remote administration. This deliberate design choice emphasizes simplicity and user-friendliness, making these switches ideal for straightforward network configurations that don’t require complex management. They offer a practical, efficient, and highly reliable solution for enterprises that prioritize easy installation and hassle-free operation. These switches are particularly advantageous for users seeking a dependable network experience without the complications of advanced management features. In summary, the Huawei S110-24LP2SR switches deliver a robust, reliable, and efficient networking solution tailored to meet the needs of modern businesses that value simplicity and effectiveness in their network infrastructure.
Technical Specifications
| Description | S110-24LP2SR (24*10/100/1000BASE-T ports, 2*GE SFP ports, PoE+, AC power) |
| Part Number | 98012198 |
| Model | S110-24LP2SR |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 260.0 mm (1.72 in. x 17.40 in. x 10.24 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 267.0 mm (1.72 in. x 17.40 in. x 10.51 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 3.2 kg (7.05 lb) |
| Weight with packaging [kg(lb)] | 3.7 kg (8.16 lb) |
| Typical power consumption [W] | 24 W |
| Typical heat dissipation [BTU/hour] | 81.89 BTU/hour |
| Maximum power consumption [W] | Without PoE: 24 W
Full PoE load: 165 W (PoE: 124 W) |
| Maximum heat dissipation [BTU/hour] | Without PoE: 81.89
Full PoE load: 563 |
| Static power consumption [W] | 13 W |
| MTBF [years] | 42.92 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 2 x GE SFP ports |
| Downlink ports | 24 x 10/100/1000BASE-T ports (124 W PoE+) |
| Working mode |
|
| MAC address entry | 8K |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Memory | – |
| Flash memory | – |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Supported |
| Certification |
|
