Description

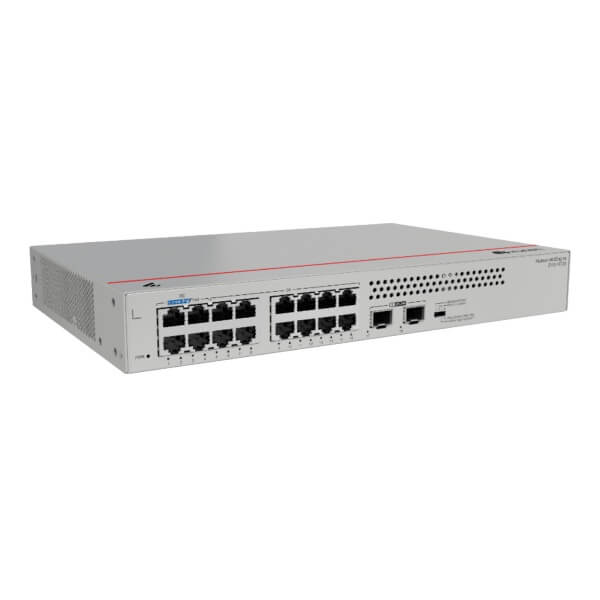

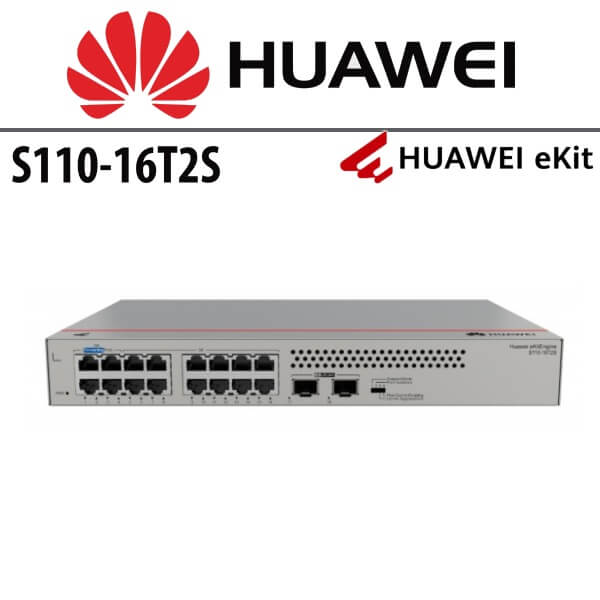

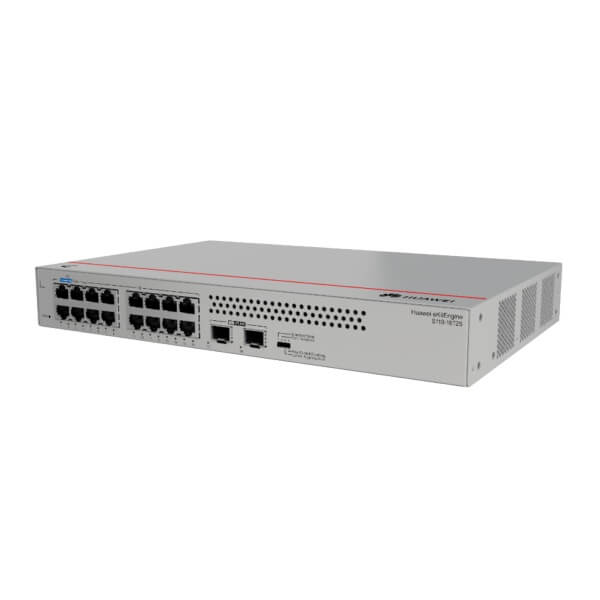

Huawei S110-16T2S Network Switch Nigeria
The Huawei S110-16T2S Nigeria fixed Ethernet switches are meticulously designed to seamlessly blend access and transmission capabilities, offering a robust solution for enterprise networks. These switches not only provide dependable access but also ensure superior transmission quality, crucial for maintaining high-performance services within a network environment. Developed on a unified hardware platform, they come equipped with a comprehensive system that includes essential components such as the chassis, power module, fan module, and Switch Control Unit (SCU).
The Huawei S110-16T2S Nigeria switches are categorized as unmanaged switches, which means they are tailored for environments that prioritize simplicity and ease of use. Unlike managed switches, these devices do not support web-based management interfaces or Simple Network Management Protocol (SNMP) for remote administration. This intentional design choice highlights their suitability for straightforward network configurations that do not require advanced management features. By concentrating on these core functionalities, the Huawei S110-16T2S Nigeria switches offer a practical and efficient solution for enterprises seeking a reliable and uncomplicated network infrastructure, ensuring that essential connectivity needs are met without the complexities of remote management.
Technical Specifications
| Description | S110-16T2S (16*10/100/1000BASE-T ports, 2*GE SFP ports, built-in AC power, fanless) |
| Part Number | 98012200 |
| Model | S110-16T2S |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 460.0 mm x 280.0 mm (3.54 in. x 18.11 in. x 11.02 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.74 kg (3.84 lb) |
| Weight with packaging [kg(lb)] | 2.30 kg (5.07 lb) |
| Typical power consumption [W] | 11.0 W |
| Typical heat dissipation [BTU/hour] | 37.5 BTU/hour |
| Maximum power consumption [W] | 12 W |
| Maximum heat dissipation [BTU/hour] | 40.9 BTU/hour |
| Static power consumption | 3 |
| MTBF [years] | 78.75 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Working mode |
|
| MAC address entry | 8K |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 1 A |
| Memory | – |
| Flash memory | – |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±6 kV |
| Power supply surge protection [kV] | ±2 kV in differential mode, ±4 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Certification |
|
