Description

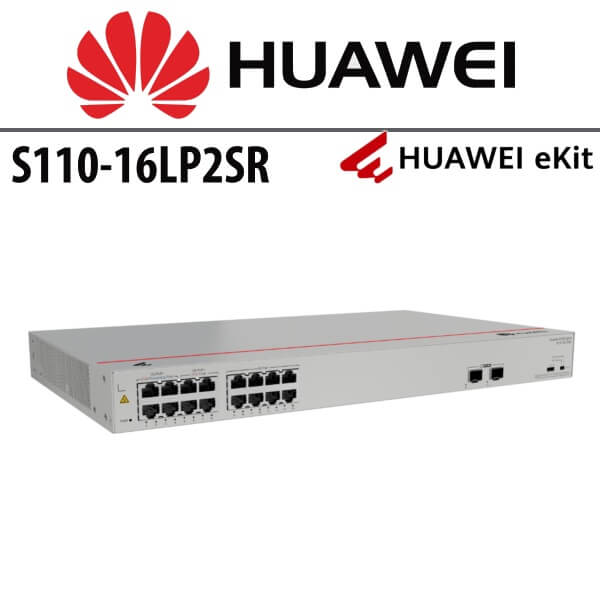

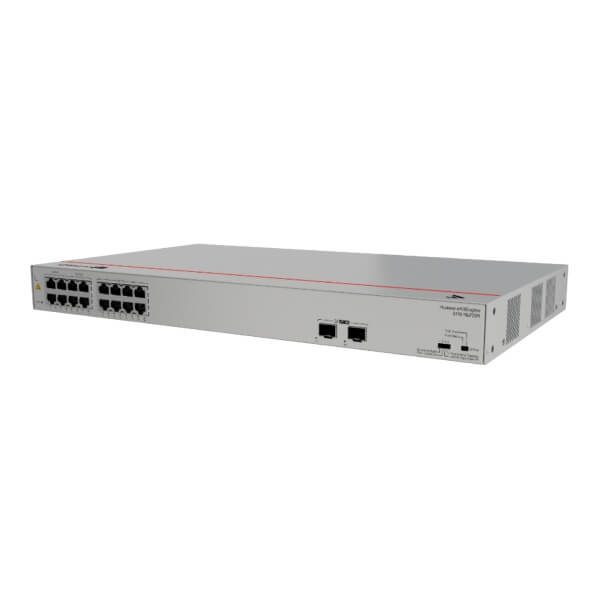

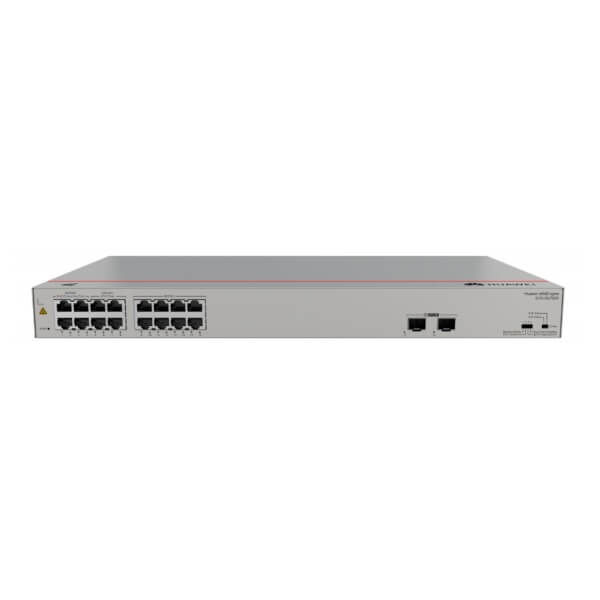

Huawei S110-16LP2SR Network Switch Nigeria
The Huawei S110-16LP2SR Nigeria fixed Ethernet switches are thoughtfully engineered to harmoniously integrate both access and transmission capabilities, ensuring seamless operation within enterprise networks. These switches are specifically crafted to deliver dependable access and high-quality transmission, making them an ideal choice for businesses that demand robust network performance. Built on a unified hardware platform, the Huawei S110-16LP2SR Nigeria switches boast a complete system configuration, which includes the chassis, power module, fan module, and Switch Control Unit (SCU), all working together to provide a cohesive networking solution.
As unmanaged switches, the Huawei S110-16LP2SR Nigeria models are designed with simplicity in mind, lacking web-based management interfaces or Simple Network Management Protocol (SNMP) for remote administration. This deliberate design choice underscores their user-friendly nature, making them well-suited for straightforward network setups that do not require advanced management features. By emphasizing essential functionalities, the Huawei S110-16LP2SR Nigeria switches present a practical, efficient, and reliable solution for enterprises that seek a straightforward, yet effective, network infrastructure. These switches cater to businesses that value ease of installation and operation, offering a hassle-free experience for users who do not need or want the complexities of more advanced management capabilities.
Technical Specifications
| Description | S110-16LP2SR (16*10/100/1000BASE-T ports, 2*GE SFP ports, PoE+, AC power) |
| Part Number | 98012197 |
| Model | S110-16LP2SR |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 260.0 mm (1.72 in. x 17.40 in. x 10.24 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 267.0 mm (1.72 in. x 17.40 in. x 10.51 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 3.0 kg (6.61 lb) |
| Weight with packaging [kg(lb)] | 3.7 kg (8.16 lb) |
| Typical power consumption [W] | 22.0 W |
| Typical heat dissipation [BTU/hour] | 75.07 BTU/hour |
| Maximum power consumption [W] | Without PoE: 22.0 W
Full PoE load: 160.0 W (PoE: 124 W) |
| Maximum heat dissipation [BTU/hour] | Without PoE: 75.07
Full PoE load: 545.94 |
| Static power consumption [W] | 12.0 W |
| MTBF [years] | 57.77 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 2 x GE SFP ports |
| Downlink ports | 16 x 10/100/1000BASE-T ports (124 W PoE+) |
| Working mode |
|
| MAC address entry | 8K |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Memory | – |
| Flash memory | – |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Supported |
| Certification |
|
