Description

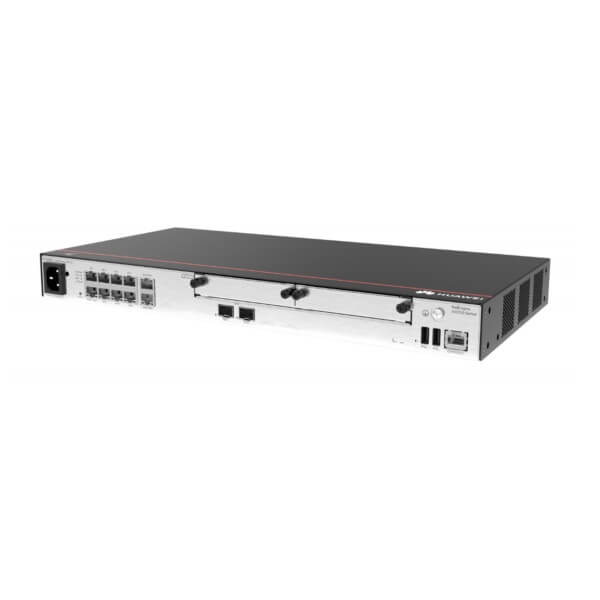

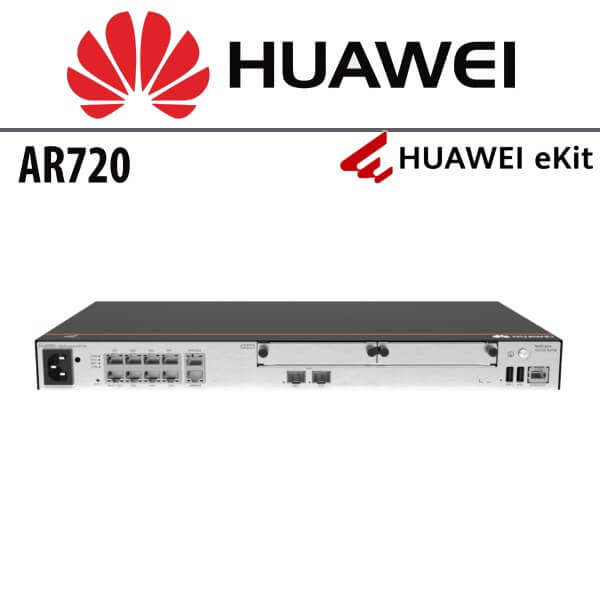

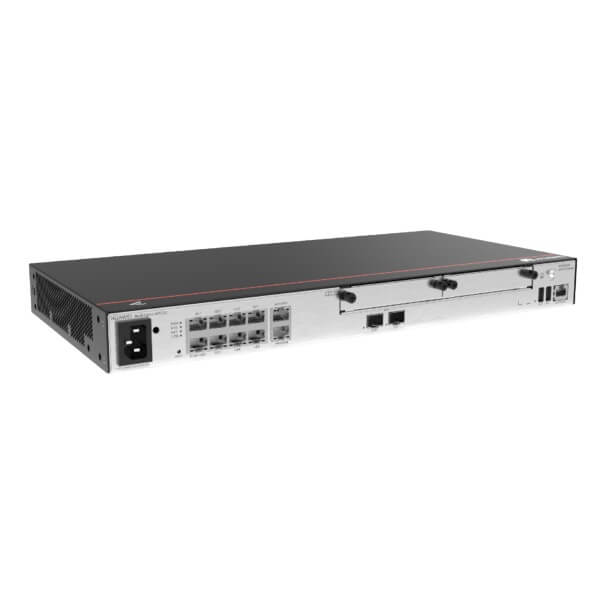

Huawei AR720 Enterprise Router Nigeria
The Huawei AR720 Nigeria routers stand as a cutting-edge solution in the realm of high-performance networking devices. These advanced routers are driven by powerful ARM-based multi-core processors and boast a non-blocking switching architecture, which significantly enhances their efficiency, offering performance levels that exceed the industry average by a substantial margin.
In addition to their remarkable speed, the AR720 routers are packed with an extensive range of integrated functionalities designed to meet diverse networking needs. These functionalities include 5G connectivity, advanced routing and switching capabilities, robust VPN support, comprehensive security features, and MPLS technology. Together, these features create a versatile and powerful networking solution that is well-suited for a wide array of enterprise services in the cloud era. The Huawei AR720 Nigeria routers are ideally equipped to cater to the dynamic and ever-evolving demands of modern businesses, providing a reliable foundation for their networking infrastructure.
Features and Benefits
| Architechture | Benefits |
| Multi-core processor | High-performance multi-core processor, supporting high-speed WAN connections, providing powerful route computing capabilities, and improving L4–L7 service processing efficiency. |
| Non-blocking switching architecture | Maximum bus bandwidth of a single slot: 10 Gbit/s, eliminating service forwarding bottlenecks |
| Extensive network ports |
|
Technical Specifications
| Description | AR720, 2*GE combo WAN, 8*GE LAN, 2*USB 2.0, 2*SIC |
| Part Number | 02354GBG-001 |
| Model | AR720 |
| First supported version | V300R022C00 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 390 mm x 570 mm (3.54 in. x 15.35 in. x 22.44 in.) |
| Weight with packaging [kg(lb)] | 4.6 kg (10.12 lb) |
| Weight without packaging [kg(lb)] | 3.2 kg (7.04 lb) |
| CPU | 1.4 GHz, 4 Cores |
| Memory | 4 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| LAN ports | 8 x GE electrical interfaces |
| WAN ports | 2 x GE combo |
| Number of service board slots | 2 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 2/2 |
| WSIC slots (default/maximum) | 0/1 |
| XSIC slots (default/maximum) | 0/0 |
| Redundant MPUs | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 30.05 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999924012 |
| Typical power consumption [W] | 28 W |
| Maximum power consumption [W] | 33 W |
| Power supply mode | AC built-in |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 A |
| Maximum output power [W] | 70 W |
| Redundant power supply | Not supported |
| Type of fans | Built-in |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 52.3 dB(A) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F)
NOTE: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
| Environmental standards compliance |
|
