Description

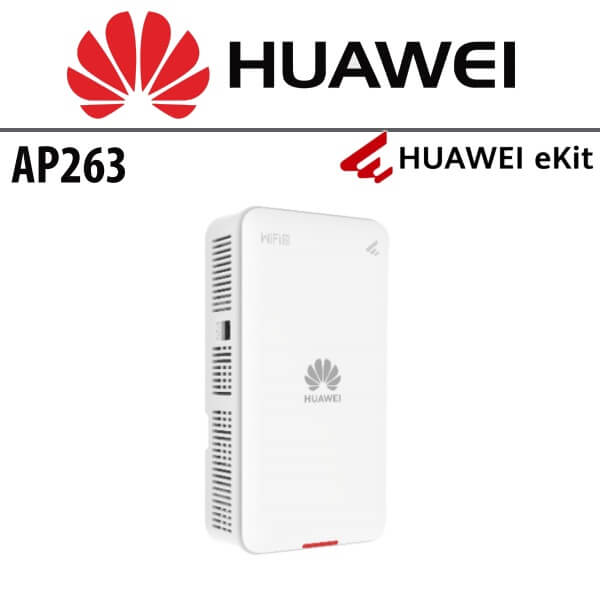

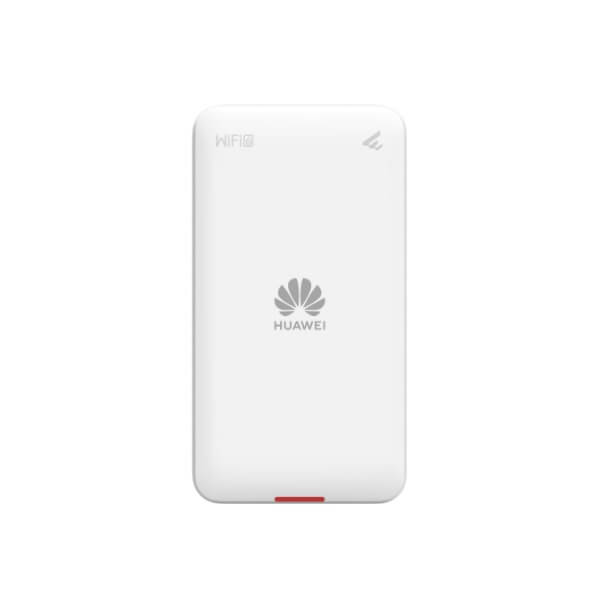

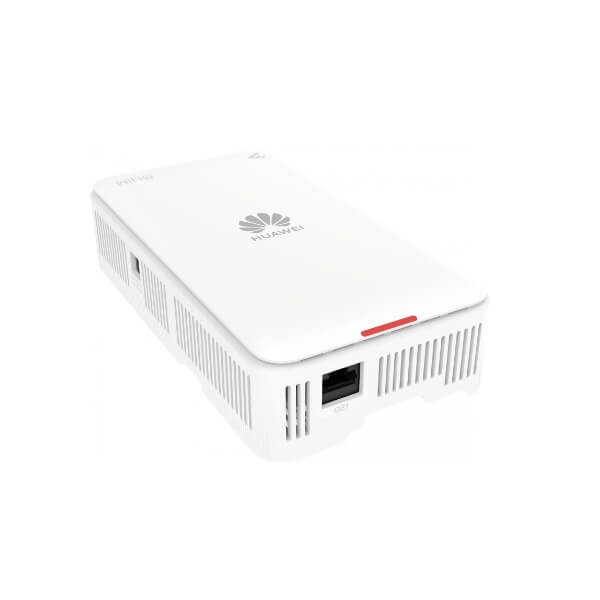

Huawei AP263 Access Point Nigeria
The Huawei AP263 Nigeria is a state-of-the-art Wi-Fi 6 (802.11ax) wall plate access point developed by Huawei, engineered to deliver superior wireless performance. This advanced access point is distinguished by its remarkable high bandwidth and the ability to manage a high number of concurrent connections seamlessly, making it an excellent choice for environments requiring the simultaneous support of numerous devices without any loss in performance.
Its compact and modern design allows for flexible and discreet installation, ensuring that it blends effortlessly into any setting while optimizing space utilization. This thoughtful design not only enhances the aesthetics of the environment but also provides substantial cost savings for customers. The Huawei AP263 Nigeria is especially beneficial for indoor coverage in the small and medium-sized enterprise (SME) market, offering robust and reliable wireless connectivity. It is perfectly suited for a variety of indoor settings, including SMB offices, hospitals, and cafes, where dependable and efficient wireless networks are critical for daily operations.
Features
- Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands
- Uplink: 1 x GE electrical port; downlink: 1 x GE electrical port
- Various installation modes for easy deployment, including wall-mounting and plate-mounting
- Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality
- USB port for external IoT expansion (supporting protocols such as ZigBee, and RFID)
- Bluetooth serial interface-based O&M through built-in Bluetooth by collaborating with CloudCampus APP
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP263(11ax indoor,2+2 dual bands,smart antenna,USB,BLE) |
| Part Number | 50084981 |
| Model | AP263 |
| First supported version | V200R021C01 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.) |
| Weight without packaging [kg(lb)] | 0.320 kg (0.705 lb) |
| Weight with packaging [kg(lb)] | 0.542 kg (1.195 lb) |
| Storage | NAND Flash 256 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 12 W |
| Maximum heat dissipation [BTU/hour] | 41 BTU/hour |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | 12±10%
PoE: 802.3at/af |
| Service port surge protection | PoE port:
Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | USB 2.0 (supporting 5 W power supply) |
| BLE | BLE5.0 |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2×2
Radio 1 (5 GHz): 2×2 |
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G:
5G:
|
| Maximum transmit power | 2.4G:
5G:
|
| Singal radio transmit power [dBm] |
|
| MTBF [year] | 69.7 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | The USB function is unavailable. |
| DC power supply description | No function is limited. |
