Description

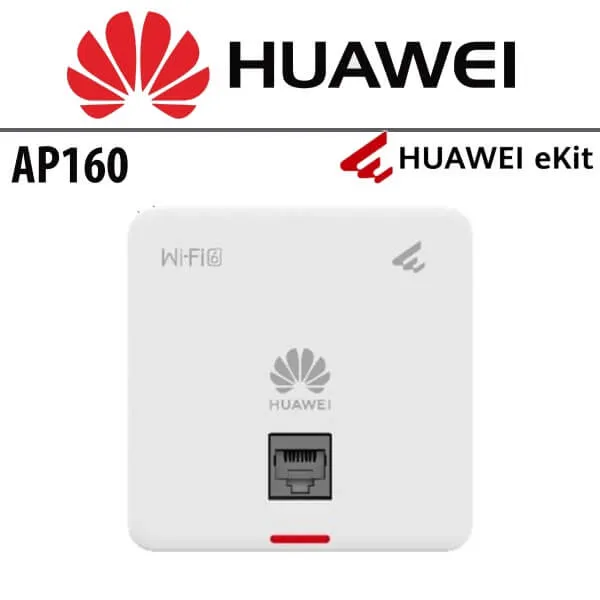

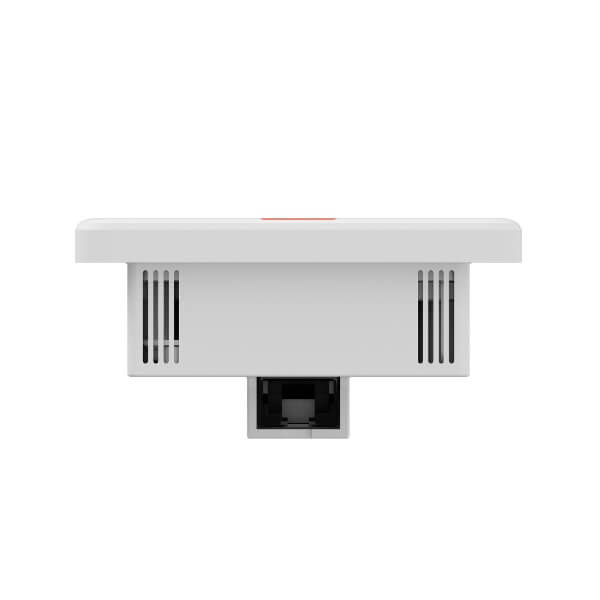

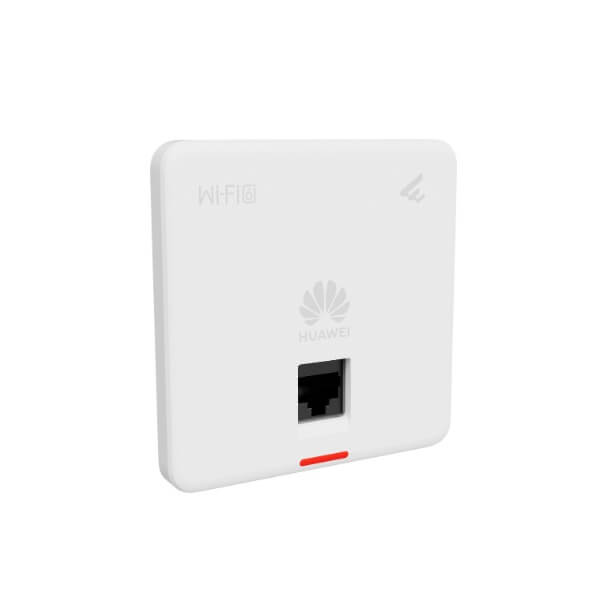

Huawei AP160 Access Point Nigeria
The Huawei AP160 Nigeria is an advanced Wi-Fi 6 (802.11ax) wall plate access point engineered to deliver high-speed and dependable wireless connectivity. This state-of-the-art device operates on both the 2.4 GHz (2×2) and 5 GHz (2×2) frequency bands concurrently, ensuring that it provides optimal performance for a wide range of connected devices.
The Huawei AP160 Nigeria is equipped with high bandwidth capabilities and supports a large number of concurrent connections, making it an excellent choice for environments with heavy network traffic, such as small to medium-sized offices, residential homes, and hotels. Its sleek, compact design not only allows for flexible and discreet deployment but also contributes to reducing customer investment costs.
In indoor coverage scenarios, the Huawei AP160 Nigeria excels in delivering strong and consistent Wi-Fi coverage, making it an ideal solution for enhancing wireless networks in business settings, or ensuring smooth and uninterrupted internet access in residential and hospitality environments. This access point is perfect for those seeking to improve their wireless infrastructure with reliable and high-performing technology.
Features
- Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands
- Uplink: 1 x GE electrical port; downlink: 1 x GE electrical port
- Standard dimensions of 86 mm x 86 mm, allowing for junction box (86 mm) mounting and facilitating deployment
- Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP160(11ax indoor,2+2 dual bands,smart antenna) |
| Part Number | 50086816 |
| Model | AP160 |
| First supported version | V200R023C00 |
| Installation Type | Junction Box |
| Dimensions without packaging (H x W x D) [mm(in.)] | 86 mm x 86 mm x 42.5 mm (3.39 in. x 3.39 in. x 1.67 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 98 mm x 117 mm x 73 mm (3.86 in. x 4.61 in. x 2.87 in.) |
| Weight without packaging [kg(lb)] | 0.14 kg (0.31 lb) |
| Weight with packaging [kg(lb)] | 0.24 kg (0.53 lb) |
| Storage | NAND Flash 256 MB |
| Console port | None |
| Maximum power consumption [W] | 9.1 W |
| Maximum heat dissipation [BTU/hour] | 29.5 BTU/hour |
| Power supply mode | PoE |
| Input voltage range [V] | PoE: 802.3af |
| Service port surge protection | PoE port:
|
| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| BLE | Not supported |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2 |
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz:
5 GHz:
|
| Maximum transmit power | 2.4G:
5G:
|
| Singal radio transmit power [dBm] |
|
| MTBF [year] | 446 year |
| MTTR [hour] | 2 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | No function is limited. |
| DC power supply description | Not supported |
