Description

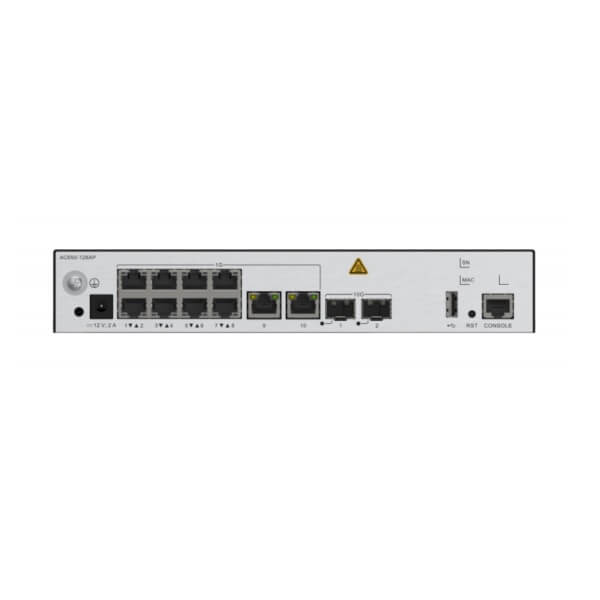

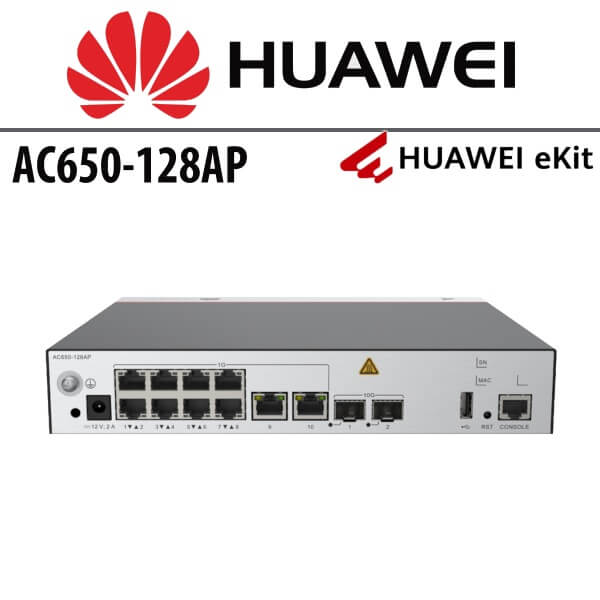

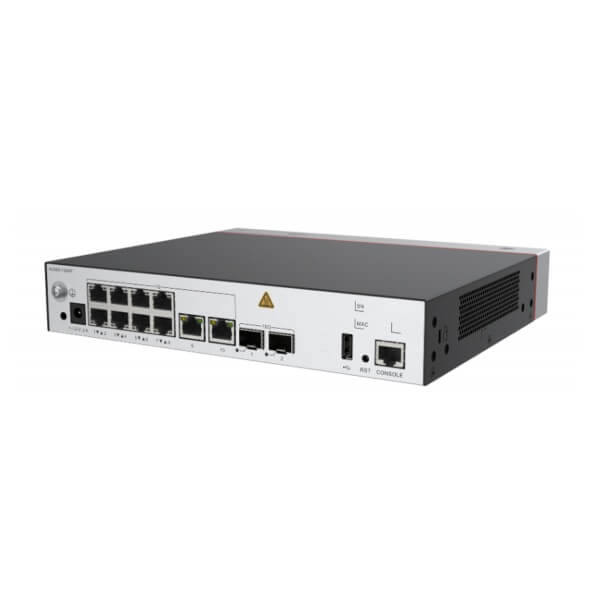

Huawei AC650-128AP Wireless Access Controller Nigeria
The Huawei AC650-128AP Nigeria is an advanced wireless access controller (AC) designed by Huawei to meet the specific needs of small and medium-sized enterprise (SME) networks. This device integrates effortlessly with Huawei access points (APs) to build strong and reliable wireless networks, making it an excellent choice for various settings such as small campus networks, office networks for smaller enterprises, and large hotspot coverage areas. It is capable of managing up to 128 access points and can support up to 2048 simultaneous Station Access Points (STAs), providing dependable and efficient network connectivity for a multitude of devices. This makes the Huawei AC650-128AP Nigeria an ideal solution for SMEs seeking to establish or upgrade their wireless networking infrastructure.
Technical Specifications
| Description | AC650-128AP mainframe (10*GE ports, 2*10GE SFP+ ports, with the AC/DC adapter) |
| Part Number | 02355NCG |
| Model | AC650-128AP |
| First supported version | V200R022C10 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.)
Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.) |
| Weight without packaging [kg(lb)] | 1.9kg |
| Storage | Nand FLASH 1GB |
| Console port | RJ45 |
| Maximum power consumption [W] | 23.58 W |
| Maximum heat dissipation [BTU/hour] | 80.45 BTU/hour |
| Power supply mode | DC adapter |
| Service port surge protection | 6 kV in common mode |
| Types of fans | None |
| Maximum number of physical ports on the entire device | 2 x 10GE (SFP+) + 10 x GE (RJ45) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | Ground |
| USB | 1 x USB 2.0 (host type A) port |
| MTBF [year] | 50 year |
| MTTR [hour] | 2 hour |
