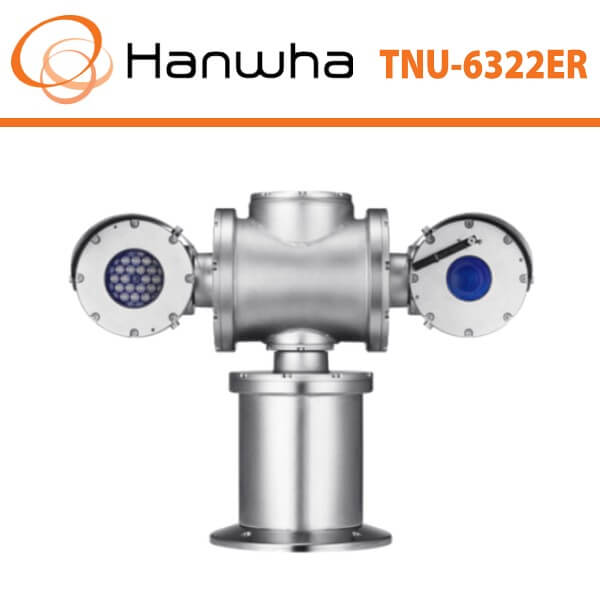

Hanwha TNU6322ER Explosion Proof CCTV Camera
The Hanwha TNU6322ER explosion-proof CCTV camera (formerly known as Samsung CCTV) is an advanced industrial surveillance solution designed for the most hazardous and high-risk environments. Engineered to deliver superior performance in volatile areas, this high-definition camera features a rugged, certified explosion-proof construction, making it ideal for monitoring oil refineries, chemical processing plants, mining operations, and other critical infrastructures where safety and reliability are paramount.
With a full HD 2MP (1920×1080) image sensor, the Hanwha TNU6322ER delivers crystal-clear video footage essential for accurate surveillance and detailed incident review. Its motorized varifocal lens (4.44–142.6mm) allows flexible monitoring options, from wide-area coverage to pinpoint focus, ensuring nothing escapes detection even in expansive or complex environments. This level of clarity and adaptability makes it a top choice for industrial-grade video monitoring systems.
One of the standout features of the TNU6322ER is its explosion-proof housing, which is fully certified to operate safely in environments where flammable gases, liquids, or combustible dust may be present. The camera meets international explosion-proof standards, making it a trusted solution for hazardous zones that demand both performance and compliance with stringent safety regulations.
Equipped with built-in infrared (IR) LEDs, the Hanwha TNU6322ER offers exceptional night vision capabilities with an IR range of up to 30 meters. This ensures uninterrupted surveillance during nighttime or in areas with poor lighting. The camera’s powerful night vision plays a crucial role in maintaining security around the clock, especially in locations where visibility can’t be guaranteed.
Designed to endure tough conditions, the TNU6322ER features an IP66-rated weatherproof and IK10 vandal-resistant enclosure. It stands up against dust, water, harsh weather, and physical impact, delivering reliable performance year-round in even the most demanding settings. This robust construction ensures long-term durability and minimizes maintenance requirements.
The TNU6322ER is more than just hardware—it integrates intelligent video analytics for proactive security monitoring. Features such as motion detection, tampering detection, virtual line crossing, and audio detection empower security teams with real-time alerts and advanced threat detection. These smart functions enhance situational awareness and allow for quicker response times in the event of unusual activity or potential security breaches.
To support efficient data management, the Hanwha TNU6322ER utilizes H.265 video compression technology, which significantly reduces file sizes while maintaining exceptional video quality. This feature extends storage capacity and lowers bandwidth usage, making it a cost-effective choice for organizations with extensive surveillance needs or remote storage setups.
Installation is simplified thanks to Power over Ethernet (PoE) support, which reduces cabling requirements and installation time. Moreover, the camera is fully compatible with leading video management systems (VMS), ensuring seamless integration with existing infrastructure and enhancing operational efficiency across the surveillance network.
In summary, the Hanwha TNU6322ER explosion-proof camera offers an all-in-one solution for high-security surveillance in hazardous environments. Its combination of HD video, explosion-proof certification, advanced analytics, night vision, and rugged build makes it the ideal choice for industries where safety, performance, and compliance are non-negotiable. For facilities seeking a reliable, future-ready surveillance system, the TNU6322ER stands out as a best-in-class option for industrial and critical infrastructure security.
Key Specifications:
- 2MP (1920×1080) resolution
- Certified explosion-proof design
- Motorized varifocal lens (4.44~142.6mm)
- IR illumination (night vision up to 30m)
- IP66 weatherproof and IK10 vandal-resistant
- H.265/H.264 compression
- Advanced analytics (motion, tampering, line crossing)
- PoE support
Specifications:
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele) |
| Min. Object Distance | Wide 1.5m, Tele 2m |
| Focus Control | Oneshot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360˚ Endless |
| Pan Speed | 0.5˚/sec ~80˚/sec |
| Tilt Range | 180˚(-90˚ ~90˚ ) |
| Tilt Speed | 0.1˚/sec ~60˚/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.25˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1~1/12,000sec) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail NAS recording at event triggers Alarm output PTZ Preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 200m |
| Water Removal | Support (with Wiper) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F ~ +140°F) / Less than 95% RH |
| Certification | IECEx, ATEX, KCs, KC, CE IP67, IK10, PESO certified |
| Input Voltage | 24VAC |
| Power Consumption | 24VAC: Max. 99W (Camera) 24VAC: Max. 50W (IR) |
| Mechanical | |
| Color / Material | Metalic Silver / Stainless 316L |
| Product Dimensions / Weight | 611(W)x438(H)x235(D)mm(24.06×17.24×9.25″), 36kg(79.37lb) |
