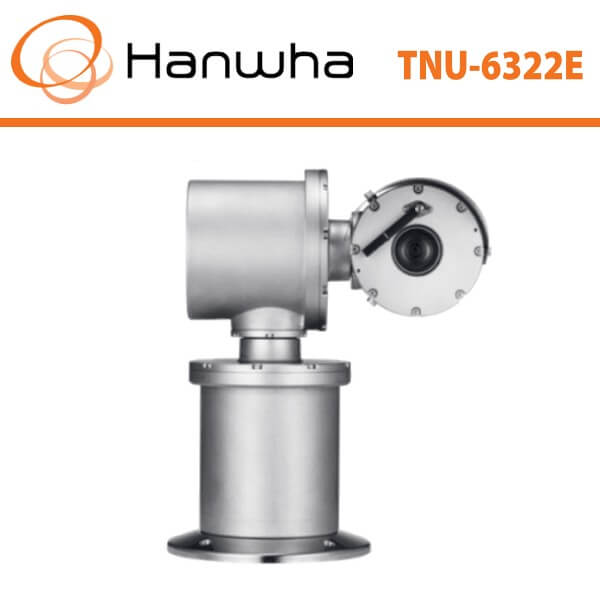

Hanwha TNU6322E Explosion Proof CCTV Camera
The Hanwha TNU6322E Explosion-Proof CCTV Camera, previously known under the Samsung brand, is purpose-built to deliver high-performance video surveillance in dangerous and explosive environments. Designed for industries such as oil and gas, chemical processing, and manufacturing, this rugged camera offers reliable, safe, and efficient monitoring in areas prone to flammable gases, combustible dust, or hazardous chemicals. With a robust construction and advanced imaging capabilities, the TNU6322E provides top-tier protection where it’s needed most.
Equipped with a 2-megapixel full HD sensor (1920×1080 resolution), the Hanwha TNU6322E captures crystal-clear, high-definition footage that enhances visibility and detail in every frame. The integrated motorized varifocal lens allows operators to dynamically adjust the field of view, enabling seamless transitions from wide-angle coverage to close-up inspection of critical zones. This versatility makes it ideal for large-scale industrial surveillance systems that demand both detail and flexibility.
What truly sets the TNU6322E apart is its explosion-proof housing, meticulously engineered to comply with international safety standards for operations in explosive and high-risk environments. Whether it’s installed in a chemical plant, refinery, or offshore drilling site, the camera’s durable enclosure ensures it performs safely even in the presence of volatile substances, providing peace of mind in mission-critical scenarios.
Night-time surveillance is no challenge for the TNU6322E. With powerful infrared (IR) illuminators, this camera offers exceptional night vision performance, allowing it to capture clear, detailed images in complete darkness. Security teams can depend on it for 24/7 monitoring, regardless of lighting conditions, ensuring consistent visibility of assets and operations.
Designed for resilience, the Hanwha TNU6322E boasts IP66-rated weatherproofing and IK10-rated vandal resistance, making it capable of withstanding extreme weather, dust, heavy rain, and physical impact. Whether deployed outdoors in freezing temperatures or installed in harsh industrial interiors, this camera continues to operate flawlessly, delivering uninterrupted security monitoring year-round.
Advanced intelligent video analytics elevate the TNU6322E’s performance by enabling proactive threat detection. Features such as motion detection, tampering alerts, and virtual line crossing provide real-time notifications, empowering security personnel to respond quickly to potential intrusions or safety breaches. This intelligent technology is critical for enhancing situational awareness and reducing response times in high-risk zones.
The Hanwha TNU6322E also integrates H.265 video compression technology, which significantly reduces bandwidth and storage requirements without compromising video quality. This advanced compression allows businesses to retain high-resolution footage over longer periods while optimizing storage infrastructure, resulting in reduced operational costs and efficient data management.
Installation is straightforward with Power over Ethernet (PoE) support, simplifying cabling and minimizing setup time. The TNU6322E is also compatible with leading video management systems (VMS), ensuring seamless integration into existing security networks. Its flexible connectivity and system compatibility make it a future-proof solution for expanding surveillance operations.
The Hanwha TNU6322E Explosion-Proof CCTV Camera is an exceptional choice for businesses that require reliable and high-quality surveillance in hazardous environments. Its combination of explosion-proof design, high-resolution imaging, intelligent analytics, rugged durability, and efficient video compression makes it one of the most versatile and dependable industrial CCTV solutions on the market.
Key Specifications:
- 2MP (1920×1080) resolution
- Explosion-proof design for hazardous environments
- Motorized varifocal lens
- Advanced IR night vision
- IP66 weatherproof and IK10 vandal-resistant
- Intelligent analytics (motion, tampering, virtual line crossing)
- H.265/H.264 compression
- PoE support
Specifications:
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele) |
| Min. Object Distance | Wide 1.5m, Tele 2m |
| Focus Control | Oneshot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360˚ Endless |
| Pan Speed | 0.5˚/sec ~80˚/sec |
| Tilt Range | 180˚(-90˚ ~90˚ ) |
| Tilt Speed | 0.1˚/sec ~60˚/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.25˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1~1/12,000sec) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail NAS recording at event triggers Alarm output PTZ Preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Water Removal | Support (with Wiper) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F ~ +140°F) / Less than 95% RH |
| Certification | IECEx, ATEX, KCs, KC, CE IP67, IK10, PESO certified |
| Input Voltage | 24VAC |
| Power Consumption | 24VAC: Max. 99W |
| Mechanical | |
| Color / Material | Metalic Silver / Stainless 316L |
| Product Dimensions / Weight | 355(W)x427(H)x235(D)mm(13.97×16.81×9.25″), 25kg(55.12lb) |
