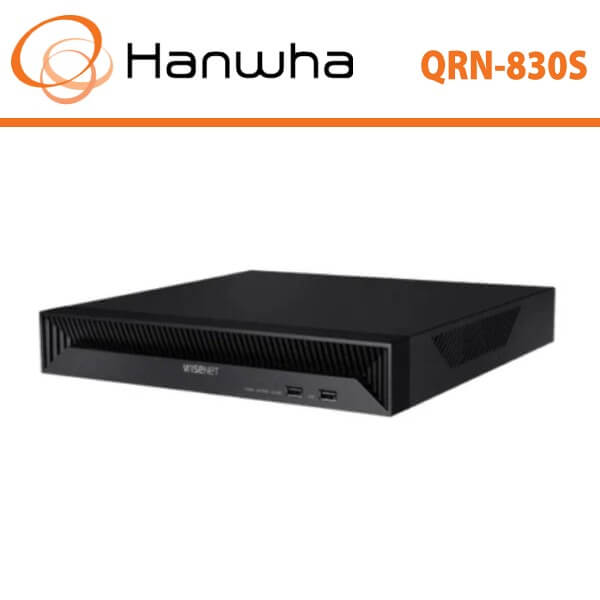

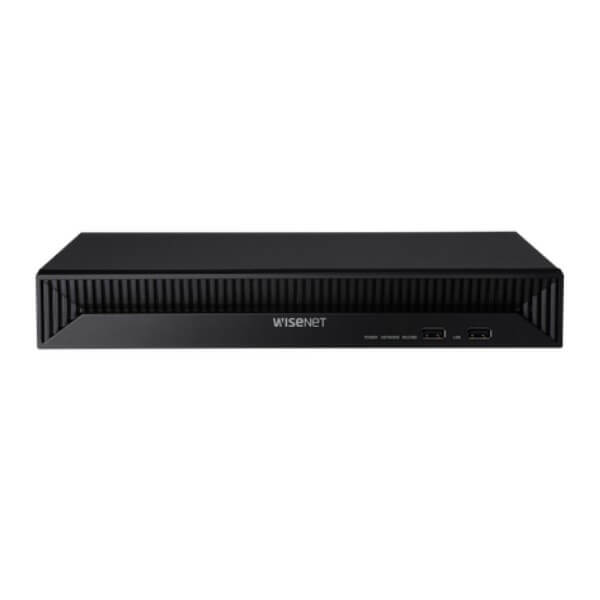

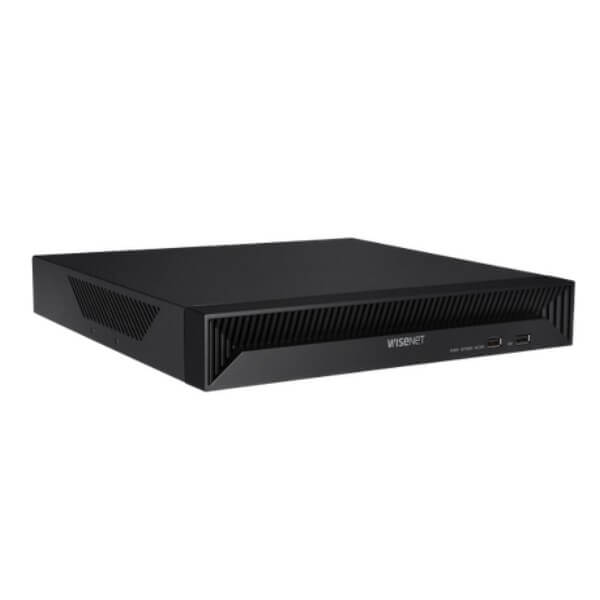

Hanwha QRN830S CCTV Network Video Recorder

Rating

Hanwha QRN830S

The Hanwha QRN830S CCTV Network Video Recorder, formerly known under the Samsung CCTV brand, is a powerful and reliable solution for small to medium-sized surveillance systems.

Description

Hanwha QRN830S CCTV Network Video Recorder

The Hanwha QRN830S CCTV Network Video Recorder, formerly known under the Samsung CCTV brand, is a powerful and reliable solution for small to medium-sized surveillance systems. Designed with seamless integration and ease of use in mind, the QRN830S is the perfect fit for both business and residential security environments that require consistent, high-quality video management. Its intuitive setup and advanced features make it a go-to option for users who prioritize efficiency, security, and ease of operation.

One of the standout features of the Hanwha QRN830S is its support for ultra-high-resolution video recording, up to 8 megapixels. This ensures that every frame captured is rich in detail and clarity, making it easier to identify people, vehicles, or incidents accurately. Whether used in a commercial office, retail store, or home environment, the high-definition recording capabilities of the QRN830S provide the level of precision necessary for effective surveillance and peace of mind.

To maximize storage capacity and optimize system performance, the QRN830S utilizes advanced H.265 video compression technology. This next-generation compression standard significantly reduces bandwidth consumption and extends recording time, all while maintaining excellent video quality. It’s an ideal solution for users who require continuous monitoring and efficient data management without compromising on image fidelity.

Installation is made quick and cost-effective thanks to the QRN830S’s built-in Power over Ethernet (PoE) support. With PoE, both power and data are delivered over a single Ethernet cable to connected cameras, simplifying the cabling infrastructure and reducing setup time. This feature is especially beneficial for installers and IT administrators looking for streamlined deployment with minimal disruption and cost.

Security is further enhanced through the Hanwha QRN830S’s intelligent analytics features, including motion detection, tampering alerts, and remote monitoring. These real-time tools help security personnel respond quickly to potential threats, increasing the overall effectiveness of the surveillance system. By leveraging smart analytics, users can monitor activity more efficiently and ensure a faster reaction to incidents as they occur.

For display flexibility, the QRN830S supports both HDMI and VGA video outputs, making it compatible with a wide range of monitors and display configurations. This allows users to manage live footage, review recorded video, and adjust system settings with ease, ensuring a user-friendly experience across different operating environments.

The Hanwha QRN830S Network Video Recorder delivers a comprehensive surveillance solution with high-resolution video, efficient storage capabilities, simplified installation, intelligent analytics, and flexible display options. Optimized for small to mid-sized security systems, the QRN830S is a reliable and cost-effective choice for anyone seeking to elevate their security infrastructure with a trusted and feature-rich NVR system.

Key Specifications:

  • 8-channel recording capability
  • Supports camera resolutions up to 8MP (4K)
  • H.265/H.264 compression
  • HDMI/VGA video outputs
  • Built-in PoE ports for easy installation
  • Advanced analytics (motion detection, tampering)
  • Supports up to 2 HDD slots (6TB each)
  • User-friendly remote management interface

Specifications

Display
Network camera
Inputs Max. 8CH
Resolution 8MP ~ CIF
Protocols SUNAPI, ONVIF
Decoding
Local Display HDMI :3840×2160(30Hz)
Multi Screen Display [Single Monitor] Dynamic layout
[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
Resolution [Local Monitor]
8M(60fps), 1080p(240fps), 720P(240fps), D1(240fps)
Performance
Operating System
Embedded Linux
Record
Compression H.265, H.264, MJPEG
Recording Bandwidth Max. 80Mbps
Resolution 8MP ~ CIF
Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP,
SUNAPI Command, Shutdown
Search & Play
Playback Bandwidth Max. 32Mbps
User Max. 4 Users (Local 1, Remote 3)
Simultaneous playback Max. 32CH(Local 8CH, Remote 8CH per user)
Fisheye Dewarping CMS
Mode Date & Time(Calendar), Event list, Text Search, Smart Search
Resolution CIF ~ 8MP
Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
Storage
Supported HDD Up to 6TB
HDD Slot SATA 1ea(Max. 6TB)
Backup
File backup BU/Exe/AVI(GUI), JPG/AVI(Network)
Function Multi channel(Up to 8CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS Hanwha DDNS
Transmission Bandwidth Max. 80Mbps
Audio
GUI 8 CH(network)
Web G.711, G.726, AAC(16/48KHz)
Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption
Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer
Supported OS Windows 10, macOS 11
Supported browser Google Chrome, Microsoft Edge, Mac Safari
Viewer Software WAVE, SSM, Webviewer, Smart Viewer, Wisenet Viewer, Wisenet mobile
Support CGI(SUNAPI) for integration to 3’rd party VMS
Functions
Camera Setup
Register Auto, Manual
Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon)
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
Control Via GUI, Webviewer
Preset 300 Presets
Smart phone
Support Model iOS, Android
Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Control Live: Multi-Profile Support,
Multi Channel Playback
Max. Remote Users Search(3), Live Unicast(10)
Redundancy
Failover N+1
ARB Support
Easy configuration P2P(QR code)
Interface
Front
Indicator Power, Record, Network
Storage OK
Reset Support
HDMI 1EA
Ethernet PoE+ RJ-45 8EA (LAN, 10/100), RJ-45 1ea (LAN/WAN 1Gbps)
USB 2EA(Front 2 x USB 2.0)
Power inlet DC Adaptor
System
Log
Log List Max. 100,000 (System Log, Event Log each)
System Control Mouse, Keyboard, Web
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature 0°C to +40°C(32℉ to 104℉)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input 54VDC / 1.55A
Power Consumption Max 84W (287 BTU with 1HDD, PoE ON)
PoE Budget 65W
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) 300 x 47.6 x 238.9 mm (11.8 x 1.9 x 9.4 inch)
Weight 1.32Kg (2.91 lb)
