Description

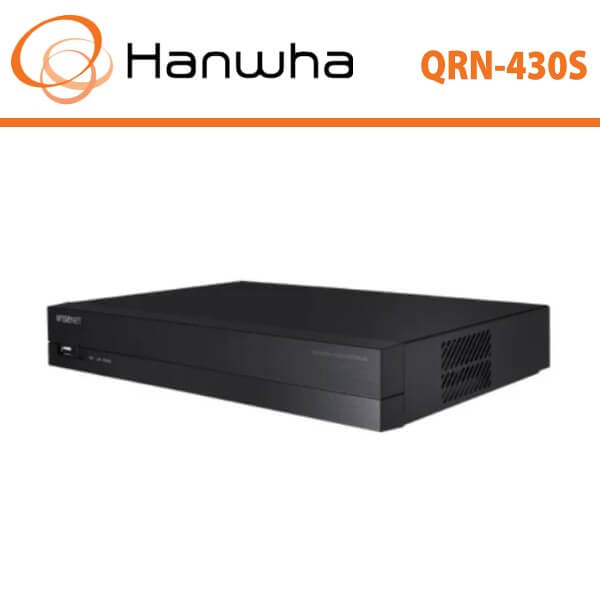

Hanwha QRN430S CCTV Network Video Recorder
The Hanwha QRN430S Network Video Recorder (NVR), formerly known under the Samsung CCTV brand, offers a high-performance, user-friendly surveillance solution tailored for residential, retail, and small business security applications. Designed for seamless integration and reliable operation, this advanced 4-channel NVR combines crystal-clear video quality, smart analytics, and efficient storage into one compact system.
Delivering ultra-high-definition video recording, the Hanwha QRN430S supports up to 8MP (4K) resolution, providing sharp, detailed footage that is essential for precise surveillance and post-event analysis. This clarity enhances the ability to monitor activity closely, recognize faces, detect objects, and maintain situational awareness in both indoor and outdoor environments.
One of the standout features of the QRN430S is its use of H.265 video compression technology. This next-generation format significantly reduces file sizes and bandwidth requirements while preserving image quality. As a result, users benefit from longer recording times without the need for excessive storage capacity—making it a cost-effective option for small setups with limited storage resources.
Installation is quick and efficient thanks to the QRN430S’s built-in Power over Ethernet (PoE) ports, which allow power and data to be delivered through a single cable. This simplifies cabling infrastructure and minimizes installation costs. Additionally, the intuitive graphical user interface makes live viewing, playback, and system management effortless—even for users with limited technical expertise.
Security is further strengthened with intelligent video analytics built into the Hanwha QRN430S. Features such as motion detection, tampering alerts, and real-time event notifications empower users to respond quickly to suspicious activity or security breaches. These proactive capabilities make the system highly responsive and dependable for around-the-clock surveillance.
Versatility is another strong point of the QRN430S, as it offers support for both HDMI and VGA outputs, allowing easy connection to a wide range of monitors and display systems. Whether in a home office, retail store, or small commercial space, users can configure their viewing setup to match their environment and security needs.
In terms of storage, the Hanwha QRN430S supports one HDD slot with up to 6TB capacity, providing ample space for continuous video recording. This ensures that critical surveillance footage is securely stored and easily accessible for review, compliance, or evidence collection over extended periods.
The Hanwha QRN430S 4-Channel NVR is an ideal solution for users seeking a dependable, high-quality, and easy-to-use surveillance system. With its 4K recording capability, efficient H.265 compression, PoE support, intelligent analytics, and flexible storage, the QRN430S stands out as a smart investment for enhancing security and peace of mind in small to mid-sized environments.
Key Specifications:
- 4-channel recording support
- Resolution up to 8MP (4K)
- H.265/H.264 video compression
- Built-in PoE ports
- HDMI/VGA video outputs
- Advanced security analytics
- 1 HDD slot supporting up to 6TB
- Easy-to-use graphical interface
Specifications
| Display | |
| Network camera | |
| Network camera > Inputs | Max. 4CH |
| Network camera > Resolution | 8MP ~ CIF |
| Network camera > Protocols | SUNAPI, ONVIF |
| Decoding | |
| Decoding > Local Display | HDMI |
| Decoding > Multi Screen Display | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4 |
| Decoding > Resolution | [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps) |
| Performance | |
| Operating System | |
| Operating System > Embedded | Linux |
| Record | |
| Record > Compression | H.265, H.264, MJPEG |
| Record > Recording Bandwidth | Max. 40Mbps |
| Record > Resolution | 8MP ~ CIF |
| Record > Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark |
| Record > Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event |
| Record > Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out |
| Search & Play | |
| Search & Play > Playback Bandwidth | Max. 32Mbps |
| Search & Play > User | Max. 4 Users (Local 1, Remote 3) |
| Search & Play > Simultaneous playback | Max. 16CH(Local 4CH, Remote 4CH per user) |
| Search & Play > Fisheye Dewarping | CMS |
| Search & Play > Mode | Date & Time(Calendar), Event list, Text Search, Smart Search |
| Search & Play > Resolution | CIF ~ 8MP |
| Search & Play > Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Storage > Supported HDD | Up to 6TB |
| Storage > HDD Slot | SATA 1ea(Max. 6TB) |
| Backup | |
| Backup > File backup | BU/Exe(GUI), JPG/AVI(Network) |
| Backup > Function | Multi channel(Up to 4CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 50Mbps |
| Audio | |
| Audio > Input/Output | 4 CH(network) |
| Audio > Compression | G.711, G.726, AAC(16/48KHz) |
| Audio > Audio Communication | 2-Way |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
| Web viewer | |
| Web viewer > Supported OS | Windows 10, macOS 10.13 |
| Web viewer > Supported browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS |
| Functions | |
| Camera Setup | |
| Camera Setup > Register | Auto, Manual |
| Camera Setup > Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | |
| PTZ > Control | Via GUI, Webviewer |
| PTZ > Preset | 300 Presets |
| Smart phone | |
| Smart phone > Support Model | iOS, Android |
| Smart phone > Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
| Smart phone > Control | Live 4CH(Multi-Profile Support), Playback 4CH |
| Smart phone > Max. Remote Users | Search(3), Live Unicast(10) |
| Redundancy | |
| Redundancy > Failover | N+1 |
| Redundancy > ARB | Support |
| Easy configuration | P2P(QR code) |

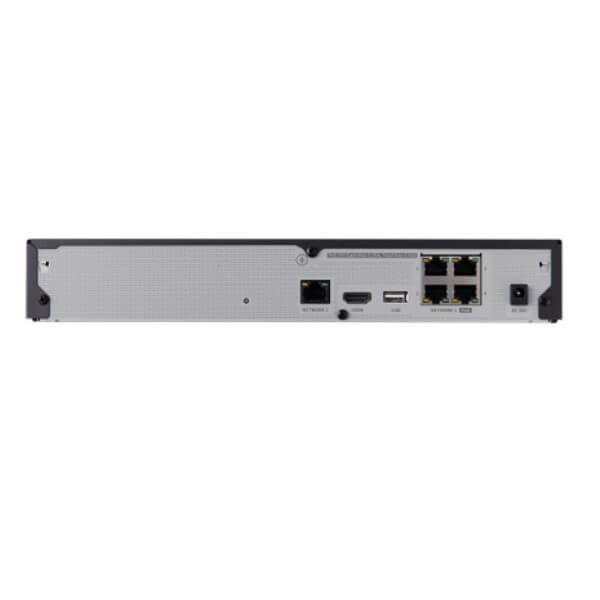

| Interface | |
| Front | |
| Front > Indicator | Power, Record, Network |
| Storage | OK |
| Reset | Support |
| HDMI | 1EA 3840×2160 30Hz |
| Ethernet | PoE RJ-45(LAN, 10/100) 4 ea ,RJ-45 1ea (WAN, 10/100) |
| USB | 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0) |
| Power inlet | DC Adaptor |
| System | |
| Log | |
| Log > Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Web |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz |
| Power Consumption | Max 52W(1HDD, PoE On) |
| PoE Budget | 35W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 300.0 x 47.1 x 208.4 mm (11.81 x 1.85 x 8.20 inch) |
| Weight | 1.03Kg (2.27lb) |
