Description

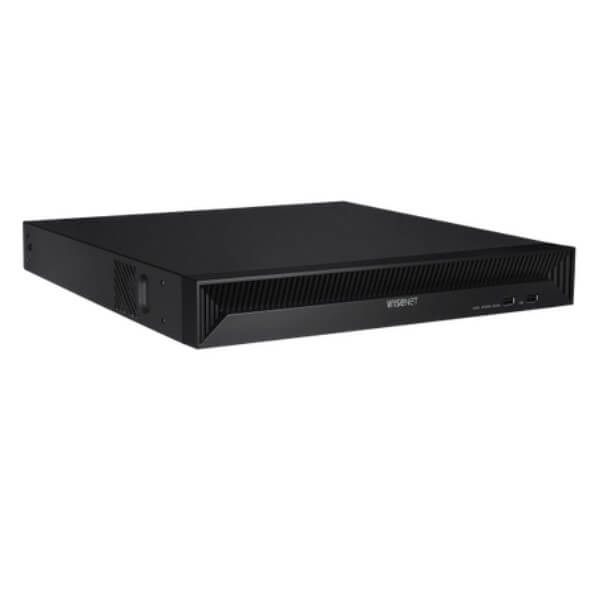

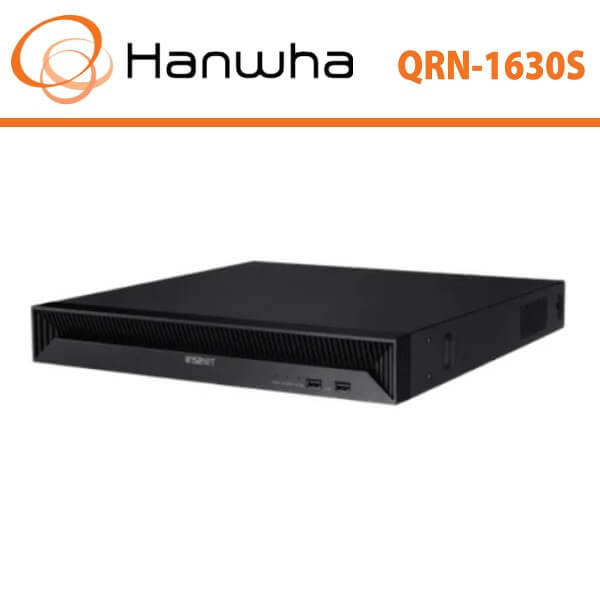

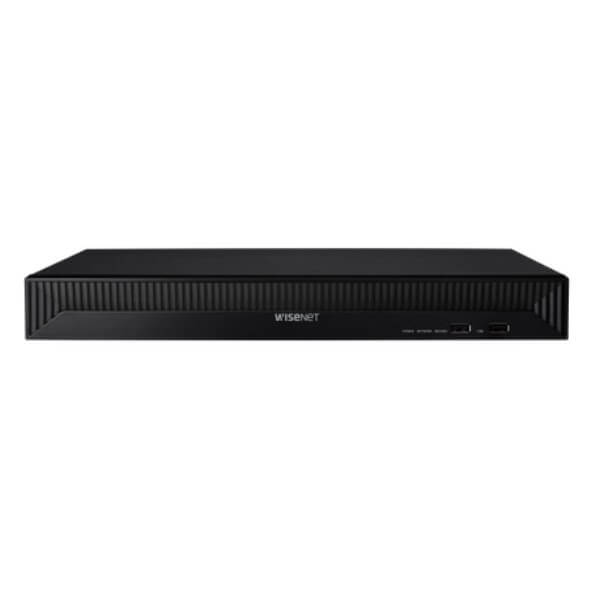

Hanwha QRN1630S CCTV Network Video Recorder
The Hanwha QRN1630S CCTV Network Video Recorder, formerly known under the Samsung CCTV brand, delivers a robust and scalable video surveillance solution tailored for modern security needs. Supporting up to 16 channels, this high-performance NVR is built with cutting-edge technology to enhance video storage efficiency, streamline security management, and ensure reliable operation in diverse environments, including businesses, retail spaces, and public institutions.
With its powerful high-resolution recording capabilities, the Hanwha QRN1630S ensures superior video clarity across all connected cameras. This level of detail is essential for accurate monitoring, event analysis, and incident investigation, providing security teams with crystal-clear footage that captures every crucial moment. The system’s ability to manage up to 16 cameras makes it suitable for both small and large-scale surveillance setups.
One of the standout features of the QRN1630S is its integration of H.265 video compression technology, which significantly reduces both storage usage and network bandwidth without compromising video quality. Compared to older compression formats, H.265 offers enhanced efficiency, allowing for longer recording times while conserving valuable storage space. This makes the QRN1630S a cost-effective solution for long-term surveillance and data retention.
Designed with user convenience in mind, the QRN1630S supports both HDMI and VGA outputs, providing seamless compatibility with a wide array of display monitors. Whether for live monitoring or playback, the system delivers high-quality visuals in real time. In addition, the integrated Power over Ethernet (PoE) functionality simplifies the installation process by transmitting both power and data through a single cable, reducing setup complexity and costs significantly.
The Hanwha QRN1630S is also equipped with advanced security analytics, such as motion detection, video tampering alerts, and remote monitoring capabilities. These intelligent features allow for proactive threat detection and real-time alerts, empowering security personnel to respond swiftly to suspicious activity and potential breaches. This proactive approach enhances the overall security infrastructure and minimizes risks.
Storage flexibility is another strong point of the QRN1630S. It supports up to four hard disk drives, each with a capacity of up to 6TB, providing an expansive total storage of up to 24TB. This generous storage capacity ensures that organizations can maintain continuous and uninterrupted video recording over extended periods, making it ideal for high-demand environments that require long-term footage retention.
To complement its powerful hardware, the Hanwha QRN1630S offers a user-friendly interface that simplifies system navigation. From configuring camera settings to managing playback and exporting footage, the intuitive design ensures that both novice users and experienced operators can efficiently utilize the system’s full potential. This ease of use contributes to faster response times and smoother day-to-day operations.
The Hanwha QRN1630S Network Video Recorder stands out as a smart, efficient, and scalable surveillance solution. With its advanced compression technology, extensive storage capabilities, intelligent analytics, and user-centric design, it meets the rigorous demands of modern security systems. Whether deployed in corporate facilities, retail stores, or public institutions, the QRN1630S delivers dependable performance, making it a top choice for professional video surveillance.
Key Features:
- Supports up to 16 channels
- Recording resolution up to 8MP
- H.265/H.264 compression
- HDMI/VGA video outputs
- Built-in PoE ports
- Advanced security analytics
- 4 HDD slots, each supporting up to 6TB HDD
- User-friendly interface and remote access
SPECIFICATION
| Display | ||
| Network camera | ||
| Inputs | Max. 16CH | |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | HDMI1: 3840×2160(30Hz), HDMI2: 1920×1080(60Hz) | |
| Multi Screen Display | Clone Mode : Dynamic layout Expand Mode : HDMI1 Dynamic layout, HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | [Local Monitor] 8M(60fps), 1080p(240fps), 720P(480fps), D1(960fps) | |
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 128Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 40CH(Local 16CH, Remote 8CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 10TB | |
| HDD Slot | SATA 2ea(Max. 20TB) | |
| Backup | ||
| File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 128Mbps | |
| Audio | ||
| Input/Output | 16 CH(network) | |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | ||
| Supported OS | Windows 10, macOS 11 | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS | |
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | ||
| Control | Via GUI, Webviewer | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live: Multi-Profile Support, Multi Channel Playback | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| Front | ||
| Indicator | Power, Record, Network | |
| Storage | OK | |
| HDMI | 2EA | |
| Audio | Out 1EA (RCA output) | |
| Ethernet | PoE+ RJ-45 16EA (LAN, 10/100), RJ-45 1ea (LAN/WAN 1Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 2EA(Front 2 x USB 2.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Keyboard, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | Max. 200W(682 BTU with 2HDD, PoE ON) | |
| PoE Budget | 130W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 370.0 x 50.7 x 320 mm (14.6 x 2.0 x 12.6 inch) | |
| Weight | 2.87Kg (6.33 lb) | |
