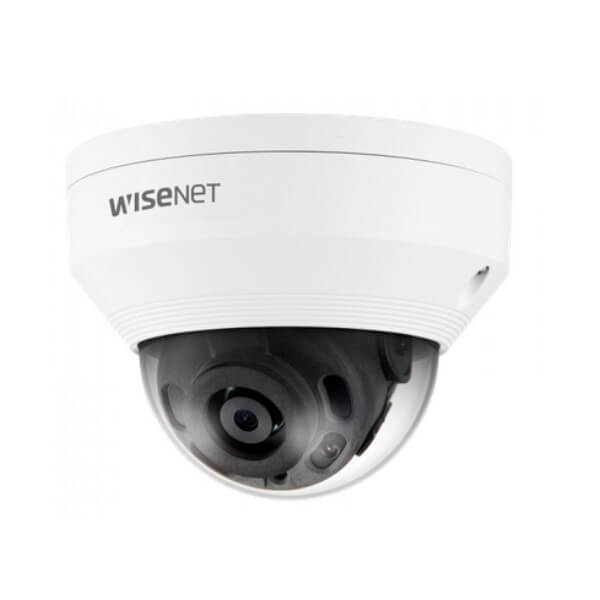

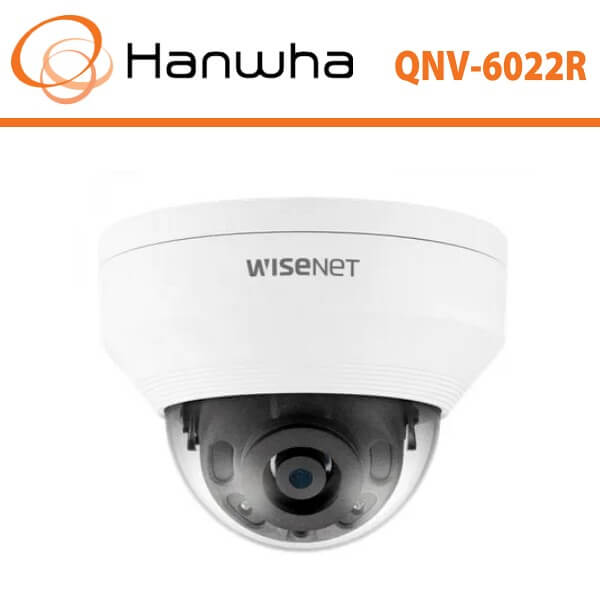

Hanwha QNV6022R Vandal Dome Camera
The Hanwha QNV6022R vandal-resistant dome camera is an advanced surveillance solution designed to meet the security needs of modern environments. Engineered for both indoor and outdoor use, this high-performance camera offers a powerful blend of HD video quality, rugged durability, and intelligent video analytics—making it an ideal choice for commercial buildings, schools, retail outlets, transportation hubs, and high-risk public areas.
At the core of the QNV6022R is a 2-megapixel CMOS image sensor that delivers Full HD resolution at 1920×1080 pixels. This exceptional image quality ensures clear and precise monitoring, allowing security teams to easily identify important visual details such as facial features, vehicle license plates, and other critical evidence. High-definition video is crucial for effective surveillance, especially in sensitive or high-traffic zones.
The camera is equipped with a fixed 4mm lens, offering an 87-degree horizontal field of view that’s optimized for targeted coverage of entryways, corridors, offices, and other confined or defined spaces. This fixed-lens configuration provides consistent and distortion-free visuals, enhancing situational awareness and reducing the risk of blind spots during real-time monitoring or playback.
To ensure around-the-clock security, the Hanwha QNV6022R features built-in infrared LEDs capable of delivering clear night vision up to 25 meters (approximately 82 feet). The camera’s intelligent IR technology automatically adjusts the illumination based on ambient lighting conditions, providing balanced images even in total darkness or low-light scenarios. This allows for 24/7 continuous surveillance without compromising video clarity.
Designed with durability in mind, the QNV6022R boasts IP66-rated weatherproofing and IK10-rated vandal resistance, ensuring reliable operation in harsh environmental conditions and areas prone to physical tampering. Whether exposed to rain, dust, or potential impact, the camera’s robust housing keeps it protected and functional—ideal for outdoor installations, parking structures, school campuses, and transit stations.
Enhancing its security capabilities, the Hanwha QNV6022R comes with intelligent video analytics that support proactive threat detection and rapid incident response. These features include motion detection, which alerts users to activity in monitored zones; virtual line crossing detection, which identifies perimeter breaches; intrusion detection to monitor unauthorized access; and tampering alarms that notify operators if the camera is obstructed or altered.
The Hanwha QNV6022R dome camera stands out as a smart and dependable security investment. Combining crystal-clear imaging, strong night vision, rugged build quality, and advanced analytics, it delivers comprehensive protection for a wide range of surveillance applications. If you’re looking for a reliable camera that enhances security infrastructure while offering cost-effective performance, the QNV6022R is a standout choice for modern safety needs.
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ 2MP CMOS |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 87.6 / V: 46.4° / D: 104.5° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| IR Viewable Length | 25m(82.02ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.40W, typical 6.00W 12VDC: Max 6.40W, typical 5.10W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø120.3×91.7mm(Ø4.74×3.61″), 510g(1.12 lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 40.0m(131.36ft) |
| Observe (63PPM/ 19PPF) | 16.0m(52.54ft) |
| Recognize (125PPM/ 38PPF) | 8.0m(26.27ft) |
| Identify (250PPM/ 76PPF) | 4.0m(13.14ft) |
