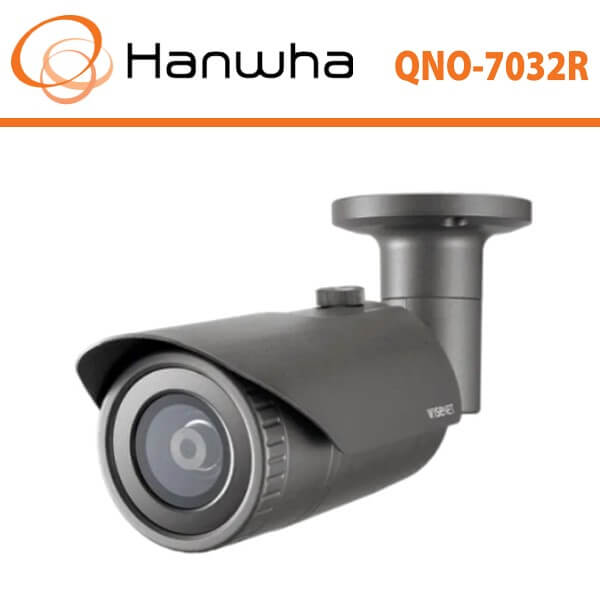

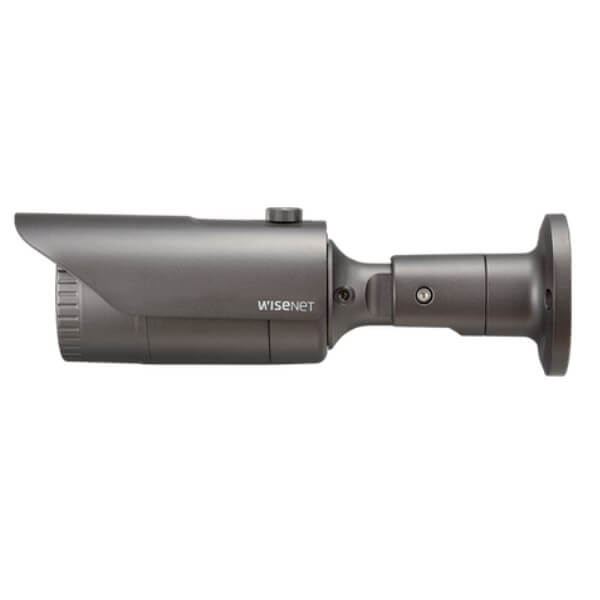

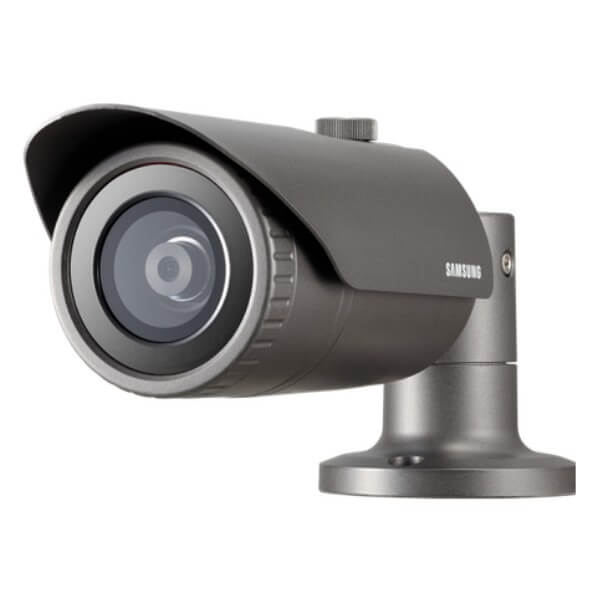

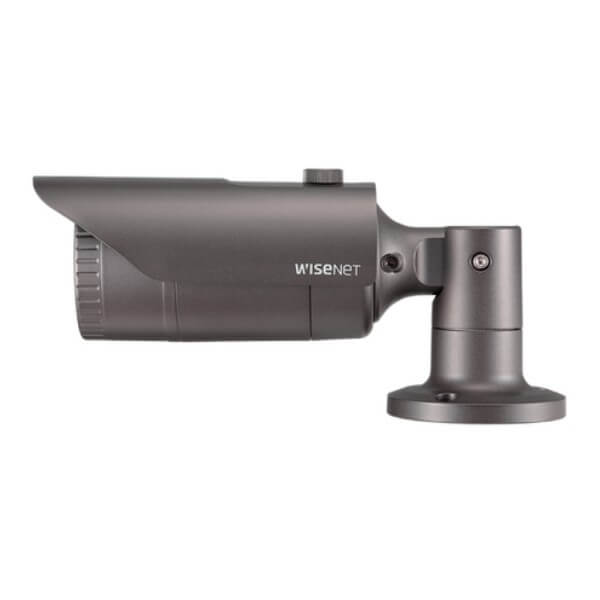

Hanwha QNO7032R Bullet Camera
The Hanwha QNO7032R bullet camera is a robust and reliable video surveillance solution designed to meet the demanding security needs of commercial, residential, and institutional environments. Engineered for optimal performance, it combines advanced imaging technology, intelligent video analytics, and night vision capabilities in a durable and weather-resistant form factor. Whether you are securing a retail storefront, managing a school campus, or monitoring an industrial site, the QNO7032R delivers high-resolution footage and 24/7 monitoring to ensure consistent and effective protection.
Featuring a 6mm fixed lens, the Hanwha QNO7032R provides a 51° horizontal field of view, making it perfect for focused surveillance of critical areas such as building entrances, driveways, and perimeter boundaries. This fixed lens offers excellent image clarity with minimal distortion, ensuring that essential visual details are accurately captured. It’s ideal for use in scenarios where consistent and targeted coverage is needed without the need for manual adjustments.
One of the standout features of the QNO7032R is its 120dB Wide Dynamic Range (WDR), which allows the camera to produce clear images even in challenging lighting conditions. Whether facing direct sunlight or capturing shadowed zones, the WDR balances exposure levels across the frame, ensuring that both bright and dark areas are visible. This feature is particularly useful in entryways, reception areas, or outdoor settings where lighting conditions frequently change.
When it comes to nighttime surveillance, the Hanwha QNO7032R excels with its integrated infrared (IR) LEDs, providing night vision capabilities up to 30 meters. This ensures high-quality video footage even in complete darkness, making it an excellent choice for round-the-clock monitoring. Locations such as parking lots, warehouses, industrial facilities, and remote outdoor spaces benefit greatly from the camera’s reliable low-light performance.
The camera is also equipped with intelligent video analytics that take surveillance to the next level. Features such as motion detection, virtual line detection, intrusion detection, and defocus detection allow for proactive threat identification and real-time alerting. These built-in analytics help security teams respond faster and more effectively, making the QNO7032R not just a recording device, but a smart surveillance assistant.
In addition to its smart features, the Hanwha QNO7032R supports multiple video compression formats, including H.265, H.264, and MJPEG, allowing for efficient bandwidth usage and optimized video storage. With H.265 compression, users can significantly reduce storage costs while maintaining high-quality image output. This makes the camera highly scalable and cost-effective for long-term use in enterprise-level installations.
The QNO7032R is designed for seamless integration into existing security infrastructure. It is compatible with all major video management systems (VMS) and network video recorders (NVRs). The camera also meets ONVIF standards, ensuring interoperability with a wide range of third-party devices and software platforms. This compatibility makes it easier to expand or upgrade surveillance systems without worrying about compatibility issues.
The versatility of the Hanwha QNO7032R makes it suitable for a wide range of surveillance applications. It is ideal for retail and commercial spaces, helping businesses monitor entryways, customer areas, and parking lots. Educational institutions can use it to ensure campus safety and track activity around sensitive areas. Industrial sites benefit from its ability to monitor operations and maintain compliance, while government and public sector buildings can enhance safety through comprehensive area monitoring.
The Hanwha QNO7032R bullet camera offers a compelling mix of performance, durability, and smart surveillance features. It is a top-tier solution for those looking to implement a reliable and efficient video monitoring system. With cutting-edge technologies like WDR, IR night vision, intelligent analytics, and efficient video compression, this camera is built to meet modern security challenges head-on.
If you’re looking to upgrade your security system with a professional-grade, intelligent bullet camera, the Hanwha QNO7032R is a highly recommended option. Its ability to deliver clear, uninterrupted footage and integrate seamlessly with existing systems makes it a smart investment for both short-term performance and long-term scalability.
SPECIFICATION
| Video | |
| Imaging Device | 1/3″ CMOS |
| Resolution | 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@4MP Max. 2fps) |
| Min. Illumination | Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 6.0mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 49°, V: 28°, D: 56°˚ |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~100° / 0°~360° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset) |
| Audio In | Selectable(mic in/line in) |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m (98.42ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C (-40°F ~ +131°F) / 0~95% RH ＊Start up should be done at -30°C or above |
| Storage Temperature / Humidity | -40°C~+60°C (-40°F~+140°F) / 0~95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 10.7W, typical 8W 12VDC: Max 9.1W, typical 6.8W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | ø70.0×246.0mm(ø2.76×9.69″), 700g(1.54 lb) |
| Compatible Conduit hole / Gangbox | Single, Double, 4″Octagon |
| Backbox | SBO-100B1, SBO-147B |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 112.3m(368.60ft) |
| Observe (63PPM/ 19PPF) | 44.9m(147.44ft) |
| Recognize (125PPM/ 38PPF) | 22.5m(73.72ft) |
| Identify (250PPM/ 76PPF) | 11.2m(36.86ft) |
