Description

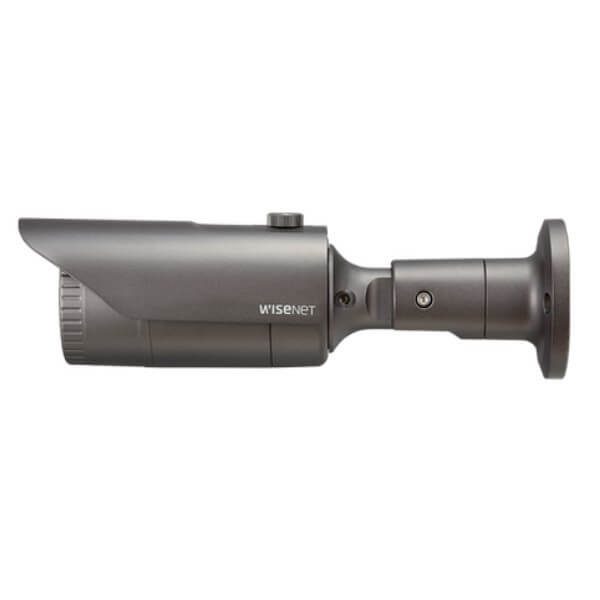

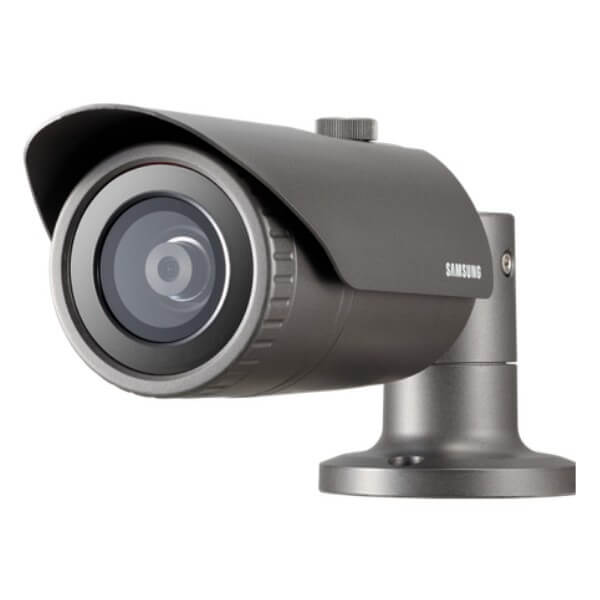

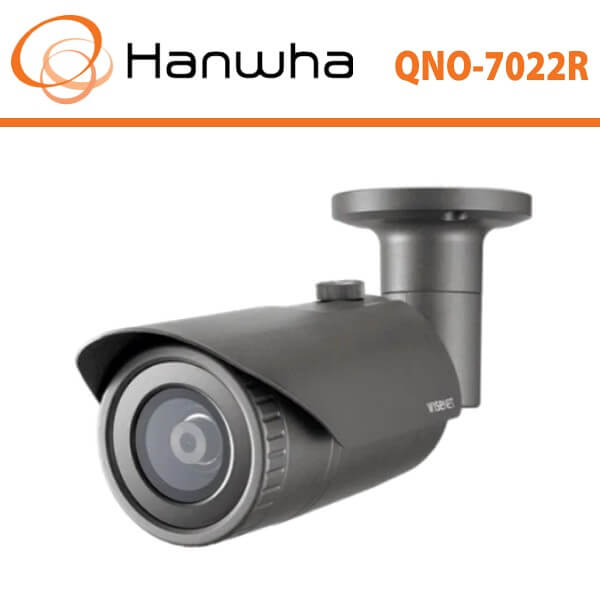

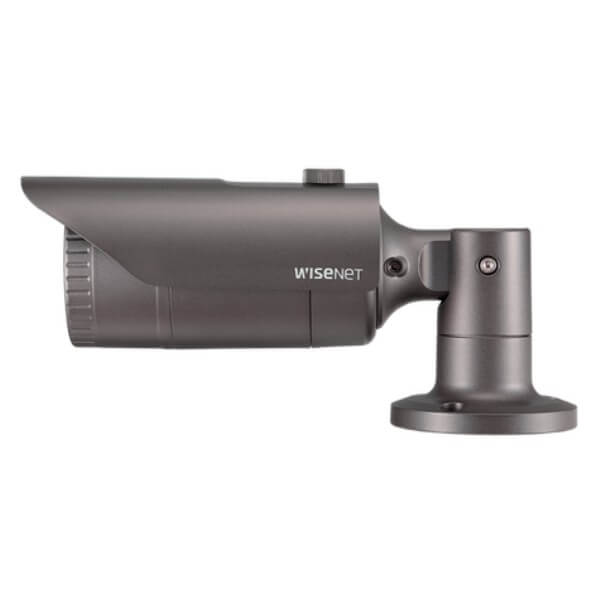

Hanwha QNO7022R CCTV Camera
In today’s world, where security threats are constantly evolving, businesses and organizations require advanced surveillance solutions that offer precision, reliability, and intelligent monitoring. The Hanwha QNO7022R is a state-of-the-art security camera specifically designed to meet the increasing demands of modern security systems. With its high-resolution imaging, advanced video analytics, and efficient compression technology, this camera provides comprehensive security coverage, making it perfect for a wide range of applications.
Crystal-Clear High-Resolution Imaging
At the heart of the Hanwha QNO7022R lies a powerful 4-megapixel (MP) 1/3″ CMOS sensor, which delivers ultra-clear images with a maximum resolution of 2560×1440 pixels. This ensures that every detail in the surveillance area is captured with precision, facilitating accurate identification and analysis. The camera supports multiple resolution settings, including 1920×1080, 1280×960, and 1280×720, offering flexibility based on specific security needs. Whether you need high-definition surveillance or lower resolutions for faster processing, the QNO7022R ensures clear and detailed monitoring.
Wide-Angle Fixed Lens for Expansive Coverage
The Hanwha QNO7022R comes equipped with a 4mm fixed focal lens and a maximum aperture of F1.6, providing a wide horizontal field of view of 79°, a vertical field of view of 42°, and a diagonal field of view of 92°. This wide-angle lens ensures that the camera captures expansive areas with ease, making it an ideal solution for monitoring large environments such as parking lots, office buildings, retail stores, and public spaces. Its broad coverage guarantees that no critical zones are missed, ensuring reliable surveillance at all times.
Advanced Video Compression for Efficient Storage
To optimize bandwidth and storage, the QNO7022R incorporates cutting-edge video compression standards, including H.265, H.264, and MJPEG. These advanced codecs significantly reduce video file sizes while maintaining exceptional image quality, making them perfect for both real-time monitoring and long-term storage. The H.265 compression standard, in particular, allows for superior video quality with reduced bandwidth consumption, while MJPEG is ideal for maintaining sharpness in individual frames. The camera’s ability to offer multiple streaming options also ensures that different quality streams can be transmitted to various devices simultaneously, providing flexibility for different monitoring needs.
24/7 Surveillance with Day & Night Functionality
The Hanwha QNO7022R ensures uninterrupted surveillance with its automatic IR cut filter (ICR), which seamlessly transitions between day and night modes. During daylight or well-lit conditions, the camera captures vibrant color images, while in low-light or nighttime scenarios, the filter enhances infrared (IR) sensitivity, producing clear monochrome images. This feature guarantees that the QNO7022R provides reliable security surveillance, whether it’s during the day or at night. Its ability to function efficiently in various lighting conditions makes it a versatile solution for both indoor and outdoor surveillance.
Intelligent Video Analytics for Proactive Security
The QNO7022R integrates AI-powered video analytics to enhance its surveillance capabilities, providing proactive security monitoring. These intelligent features include:
-
Motion Detection: Detects movement within the frame and triggers alerts or recording.
-
Tampering Detection: Notifies users if the camera’s view is obstructed or if the device is tampered with.
-
Defocus Detection: Alerts users if the camera loses focus, ensuring continuous clarity in the footage.
-
Virtual Area Detection: Monitors specific zones for unauthorized entry or exit, improving security for high-risk areas.
-
Virtual Line Detection: Detects objects crossing predefined lines, making it ideal for perimeter security and monitoring restricted zones.
These smart features not only improve the effectiveness of security systems but also help reduce false alerts, enabling real-time threat detection with increased accuracy.
The Hanwha QNO7022R is a powerful, high-performance surveillance camera that combines high-resolution imaging, advanced video analytics, and efficient data management to provide superior security solutions. Whether deployed in commercial properties, industrial sites, or public safety applications, this camera ensures comprehensive protection and reliability in any environment. The QNO7022R is a must-have for businesses and organizations seeking an advanced, cost-effective, and intelligent security solution.
With its exceptional video quality, versatile features, and ease of use, the Hanwha QNO7022R delivers maximum security with minimal effort, making it an excellent investment for those looking to enhance their surveillance infrastructure.
SPECIFICATION
| Video | |
| Imaging Device | 1/3″ CMOS |
| Resolution | 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@4MP Max. 2fps) |
| Min. Illumination | Color : 0.15Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 79°, V: 42°, D: 92° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~100° / 0°~360° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset) |
| Audio In | Selectable(mic in/line in) |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 25m (82.02ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C (-40°F ~ +131°F) / 0~95% RH ＊Start up should be done at -30°C or above |
| Storage Temperature / Humidity | -40°C~+60°C (-40°F~+140°F) / 0~95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 10.7W, typical 8W 12VDC: Max 9.1W, typical 6.8W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | ø70.0×246.0mm(ø2.76×9.69″), 700g(1.54 lb) |
| Compatible Conduit hole / Gangbox | Single, Double, 4″Octagon |
| Backbox | SBO-100B1, SBO-147B |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 63.0m(206.70ft) |
| Observe (63PPM/ 19PPF) | 25.2m(82.68ft) |
| Recognize (125PPM/ 38PPF) | 12.6m(41.34ft) |
| Identify (250PPM/ 76PPF) | 6.3m(20.67ft) |
