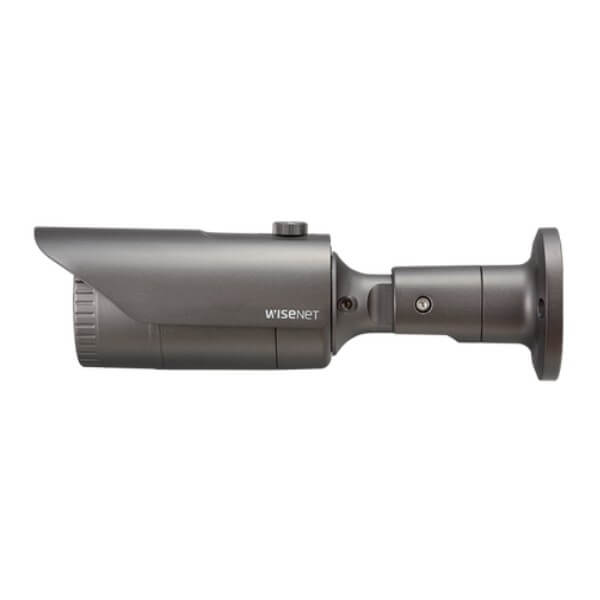

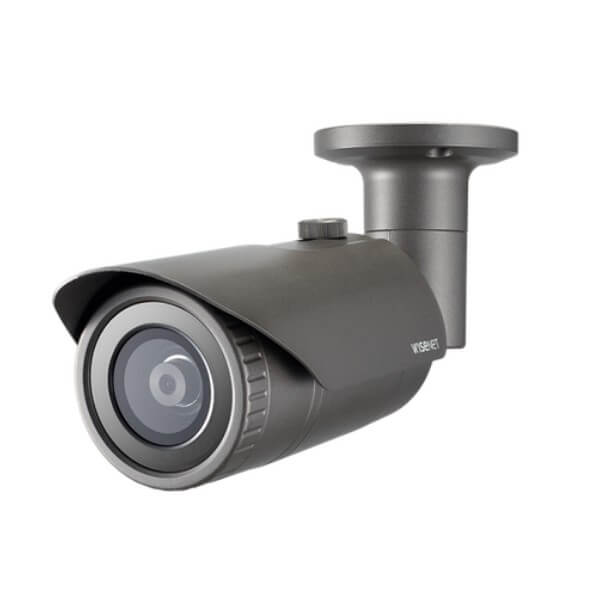

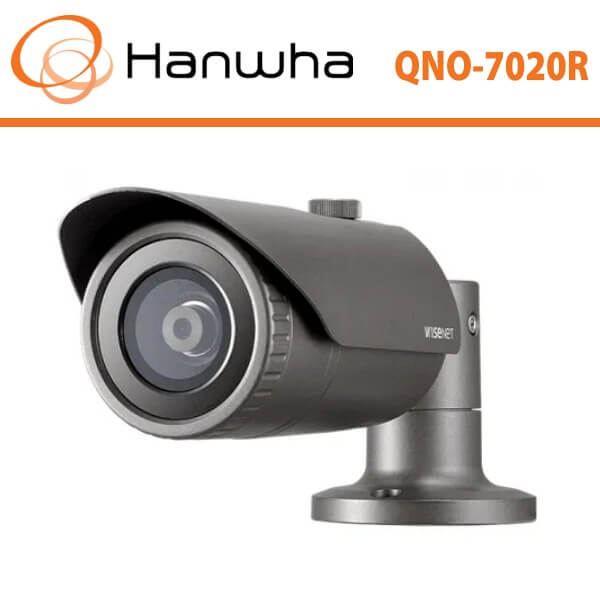

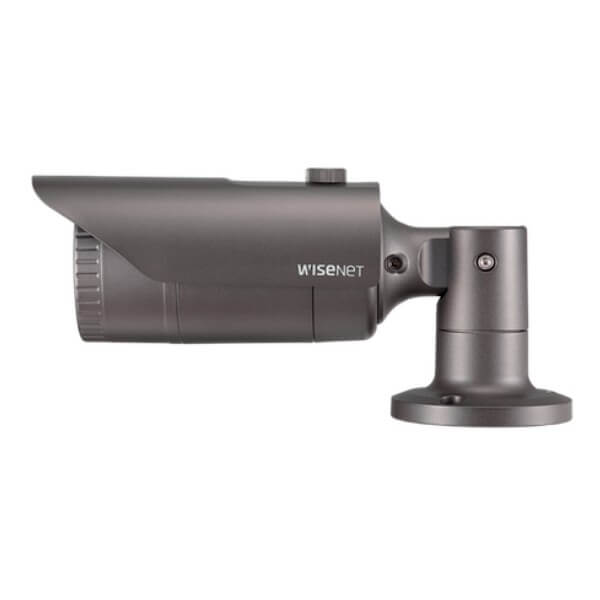

Hanwha QNO7020R CCTV Camera
The Hanwha QNO7020R CCTV Camera is a top-tier solution for those seeking reliable and high-performance outdoor video surveillance. Engineered with advanced technology, this camera features a sharp 4-megapixel resolution (2688×1520), delivering ultra-clear images that ensure no critical detail goes unnoticed. Whether it’s day or night, sunny or stormy, the QNO7020R is built to perform consistently. Its IP66-rated weatherproof housing offers unmatched durability, making it ideal for extreme weather conditions—from heavy rain and dust to freezing temperatures and intense heat.
Equipped with a 3.6mm fixed lens and wide dynamic range (WDR) of 120dB, the Hanwha QNO7020R captures vivid, well-balanced images even in challenging lighting scenarios, such as bright backlight or shadowed areas. With infrared (IR) capability reaching up to 30 meters, the camera ensures clear nighttime visibility, enhancing overall security monitoring. It supports modern video compression formats including H.265, H.264, and MJPEG, helping reduce bandwidth usage and storage requirements without compromising video quality.
The QNO7020R is more than just a camera—it’s a smart surveillance solution. Integrated with intelligent video analytics such as motion detection, tampering detection, and defocus detection, it provides proactive security management. These features help identify suspicious activity in real-time, allowing for quicker response and greater situational awareness.
This robust outdoor surveillance camera is highly versatile and suits a wide range of applications. For homeowners, it offers peace of mind by monitoring entrances, driveways, and outdoor spaces. In commercial settings, the QNO7020R is ideal for overseeing parking lots, warehouses, and perimeter zones, protecting assets and deterring unauthorized access. It also excels in industrial environments like factories and construction sites, delivering consistent performance in rugged conditions. Additionally, it supports public safety by monitoring parks, school campuses, and public gathering areas, offering reliable coverage around the clock.
When it comes to integration, the Hanwha QNO7020R is fully ONVIF compliant, ensuring seamless compatibility with most existing security systems and third-party software platforms. It also integrates effortlessly with Hanwha’s own suite of surveillance software for centralized video monitoring and system management. With support for both PoE (Power over Ethernet) and 12V DC power, installation is flexible and convenient.
The Hanwha QNO7020R is a durable, intelligent, and high-resolution CCTV camera that stands out in the outdoor surveillance market. Whether you’re securing a private residence, a commercial facility, or a public venue, this camera delivers reliable performance and smart features that make it a valuable asset in any modern security infrastructure.
Specifications:
| Video | |
| Imaging Device | 1/3″ 4MP CMOS |
| Effective Pixels | 2688(H)x1520(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.4Lux(F2.2, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | None |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6mm fixed focal |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | H: 81.0° / V: 45.0° / D: 95.0° |
| Min. Object Distance | None |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | None |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | 25m(82.02ft) |
| Camera Title | Displayed up to 20 characters per line(Max.5 lines) |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Line in Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | None |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264, MJPEG |
| Resolution | 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps(60Hz/50Hz) 2MP, all resolution, MJPEG: Max 15fps/12fps(60Hz/50Hz) |
| Smart Codec | WiseStreamⅠ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.00W 12VDC: Max 6.00W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| RAL Code | |
| Product dimensions / weight | Ø70.0×246.0mm(Ø2.76×9.69″), 730g(1.61 lb) |
