Description

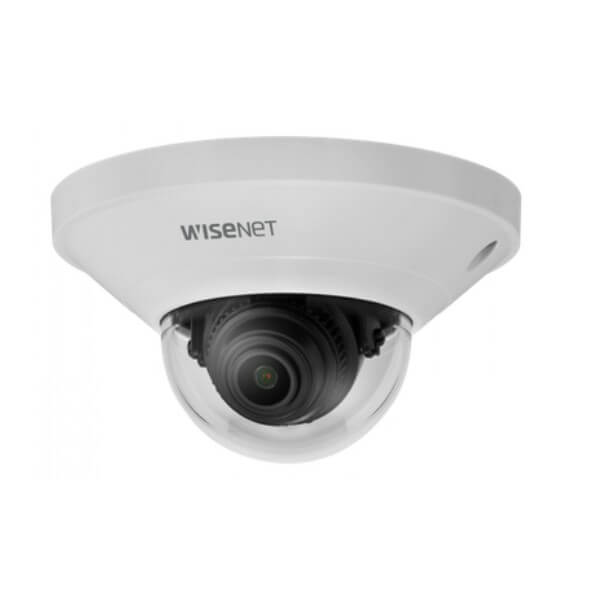

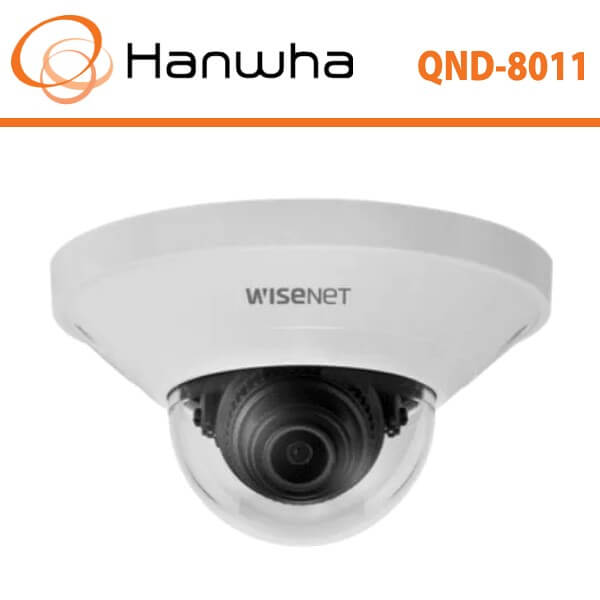

Hanwha QND8011 Dome Camera
The Hanwha QND8011 Dome Camera is a high-performance indoor surveillance solution built for professional environments requiring reliable, clear, and intelligent video monitoring. Designed with advanced imaging and durability in mind, this compact dome camera offers an ideal balance of performance and affordability, making it a top choice for businesses, commercial spaces, educational institutions, and public facilities looking to enhance their security infrastructure.
At the heart of the Hanwha QND8011 is a powerful 5 Megapixel CMOS sensor that delivers high-definition video at resolutions up to 2560 x 1920 pixels. This exceptional clarity allows for detailed monitoring and accurate identification of people, objects, and incidents—critical for effective security management. Whether you’re monitoring a retail floor, office lobby, or school corridor, the QND8011 ensures that every frame is crisp and clear, supporting both live viewing and post-event analysis.
The camera features a precision-engineered fixed lens, offering wide-angle coverage without the need for manual adjustments. This design ensures consistent surveillance in key areas such as entrances, waiting rooms, and hallways. Its fixed lens delivers consistent focus, making the Hanwha QND8011 ideal for areas that require 24/7 monitoring with minimal maintenance.
To address difficult lighting conditions, the QND8011 comes equipped with advanced Wide Dynamic Range (WDR) technology. This feature automatically balances scenes with high contrast, such as environments with bright sunlight and deep shadows, allowing the camera to produce evenly exposed footage. The result is superior image quality in areas like glass door entrances or rooms with uneven lighting, where standard cameras might struggle.
When it comes to low-light performance, the Hanwha QND8011 doesn’t compromise. Thanks to its advanced Digital Noise Reduction (DNR), the camera maintains image clarity even in dim or nighttime conditions. This technology reduces visual noise and graininess, ensuring clean, usable footage during off-hours, which is crucial for 24-hour surveillance environments such as retail stores or healthcare facilities.
Durability is a core strength of the QND8011. Housed in a vandal-resistant IK08-rated enclosure, the camera is engineered to withstand impacts, tampering attempts, and harsh indoor environments. Whether installed in public areas or locations prone to interference, this robust design guarantees continued operation and long-term reliability.
What sets the QND8011 apart is its suite of intelligent surveillance features. It includes built-in motion detection, which instantly alerts operators to unexpected activity, and tampering detection, which notifies security teams if the camera is blocked, moved, or otherwise compromised. These smart functions enable a proactive approach to security, allowing teams to respond quickly to potential threats.
The QND8011 is also designed for network efficiency, supporting advanced H.265 and H.264 video compression standards. These codecs significantly reduce bandwidth usage and storage needs while maintaining excellent video quality. This means smoother streaming, faster access to archived footage, and lower costs for data management—especially important for large-scale surveillance systems.
Versatile and compact, the Hanwha QND8011 fits seamlessly into various environments. In retail settings, it helps deter theft while ensuring customer safety. In corporate offices, it enhances workplace security and monitors high-traffic areas. In educational and healthcare institutions, it ensures compliance with safety regulations and provides reliable, discreet surveillance to protect staff and visitors alike.
The Hanwha QND8011 Dome Camera stands out as a top-tier indoor surveillance camera, offering high-resolution imaging, advanced smart features, and durable construction. It’s an excellent choice for organizations seeking a reliable, future-ready security solution that blends performance with efficiency. With the QND8011, you can trust that your surveillance needs are covered with precision and professionalism.
Key Features
- Max. 5Megapixel (2592 x 1944) resolution
- 2.8mm fixed lens
- 0.15Lux (Color), WDR (120dB)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- LDC, PoE
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ 5MP CMOS |
| Resolution | 5MP mode : 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 4MP mode : 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.15Lux(F2.0, 1/30sec) |
| Video Out | micro HDMI: 1080p@30/25fps(60/50Hz) |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 104.4°/ V: 76.7°/ D: 136.1° |
| Min. Object Distance | None |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | None |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting |
| Serial Interface | None |
| Alarm I/O | None |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Audio In | None |
| Audio Out | None |
| IR Viewable Length | None |
| IR Illuminator (Optional) | None |
| Water Removal | None |
| Auto Tracking | None |
| Coaxial Protocol | None |
| Color Palettes | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | None |
| Smart Codec | WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +40°C(-14°F ~ +104°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP42, IK08 |
| Input Voltage | PoE(IEEE802.3af, Class2) |
| Power Consumption | PoE: Max 5.00W, typical 4.00W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø99.0×56.0mm(Ø3.9×2.2″), 165g(0.36 lb) |
| Conduit hole | None |
| Hanging mount(Dome) | SBP-099HMW |
| Skin cover(Dome) | None |
| Weather cap(Dome) | None |
| Power module | None |
| Backbox | None |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 40.2m(12.26ft) |
| Observe (63PPM/ 19PPF) | 16.1m(4.90ft) |
| Recognize (125PPM/ 38PPF) | 8.0m(2.45ft) |
| Identify (250PPM/ 76PPF) | 4.0m(1.23ft) |
