Description

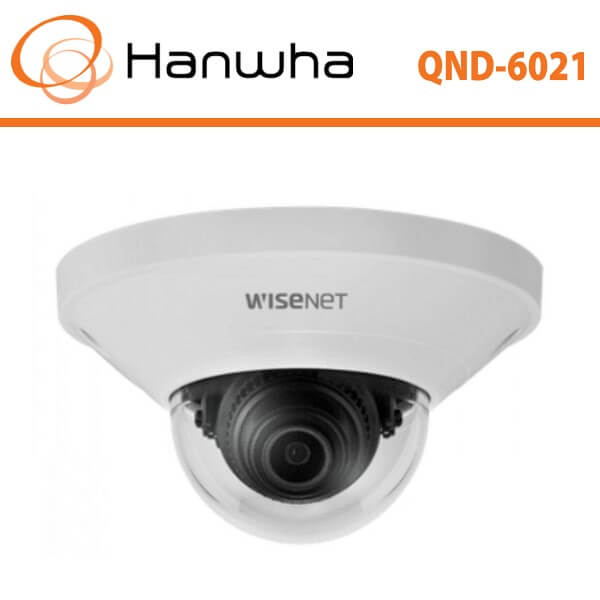

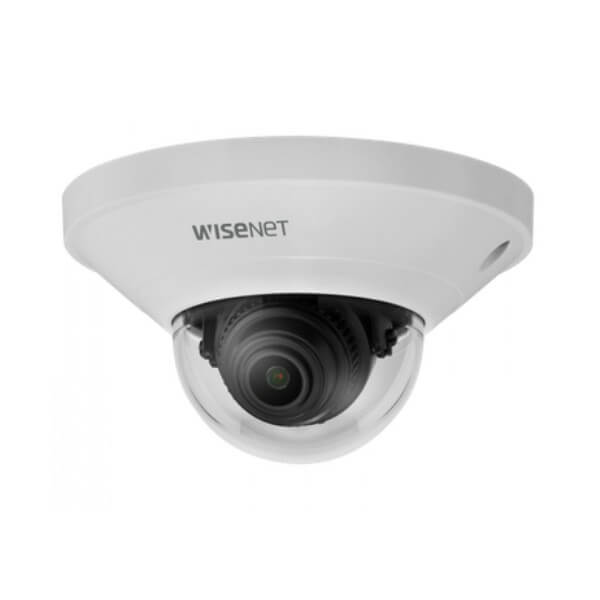

Hanwha QND6021 Indoor Dome Camera
The Hanwha QND6021 mini indoor dome camera delivers advanced surveillance capabilities with a compact design tailored for modern indoor security applications. Designed for commercial spaces, offices, and retail environments, this high-performance camera combines exceptional image quality, smart analytics, and seamless integration to support a secure and intelligent monitoring system.
With its sleek, unobtrusive form factor and reliable performance, the QND6021 is engineered to fit aesthetically into any indoor setting while providing the high-end features required for today’s video surveillance demands.
High-Definition Video Clarity with 2MP CMOS Sensor
At the heart of the Hanwha QND6021 lies a 2-megapixel CMOS sensor that delivers crisp Full HD video at 1920×1080 resolution. This level of detail is essential for capturing faces, objects, and important incidents with sharp clarity. Whether monitoring entrances, corridors, or transactional areas, the QND6021 ensures that no detail goes unnoticed—making it an ideal choice for environments that require accurate and dependable indoor surveillance.
This camera’s powerful imaging capability supports enhanced visibility, ensuring businesses can respond quickly to incidents and maintain comprehensive video records for investigative purposes.
Advanced People Counting for Operational Insights
A standout feature of the QND6021 is its built-in people counting analytics, which provide actionable data for businesses across sectors such as retail, hospitality, and corporate environments. By accurately tracking the number of individuals entering or exiting a space, this camera allows organizations to optimize staffing schedules, evaluate peak hours, and improve service delivery.
This level of insight transforms the camera from a traditional security tool into a strategic business asset, offering data-driven decision-making that enhances both efficiency and customer satisfaction.
Optimized Visibility with 120dB Wide Dynamic Range (WDR)
In indoor environments where lighting conditions can vary dramatically—such as near windows or entrances—the QND6021’s 120dB Wide Dynamic Range (WDR) ensures that both bright and dark areas are rendered clearly in the same scene. This feature enhances video quality in high-contrast situations, reducing image distortion and maintaining detail in challenging lighting.
WDR makes the QND6021 an excellent fit for spaces with inconsistent lighting, helping security personnel maintain visual accuracy during both day and night operations.
Reliable Onboard Storage with Edge Recording
To support uninterrupted surveillance, the QND6021 is equipped with a micro SD/SDHC/SDXC memory card slot, enabling local edge storage. This provides a valuable layer of redundancy, ensuring that video continues to be recorded even if the network connection is temporarily lost.
This built-in storage capability is particularly beneficial for organizations that require continuous surveillance and cannot afford data gaps in their security footage.
Seamless Integration with VMS and NVR Systems
The Hanwha QND6021 is fully compatible with a wide range of Video Management Systems (VMS) and Network Video Recorders (NVRs), thanks to its support for ONVIF standards. This flexibility allows businesses to integrate the camera into their existing security infrastructure with ease, simplifying both initial setup and long-term maintenance.
As a result, the QND6021 is not only scalable but also ideal for both new installations and system upgrades, making it a future-proof surveillance solution.
Discreet Dome Design for Streamlined Installation
Featuring a compact, low-profile dome design, the QND6021 blends seamlessly into any indoor environment. Its discreet appearance is ideal for maintaining a professional and non-intrusive security presence in lobbies, retail stores, conference rooms, and other sensitive areas.
In addition, the intuitive setup process and user-friendly configuration interface allow for quick deployment, reducing installation time and minimizing disruption to day-to-day operations.
Built-In Smart Analytics for Proactive Monitoring
To enhance security monitoring, the QND6021 includes intelligent video analytics that provide real-time alerts and automated responses to events. These features include:
-
Motion Detection – Automatically detects movement and sends alerts to security personnel.
-
Tampering Detection – Notifies administrators if the camera is obstructed or tampered with.
-
Defocus Detection – Ensures the camera remains in focus, maintaining image quality throughout its operation.
These analytics enable proactive surveillance, allowing security teams to respond to threats quickly and efficiently.
Why Choose the Hanwha QND6021?
The Hanwha QND6021 mini indoor dome camera stands out as a versatile, intelligent, and durable solution for indoor security needs. Its combination of HD video performance, smart analytics, seamless integration, and compact design makes it suitable for a variety of indoor environments.
Whether you’re looking to upgrade an existing system or implement a new surveillance strategy, the QND6021 offers the reliability and functionality needed to protect your space while also delivering valuable operational insights.
Optimize your security with the QND6021—where intelligent technology meets dependable performance.
Key Features
- Max. 2Megapixel (1920 x 1080) resolution
- 4mm fixed lens
- 0.03Lux (Color), WDR (120dB)
- Max. 30fps@2MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- LDC, PoE
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ 2MP CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) |
| Video Out | None |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 87.6 / V: 46.4° / D: 104.5° |
| Min. Object Distance | None |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | None |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting |
| Serial Interface | None |
| Alarm I/O | None |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Audio In | None |
| Audio Out | None |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Smart Codec | WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Audio Compression | None |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP42, IK08 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class2) |
| Power Consumption | PoE: Max 4.80W, typical 2.80W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø99.0×56.0mm(Ø3.9×2.2″), 145g(0.32 lb) |
| Conduit hole | None |
| Hanging mount(Dome) | None |
| Skin cover(Dome) | None |
| Weather cap(Dome) | None |
| Power module | None |
| Backbox | None |
| DORI | |
| Detect (25PPM/ 8PPF) | 40.0m(131.36ft) |
| Observe (63PPM/ 19PPF) | 16.0m(52.54ft) |
| Recognize (125PPM/ 38PPF) | 8.0m(26.27ft) |
| Identify (250PPM/ 76PPF) | 4.0m(13.14ft) |
