Description

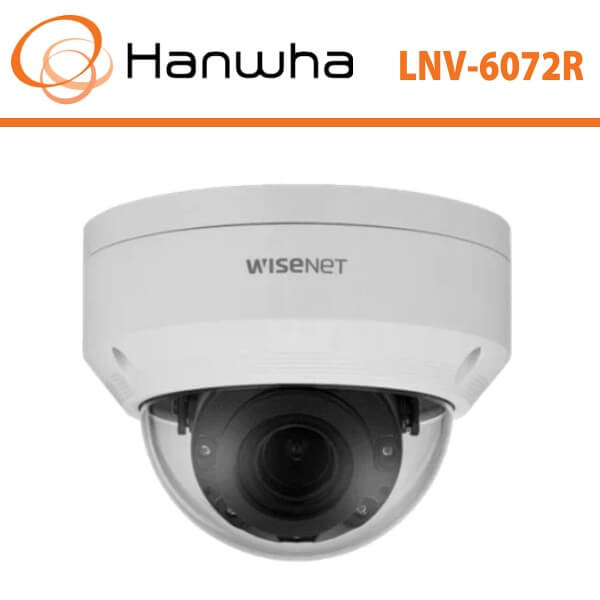

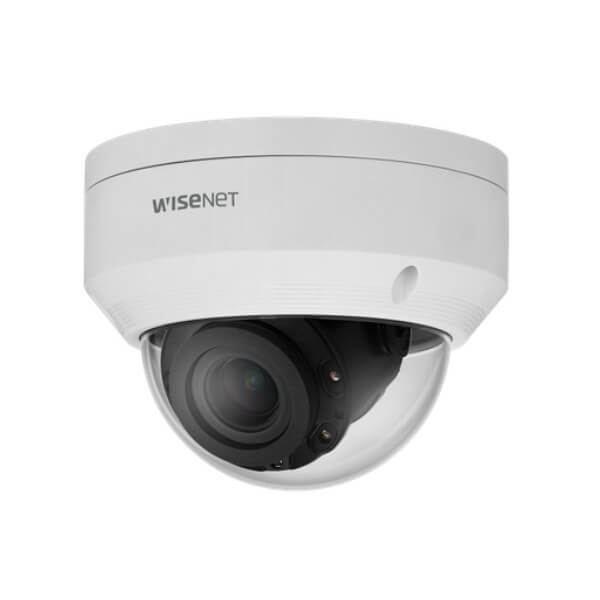

Hanwha LNV6072R Vandal Dome Camera
The Hanwha LNV6072R vandal-resistant dome camera is a premium surveillance solution designed to meet the evolving demands of modern security systems. Built with robust materials and advanced imaging technologies, the LNV6072R offers a powerful combination of high-definition video, intelligent analytics, and reliable performance in challenging environments. Whether for commercial, industrial, or public security applications, this camera stands out for its durability and intelligent design.
One of the standout features of the Hanwha LNV6072R camera is its versatile 3.2-10mm varifocal lens, which allows precise adjustment of the viewing angle. This flexibility enables operators to toggle between wide-angle surveillance for general coverage and a narrow focus for detailed monitoring. Such adaptability is particularly beneficial in securing entry points, monitoring hallways, or observing sensitive zones where detailed identification is crucial.
To ensure round-the-clock protection, the LNV6072R dome camera comes equipped with advanced infrared night vision capabilities. It offers clear video imaging in complete darkness up to 30 meters. Its smart IR technology automatically adjusts brightness levels to prevent overexposure, maintaining image clarity in low-light and no-light environments. This makes it an ideal choice for nighttime surveillance and outdoor installations.
Another key feature of the LNV6072R surveillance camera is its 120dB Wide Dynamic Range (WDR). This technology enables the camera to produce well-balanced footage in scenes with both bright and dark areas, such as building entrances or outdoor locations where sunlight and shadows intersect. By effectively managing contrast, the WDR function ensures that important details are not lost, enhancing the overall image quality and reliability of captured footage.
For added resilience, the LNV6072R camera is equipped with built-in edge storage capabilities. It supports micro SD, SDHC, and SDXC cards, allowing video data to be recorded locally on the device. This feature provides a valuable backup option in case of network interruptions, ensuring continuous surveillance without data loss. It’s especially beneficial in remote or mission-critical applications where uptime is essential.
The Hanwha LNV6072R vandal-proof dome camera is a powerful, flexible, and intelligent solution for securing various environments. Its advanced features, including varifocal lens, night vision, WDR, and edge storage, make it an ideal fit for businesses and institutions seeking dependable, high-performance video surveillance.
Key Features
- Maximum 2MP resolution
- Color: 0.03Lux(F1.6, 1/30sec) BW : 0Lux (IR LED on)
- 3.2~10mm(3.1x) manual varifocal
- Maximum 30fps@2MP all resolutions (H.264)
- H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Tampering, Motion detection
- Micro SD/SDHC memory slot (32GB), PoE
- Hallway view (90°/270°), WiseStreamII support
- IR viewable length 30m(98.43ft)
- IP66, IK10 support
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.264: Max. 30fps/25fps(60Hz/50Hz)(WDR off) H.264: Max. 15fps/12fps(60Hz/50Hz)(WDR on) MJPEG: Max. 10fps(@2MP Max. 2fps) |
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) BW : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) manual varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.9(Tele) |
| Angular Field of View | H: 109°(Wide)~33°(Tele) V: 58°(Wide)~18°(Tele) D: 132°(Wide)~38°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, rectangler zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering |
| Alarm Triggers | Analytics |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC 1slot 32GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~90% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C +55°C(-22°F ~ +131°F) / 0~90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max 6.4W, Typical 5.0W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø137.8×106.1mm(ø5.43×4.18″), 525g |
| Hanging Mount (Dome) | SBP-301HMW2 |
| Backbox | SBV-136BW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 27.4m(89.85ft) / Tele: 128.8m(422.56ft) |
| Observe (63PPM/ 19PPF) | Wide: 11.0m(35.94ft) / Tele: 51.5m(169.02ft) |
| Recognize (125PPM/ 38PPF) | Wide: 5.5m(17.97ft) / Tele: 25.8m(84.51ft) |
| Identify (250PPM/ 76PPF) | Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft) |
