Description

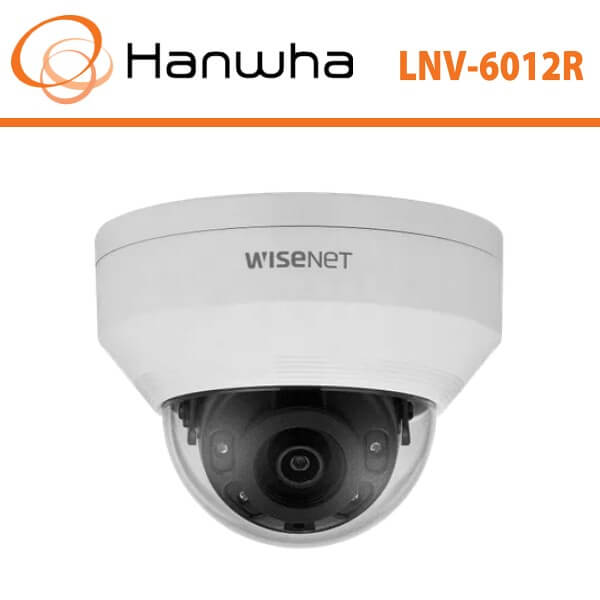

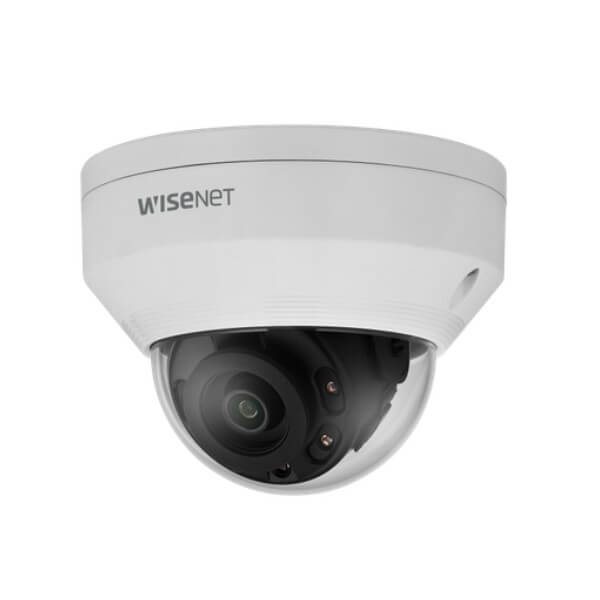

Hanwha LNV6012R Vandal Dome Camera
The Hanwha LNV6012R is a rugged, high-performance dome camera engineered for advanced security monitoring in both indoor and outdoor environments. Its vandal-resistant design makes it ideal for high-risk areas, while its cutting-edge features ensure dependable, high-quality surveillance 24/7. Whether used in commercial buildings, public spaces, or industrial sites, the LNV6012R delivers unmatched performance and durability, making it a go-to solution for professionals seeking reliable security technology.
One of the standout features of the Hanwha LNV6012R is its wide-angle coverage, made possible by a fixed 2.8mm lens that offers an impressive 113° horizontal field of view. This extensive coverage reduces blind spots and makes it perfect for monitoring expansive spaces such as building entrances, corridors, retail floors, and parking areas. With this wide lens, security teams can effectively monitor critical areas using fewer cameras, reducing installation and maintenance costs.
Designed to perform flawlessly day and night, the Hanwha LNV6012R is equipped with powerful built-in infrared (IR) LEDs that enable superior night vision. Capable of capturing clear, detailed images up to 20 meters in complete darkness, this camera ensures uninterrupted surveillance around the clock. Whether you’re securing a dimly lit alley, a warehouse, or an office after hours, the camera’s IR capabilities ensure constant visibility.
Another key feature of the Hanwha LNV6012R is its 120dB Wide Dynamic Range (WDR) technology. This advanced imaging function is designed to handle complex lighting environments where both bright and dark areas are present within the same frame. The WDR functionality ensures that all objects—regardless of lighting conditions—are captured with clarity and precision. It’s especially useful in environments like lobbies with large glass windows or areas with fluctuating light conditions.
To further enhance reliability, the Hanwha LNV6012R supports onboard edge storage via a built-in microSD/SDHC/SDXC card slot. This feature allows for continuous video recording even if the network goes down, ensuring that critical footage is not lost during outages. The edge storage capability provides an added layer of data protection and operational continuity, which is essential for businesses and facilities where uninterrupted surveillance is a top priority.
The Hanwha LNV6012R also stands out with its smart video analytics, offering proactive security features that reduce manual monitoring and enhance threat detection. Intelligent analytics include motion detection for real-time activity alerts, intrusion detection to identify unauthorized access, and tampering detection to alert administrators of any attempts to disable or obstruct the camera. These features help streamline response times and reduce false alarms, making the system more efficient and effective.
In summary, the Hanwha LNV6012R is a powerful, feature-rich security camera that combines wide-angle HD surveillance, night vision, dynamic lighting adaptability, intelligent analytics, and fail-safe edge recording. Its robust construction and advanced technology make it ideal for use in commercial, industrial, educational, and municipal security applications. By investing in the LNV6012R, users gain a dependable surveillance solution optimized for high-performance monitoring in any condition.
This SEO-optimized content is structured to target keywords such as vandal-resistant dome camera, wide-angle security camera, infrared night vision CCTV, WDR security camera, edge storage surveillance, and intelligent video analytics, improving its visibility and ranking in search engine results.
Key Features
- Maximum 2MP resolution
- Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on)
- 2.8mm fixed focal
- Maximum 30fps@2MP all resolutions (H.264)
- H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Tampering, Motion detection
- Micro SD/SDHC memory slot (32GB), PoE
- Hallway view (90°/270°), WiseStreamII support
- IR viewable length 30m(98.43ft)
- IP66, IK10 support
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.264: Max. 30fps/25fps(60Hz/50Hz)(WDR off) H.264: Max. 15fps/12fps(60Hz/50Hz)(WDR on) MJPEG: Max. 10fps(@2MP Max. 2fps) |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 114° / V: 62° / D: 135° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, rectangler zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering |
| Alarm Triggers | Analytics |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC 1slot 32GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~90% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C +55°C(-22°F ~ +131°F) / 0~90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max 6.4W, Typical 5.0W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø120.3×91.7mm(ø4.74×3.61″), 410g |
| Hanging Mount (Dome) | SBP-122HMW |
| Backbox | SBV-120GW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 25.1m(82.28ft) |
| Observe (63PPM/ 19PPF) | 10.0m(32.91ft) |
| Recognize (125PPM/ 38PPF) | 5.0m(16.46ft) |
| Identify (250PPM/ 76PPF) | 2.5m(8.23ft) |
