Description

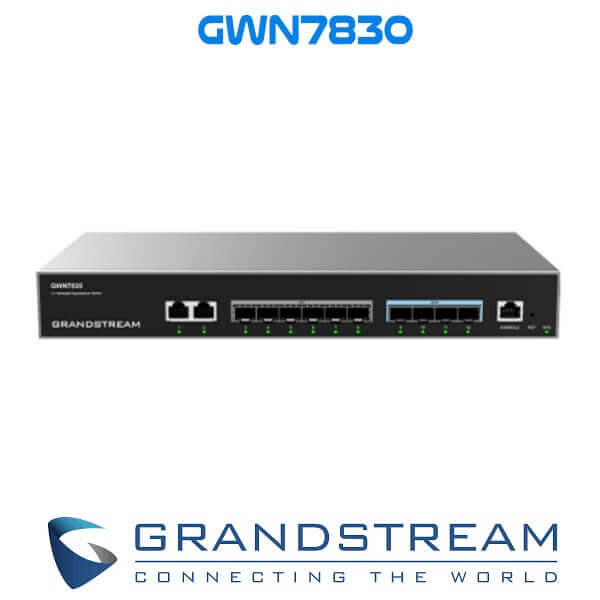

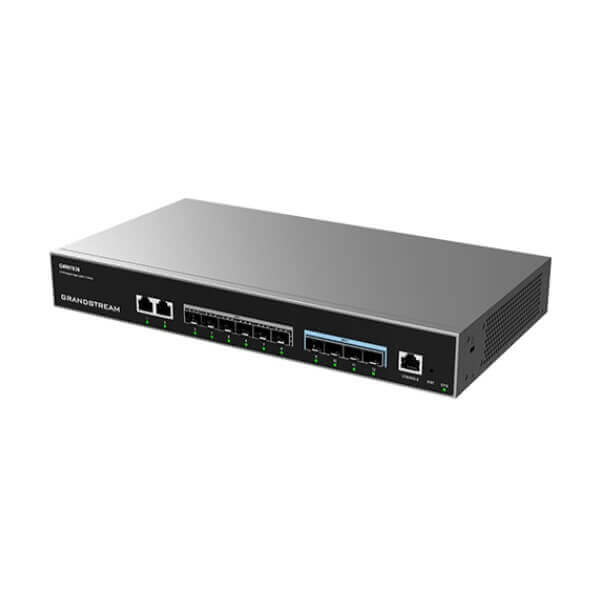

Grandstream GWN7830 Layer 3 Managed Network Switch Nigeria
The Grandstream GWN7830 Nigeria offers managed switches that allow businesses to create scalable, secure, high-performance, and intelligent networks. These networks are easily manageable and capable of handling maximum capacity. The device provides advanced VLAN for flexible traffic segmentation, sophisticated QoS for prioritizing network traffic, IGMP/MLD Snooping for optimized performance, and robust security features to prevent potential attacks. The Grandstream GWN7830 Nigeria can be managed through the local Web user interface and CLI, and is compatible with GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With its comprehensive quality of service, customizable security settings, and support for high network capacity, the Grandstream GWN7830 Nigeria is an excellent choice for medium-to-large enterprise setups.
Grandstream GWN7830 Core Features
- 6 x SFP
- 4 x SFP+
- 2 x GigE
- Supports deployment in IPv6 and IPv4 networks.
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
- Built-in QoS allows for prioritization of network traffic
Additional Information
| Weight | 4.21 lbs |
| Dimensions | 13 × 6.89 × 1.73 in |
| Brand | Grandstream |
| Product Family | GWN-Cloud |
| Switch Type | Managed Switches |
| Number of Ports | 11-18 |
| Main Port Speed | Gigabit |
| Uplink Ports | Gigabit SFP |
| Layer Support | L3 |
| PoE Support | No |
Technical Specifications
GENERAL INFO :
- Model : GWN7830
- Box Contents :
- 1x GWN7830 Switch
- 1x 1.2m(10A) AC Cable
- 1x 25cm Ground Cable
- 4x Rubber Footpads
- 1x Power Cord Anti-Trip
- 2x Extended Rack-Mounting Kits
- 8x Screws(KM 3*6)
- 1x Quick Installation Guide
NETWORK PROTOCOL :
- IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE
802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x - Gigabit Ethernet Ports : 2
- Gigabit SFP Ports : 6
- Gigabit SFP+ Ports : 4
- Note : Support DAC Cable and must be ≤ 5m
- Maximum no. of Supported Modules :
- SM-1G : 6
- MM-1G : 6
- RJ45-1G : 3
- SM-10G : 4
- MM-10G : 4
- RJ45-10G : 2
- Note : RJ45-1G, RJ45-10G modules must be interval inserted
- Console : 1
- Integrated Power Supply : 30W
- Auxiliary Ports : 1x Reset Pinhole
- Forwarding Mode : Store-and-forward
- Total non-blocking throughput : 48Gbps
- Switching Capability : 96Gbps
- Forwarding Rate : 71.424Mpps
- Packet Buffer : 12Mb
- Network Latency : <4µs
