Grandstream GWN7803P Network Switch Nigeria

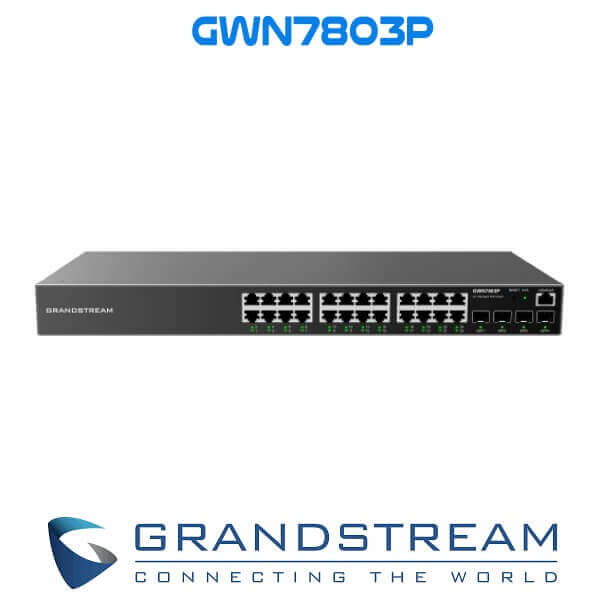

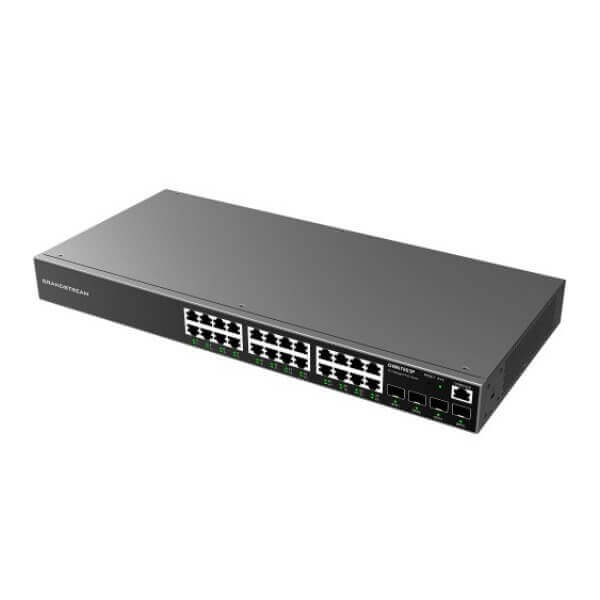

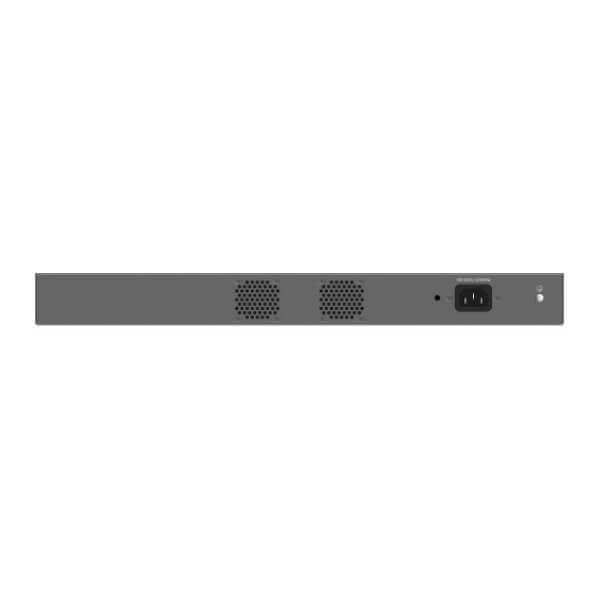

The Grandstream GWN7803P Nigeria is a managed network switch with Power over Ethernet (PoE) capabilities. It belongs to the GWN7800 series of managed switches, which are specifically designed for small and medium-sized businesses. These switches allow businesses to create networks that are scalable, secure, efficient, and intelligent. The Grandstream GWN7803P Nigeria offers advanced features for traffic segmentation, such as Virtual LAN (VLAN) capabilities. It also has advanced Quality of Service (QoS) features that prioritize network traffic, ensuring smooth operation. Additionally, the switch utilizes IGMP Snooping to optimize network performance and has comprehensive security features to safeguard against potential attacks. One of the standout features of the Grandstream GWN7803P Nigeria is its ability to provide dynamic PoE output. This means it can power various PoE devices like IP phones, IP cameras, and Wi-Fi access points. This eliminates the need for additional power sources and simplifies installation. The GWN7800 series can be managed through different methods, including the local network controller on the switch’s interface. Furthermore, the Grandstream GWN7803P Nigeria is compatible with Grandstream’s cloud-based management platform called GWN Cloud, as well as their local Wi-Fi management platform called GWN Manager. These platforms offer convenient and efficient network management solutions.

Features

• 24 Gigabit Ethernet ports
• 4 Gigabit SFP ports
• 24 PoE ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• Provides quaternary binding of  IP, MAC, VLAN & port;
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Device management via SNMP, RMON, CLI, HTTPS, TR069, GWN Manager, GWN.Cloud
• Advanced QoS auto detects and prioritizes latency sensitive audio/video/RTP/ VoIP/SIP packets
• 3-Year Warranty Guaranteed

Technical Specifications

• Model : GWN7803P
• Network Protocol :
  • IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z,
    IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
• Gigabit Ethernet Ports : 24
• Gigabit SFP Ports : 4
• Console : 1
• Number of PoE Ports : 24
• Integrated Power Supply : 400W
• Max Output Power per PoE Port : 30W
• Max Total PoE Output Power : 360W
• PoE Standards : IEEE 802.3af/at
• Auxiliary Ports :
  • 1x Reset Pinhole
• Forwarding Mode : Store-and-forward
• Total non-blocking throughput : 28Gbps
• Switching Capability : 56Gbps
• Forwarding Rate :
  • 41.66M packets per second
• Packet Buffer : 4.1MB
• Switching :
  • 8K static, dynamic and filtering MAC addresses
  • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
  • VLAN virtual interface
  • GVRP
  • 8 link aggregation groups
  • Spanning tree, 64 instances for STP/RTSP/MSTP
• Multicast : IGMP Snooping, MLD Snooping, MVR
• Mounting :
  • Desktop
  • Wall-Mount
  • or rack-mount (rack-mount brackets included)
• LEDs :
  • 1x tri-color LED for device tracking and status indication
  • 28x green LEDs for data ports
  • 24x yellow-color LEDs for PoE ports
• Package Content :
  • GWN7803P Switch
  • 1x 1.2m(10A) AC Cable
  • 1x Ground Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 2x Lug Ear
  • 3-Year Warranty Guaranteed
