Description

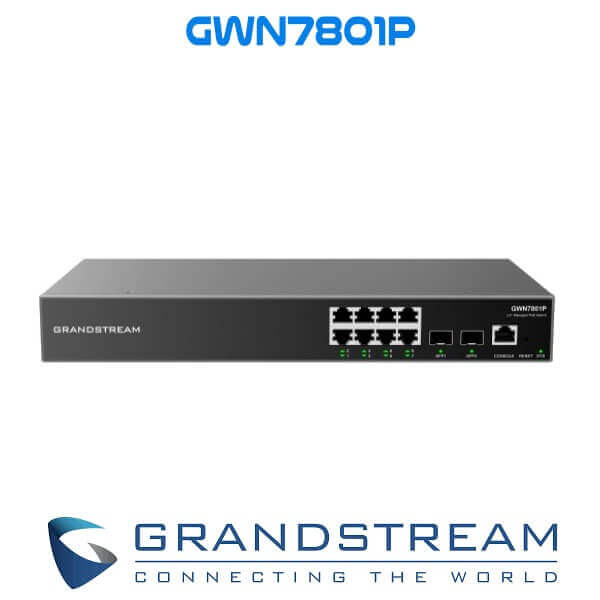

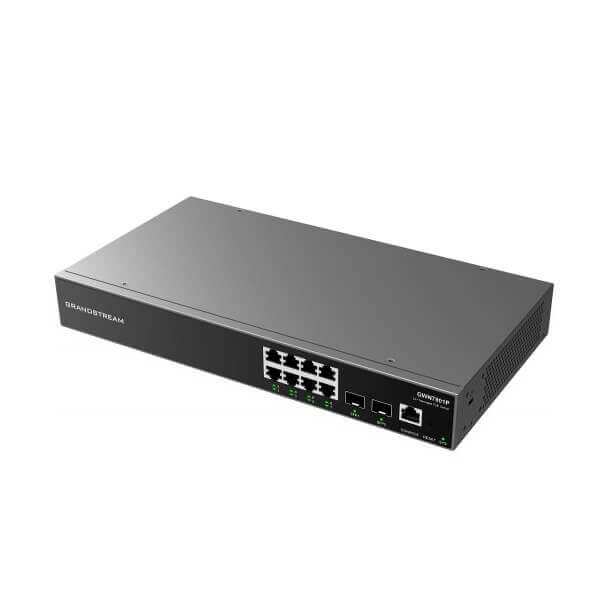

Grandstream GWN7801P Network Switch Nigeria

The Grandstream GWN7801P Nigeria is a network switch designed for small and medium businesses. It allows these businesses to create fully manageable, intelligent, secure, and high-performance enterprise networks. This switch offers advanced VLANs for flexible and complex traffic segmentation, advanced QoS for prioritizing network traffic, IGMP snooping for improved network performance, and comprehensive security features to protect against potential attacks. In addition, the PoE models provide intelligent dynamic PoE output to power various PoE devices such as IP phones, IP cameras, and WiFi access points. The Grandstream GWN7801P Nigeria can be managed through the local web UI of the GWN7800 series adapters or through Grandstream’s cloud-native WLAN management platforms GWN.Cloud and GWN Manager. Overall, the Grandstream GWN7801P Nigeria is an ideal managed network switch for small and medium businesses.

Grandstream GWN7801P Features

8 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
Supports deployment in IPv6 and IPv4 networks
Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
Built-in QoS allows for prioritization of network traffic

Technical Specifications

Model : GWN7801P
Network Protocol :
- IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
Gigabit Ethernet Ports : 8
Gigabit SFP Ports : 2
Console : 1
Number of PoE Ports : 8
Integrated Power Supply : 150W
Max Output Power per PoE Port : 30W
Max Total PoE Output Power : 120W
PoE Standards : IEEE 802.3af/at
Auxiliary Ports :
- 1x Reset Pinhole
Forwarding Mode : Store-and-forward
Total non-blocking throughput : 10Gbps
Switching Capability : 20Gbps
Forwarding Rate :
- 14.88M packets per second
Packet Buffer : 4.1MB
Switching :
- 8K static, dynamic and filtering MAC addresses
- 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
- VLAN virtual interface
- GVRP
- 8 link aggregation groups
- Spanning tree, 64 instances for STP/RTSP/MSTP
Multicast : IGMP Snooping, MLD Snooping, MVR
Mounting : Desktop/ Wall-Mount
LEDs :
- 1x tri-color LED for device tracking and status indication
- 10x green-color LEDs for data ports
- 8x yellow-color LEDs for PoE ports
Package Content :
- GWN7801P Switch
- 1x 1.2m(10A) AC Cable
- 1x Ground Cable
- 4x Rubber Feet
- 2x Lug Ear
- 3-Year Warranty Guaranteed

Weight	4.41 lbs
Dimensions	1.18 × 6.89 × 1.74 in
Brand	Grandstream
Product Family	GWN-Cloud
Switch Type	Managed Switches
Number of Ports	5-10
Main Port Speed	Gigabit
Uplink Ports	Gigabit SFP
Layer Support	L2+
PoE Support	Yes
PoE Budget	Medium (100-199 W)
Redundant Power Supply	No
