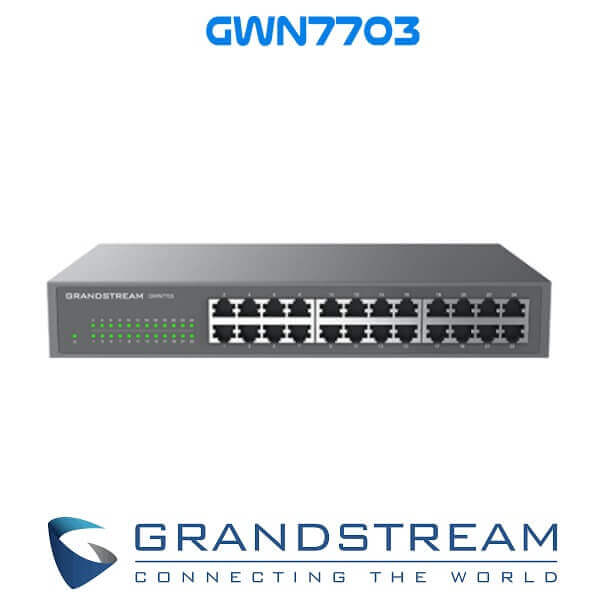

Grandstream GWN7703 Nigeria

The Grandstream GWN7703 Nigeria is an unmanaged network switch series that provides a fast and affordable solution for expanding your home office or small business with high-speed Gigabit connectivity.

Description

Grandstream GWN7703 Network Switch Nigeria

The Grandstream GWN7703 Nigeria is an unmanaged network switch series that provides a fast and affordable solution for expanding your home office or small business with high-speed Gigabit connectivity. These switches require no configuration or installation and can be desk or wall mounted. It also features auto MDI/MDIX functionality, eliminating the need for crossover cables. Each port of Grandstream GWN7703 Nigeria supports auto-negotiation, allowing the switch to detect and adjust the connection speed of 10/100/1000 Mbps network devices to ensure compatibility and optimal performance. For your convenience, the PoE (Power-over-Ethernet) model is equipped with an IEEE 802.3af/compliant intelligent dynamic PoE output port. With this feature, you can power IP phones, IP cameras, WiFi access points and other PoE endpoints. Finally, the plug-and-play Grandstream GWN7703 Nigeria is perfect for a home office or his SMB who needs an unmanaged network switch.

Technical Specifications

  • Gigabit Ports : 24
  • PoE Ports :  N/A
  • Enclosure :  Metal
  • Mounting :  Desktop/Rack-Mount
  • Standards and Protocols :  IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
  • Port Features :
    • 16 * 10/100/1000Mbps RJ45 Ports
    • AUTO Negotiation
    • AUTO MDI/MDIX
  • Network Media :  1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
  • LED Indicators :
    • Per port :  Link/Activity Green
    • Per device :  Power Green
  • Mac Address Table :  8K
  • Switching Capacity : 48Gbps
  • Jumbo Frame :  10KB
  • Advanced Features :
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE 802.3x Flow Control
    • Half duplex backpressure
  • Power Adapter :  Internal 100-240V AC, 50/60Hz,18W
  • Max Power Consumption by Base System : 13W@220V/50Hz
  • Environmental :
    • Operating Temperature :  0 to 40 °C (32 to 104 °F)
    • Storage Temperature :  -20 to 60 °C (-4 to 140 °F)
    • Operating Humidity :  10% to 90% Non-condensing
    • Storage Humidity :  10% to 90% Non-condensing
  • Dimensions (L x W x H) :
    • Unit :  280 x 180 x 44mm;
    • Package :  366 x 211 x 53mm
  • Weight :
    • Unit : 1.35KG
    • Entire Package : 1.95KG
  • Package :
    • 1x Switch
    • 1x 1.2m AC Cable
    • Rack-mounting Standard Brackets
    • 4x Rubber Feet
    • 1x QIG
  • Compliance : FCC, CE, RCM, IC, UKCA
