Description

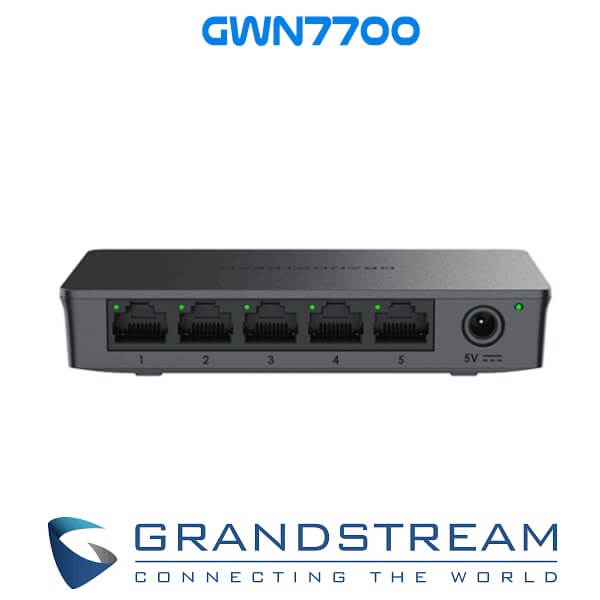

Grandstream GWN7700 Network Switch Nigeria

The Grandstream GWN7700 Nigeria series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the Grandstream GWN7700 Nigeria to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints.

Features

• 5/8 Gigabit Ethernet ports
• 802.3 af/at compliant with up to 30W on each port, PoE
  models only
• Supports deployment in IPv6 and IPv4 networks
• Green technology reduces power consumption
• Support for long cable connections
• LED Indicators; Per Port : Link/Activity/Speed, Per Device :
  Power
• Auto MDI/MDIX crossover for all ports
• The Grandstream GWN7700 Nigeria series supports up to 8 Gigabit ports depending on the model, supporting up to 16Gbps switching capacity and 9KB Jumbo Frame capabilities
• All GWN7700 devices support Auto-Negotiation and Auto MDI/ MDIX, which are two features that help ensure the network and all devices within it are operating at high transmission rates

Technical Specs

• Model : GWN7700
• Box Contents :
  • 1x GWN7700 Switch
  • 1x Power Adapter
  • 1x QIG
• Gigabit Ports : 5
• PoE Ports : N/A
• Enclosure : Plastic
• Mounting : Desktop/ Wall-Mount
• Standards and Protocols :
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • IEEE 802.3af
  • IEEE 802.3at
• Port Feature :
  • 5× 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :
  • 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
• PoE Configuration :   N/A
• LED Indicators :
  • Per port : Link/Activity Green
  • Per device : Power Green
• Mac Address Table : 2K
• Switching Capacity : 10Gbps
• Jumbo Frame : 9KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP :
    • IGMP Fast-Leave
    • IGMP Snoop
    • Route Port Autolearn
    • Query Refresh Member Port
• Power Adapter :
  • External 5V/0.6A
• Max Power Consumption by Base System :
  • 1.7W
• Environmental :
  • Operating Temperature : 0 to 40 °C (32 to 104 °F)
  • Storage Temperature : -40 to 70 °C (-40 to 158 °F)
  • Operating Humidity : 10% to 90% Non-condensing
  • Storage Humidity : 5% to 90% Non-condensing
• Compliance :
  • FCC, CE, RCM, IC, UKCA
