Description

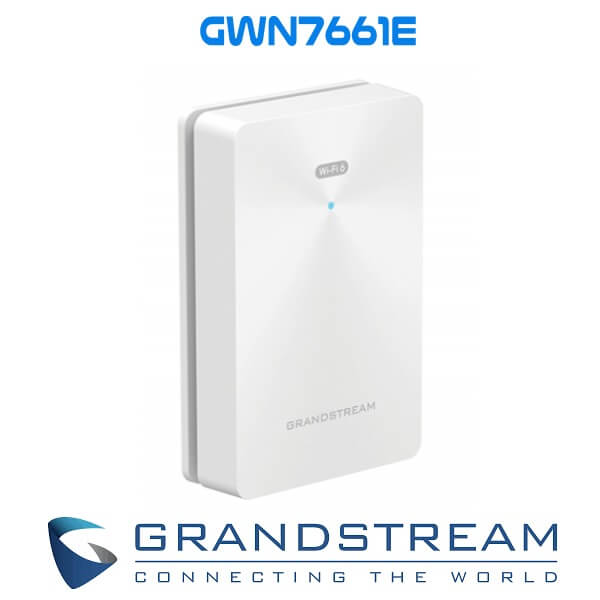

Grandstream GWN7661E Access Point Nigeria
The Grandstream GWN7661E Nigeria is a cutting-edge in-wall AX3000 Wi-Fi 6 access point, designed to meet the connectivity needs of offices, hotels, apartments, and homes. Ideal for voice-over-Wi-Fi deployments, it integrates seamlessly with Grandstream’s Wi-Fi-enabled IP phones. Delivering impressive wireless throughput of up to 3 Gbps and equipped with four Gigabit wired ports, it combines high-speed performance with reliable connectivity.
With advanced MU-MIMO (2×2:2 for 2.4 GHz and 3×3:2 for 5 GHz) and OFDMA technology, the Grandstream GWN7661E Nigeria ensures superior connectivity while supporting up to 256 simultaneous Wi-Fi clients. It features self-power adaptation for PoE or PoE+ and advanced QoS to deliver real-time performance for low-latency applications. Robust security measures include anti-hacking secure boot, digital signature-based data protection, and unique device-specific credentials.
The GWN7661E’s embedded controller can manage up to 50 local GWN access points, while GDMS Networking and GWN Manager provide scalable management options, whether via the cloud or on-premise solutions.
Features
- 3 Gbps wireless throughput and 4x Gigabit wireline ports
- 2×2:2 (2.4G) and 3×3:2 (5G) MU-MIMO and OFDMA technology
- Supports up to 256 concurrent Wi-Fi client devices
- Self-power adaptation upon auto-detection of PoE or PoE+
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Specifications
| Client Devices | Up to 256 |
| 2.4G Throughput | 573.5Mbps (2×2:2 MU-MIMO) |
| 5G Throughput | 2.4Gbps (3×3:2 MU-MIMO) |
| 6G THROUGHPUT | N/A |
| Range | Up to 100 Meters |

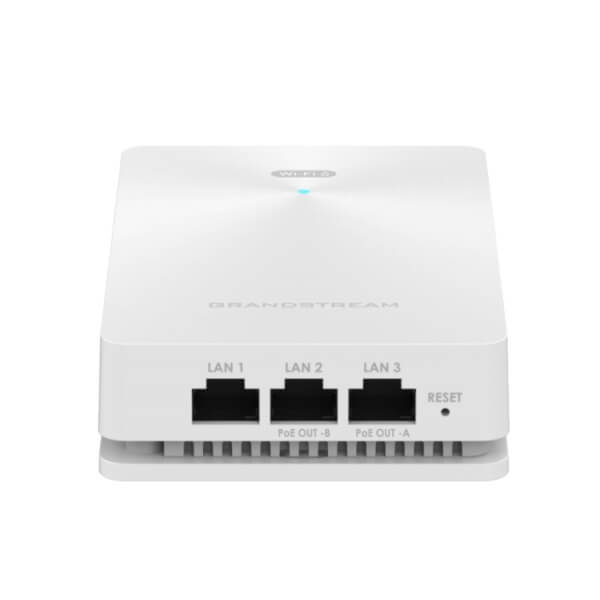

| Network Interfaces | 1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100/1000M Ethernet port with PSE 1x 10/100/1000M Ethernet port |
| PoE/PoE+ | Support 802.3az PoE 802.3af/ 802.3at; The maximum output of all PSE ports is 12W; Maximum Power Consumption: 25W |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
| Antennas | 2x dual-band internal antennas,1x 5G internal antenna |
| Wi-Fi and Security Systems | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| Dimensions | 135mm(L) x 86mm(W) x 38.5mm(H) |
| Mounting | In-Wall Mountable |
