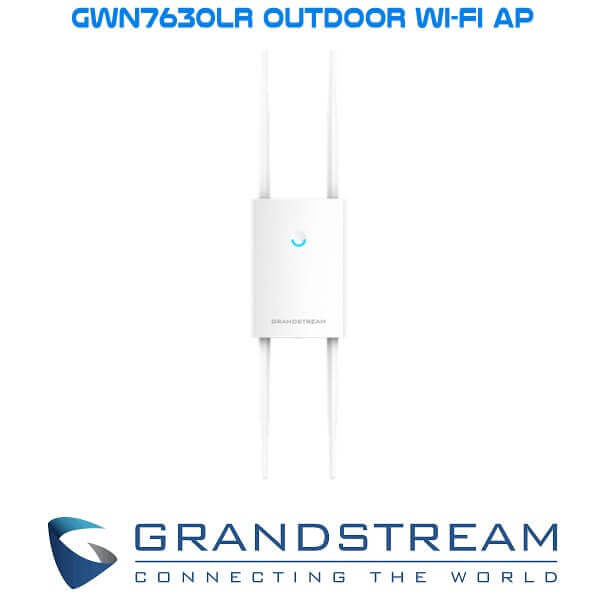

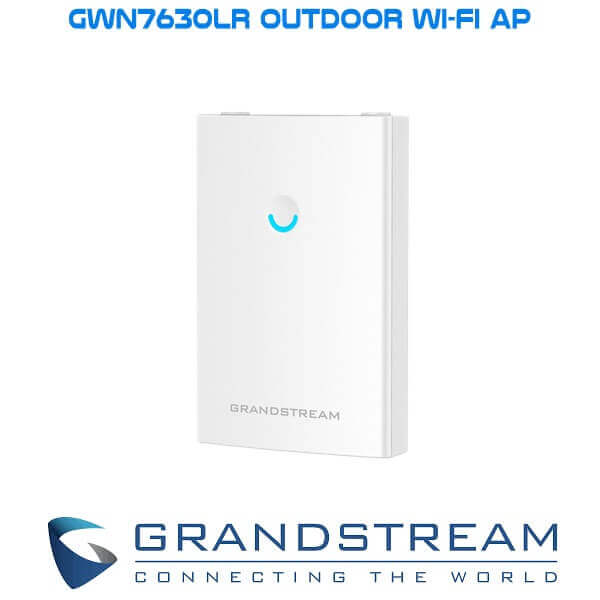

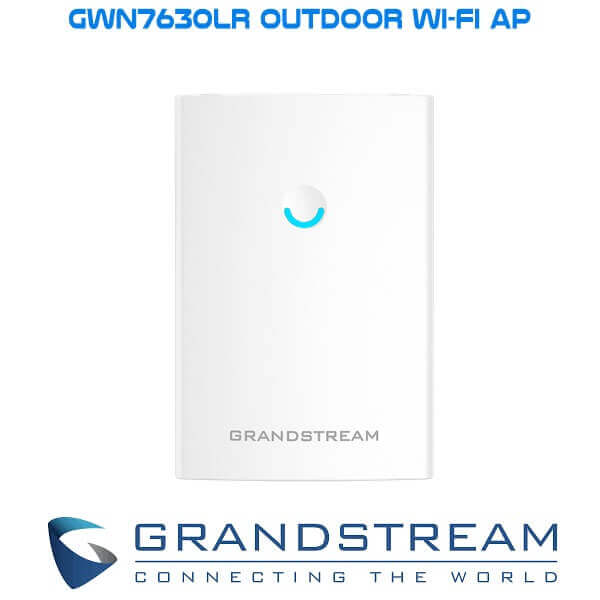

Grandstream GWN7630LR Wi-Fi Access Point Nigeria

Grandstream GWN7630LR Nigeria is an outdoor long-range 802.11 ac Wave-2 Wi-Fi access point for medium to large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4 : 4 MU-MIMO technology, and a sophisticated antenna design for maximum network throughput that supports 200+ clients and an expanded 300-meter coverage range. To ensure easy installation and management, Grandstream GWN7630LR Nigeria includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN cloud Grandstream’s free cloud Wi-Fi management platform. The Grandstream GWN7630LR Nigeria is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable voice and video IP phones. By including support for advanced QoS, low-latency real-time applications, mesh networks and captive portals, the GWN7630LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

Features

Up to 300-meter coverage range
IP66 weatherproof casing for outdoor deployments
Support 200+ concurrent Wi-Fi client devices
33Gbps wireless throughput and 2x Gigabit wireline ports
Dual-band 4×4 : 4 MIMO technology
Self-power adaptation upon auto detection of PoE/PoE+
Advanced QoS to ensure real-time performance of low latency applications
Anti-hacking secure boot and critical data/control lockdown
Flexibility of detachable/changeable antenna for different application scenarios
Embedded controller can manage up to 50 local GWN series APs;GWN.Cloud offers unlimited AP management
IEEE 802.11a/b/g/n/ac (Wave-2)

Dual-band MU-MIMO

The Grandstream GWN7630LR Nigeria features dual-band 4×4 : 4 with beam-forming solutions from Grandstream offers a sophisticated way to upgrade your network throughput and improve your Wi-Fi coverage range – no matter what kind of business environment you run.

Easy installation and management

The Grandstream GWN7630LR Nigeria simplifies the management of your connectivity network with a controller-less network management design. An embedded controller in a web user interface allows you to manage a system of up to 50 Apps without needing a separate piece of controller software or hardware. There’s also no single point of failure to worry about

Flexibility

This unique wireless access point from Grandstream pairs seamlessly with routers from third-party companies, as well as the leading routers from the Grandstream GWN series, so that you can build the connectivity environment that’s best suited to your needs, without vendor lock-in.

Advanced performance

The GWN7630LR comes with support for real-time applications and low latency, as well as advanced QoS and more than 200 devices per AP. There are even extra features like dual Gigabit ports with access to PoE.

Cloud Management

Grandstream provides a reliable and secure cloud service to deliver connectivity to its users at cheaper maintenance costs while enhancing operation and maintenance efficiency. The cloud service on the internet enables customers to gain direct access to Grandstream devices available in private networks such as IP-PBXs, audio gateways, and IP phones, therefore allowing simple remote maintenance and management of Grandstream devices. This kind of cloud service is specifically designed to meet the needs of large-scale installation, configuration, and maintenance and operation. Auto-provisioning and configuration backup, online update, real-time monitoring and alert enable users to achieve efficient operation and maintenance, thus maximizing productivity in organizations.

Supports Power over Ethernet

The Grandstream GWN7630LR is equipped with Dual 10/100Mbps ports which are integrated with Power over Ethernet to allow for convenient installation and a variety of remote features including provisioning, status monitoring and handset firmware upgrades.

Integrated Wi-Fi Connectivity

The Grandstream GWN7630LR Wireless IP Phone comes with a built-in dual-band Wi-Fi 802.11 a/b/g/n/ac which provides a fast network signal for smooth conference calls over the internet at speeds of 2.4GHz and 5GHz.

Wide Coverage Range

The Grandstream GWN7630LR Wireless Access Point is a highly efficient and reliable device that offers a long coverage range of up to 300 meters which can vary depending on the kind of environment used.

Interoperability

Grandstream GWN7630LR wireless access point can be paired with any third-party router as well as Grandstream’s GWN series routers. Supporting advanced QoS, low-latency real-time applications, 200+ client devices per AP as well as dual Gigabit network ports with PoE/PoE+

Specifications

WiFi Standards

IEEE 802.11 a/b/g/n/ac (Wave-2)

Antennas

4 detachable/changeable dual-band omnidirectional antennas
4GHz, gain 3.5dBi
5GHz, gain 3.5dBi

WiFi Data Rates

I EEE 802.11ac : 6.5 Mbps to 867 Mbps
IEEE 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n : 6.5 Mbps to 300 Mbps; 400 Mbps with 256-QAM on 2.4GHz
IEEE 802.11b : 1, 2, 5.5, 11 Mbps
IEEE 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands

4GHz radio : 2.400 – 2.4835 GHz
5GHz radio : 5.150 – 5.250 GHz, 5.725 – 5.850 GHz

*Not all frequency bands can be used in all regions. The band 5150-5350 MHz is restricted to indoor use only in all EU states.

Channel Bandwidth

4G : 20 and 40 MHz
5G : 20,40 and 80 MHz

WiFi and System Security

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO

4×4 : 4 2.4G (MIMO), 4×4 : 4 5G (MU-MIMO)

Coverage Range

Up to 300 meters *Coverage range can vary based on environment

Maximum TX Power

4G : 27 dBm
5G : 25 dBm

Receiver Sensitivity

4G
11b : -100dBm @1Mbps,-93dBm@11Mbps;802.11g : -95dBm @6Mbps,-76dBm@54Mbps; 802.11n 20MHz : -72dBm @MCS7;802.11n 40MHz : -70dBm @MCS7
5G
11a : -93dBm @6Mbps,-76dBm @54Mbps;802.11ac 20MHz : -68dBm @MCS8;802.11acHT40 : -65dBm @MCS9;802.11ac 80MHz : -60dBm @MCS9

SSIDs

16 SSIDs per radio

Concurrent Clients

200+

Network Interfaces

2x autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports

1x Reset Pinhole

Mounting

Wall mount or pole mount – kits included

LEDs

1 tri-color LEDs for device tracking and status indication

Network Protocols

IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

11e/WMM, VLAN, TOS

Network Management

Embedded controller can manage up to 50 local GWN APs
Cloud offers a free cloud management platform for unlimited GWN APs
Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

PoE 802.3af/ 802.3at;
Max Consumption : 16.5W

Environmental

Operation : -30°C to 60°C
Storage : -30°C to 70°C
Humidity : 5% to 95% Non-condensing

Physical

Unit Dimension : 533.1 × 115 × 40mm; Unit Weight : 564g
Unit + Mounting Kits Dimension : 533.1×115 ×62mm; Unit + Mounting Kits Weight : 706g
Entire Package Dimension : 258 × 247× 86mm; Entire Package Weight : 978g
