Description

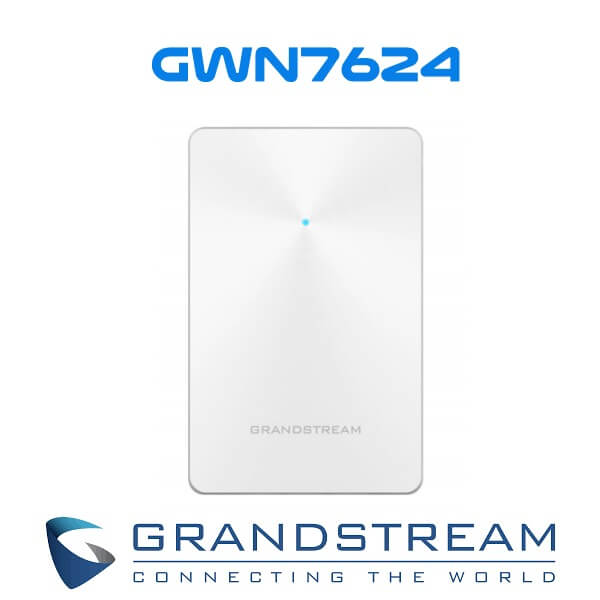

Grandstream GWN7624 Wi-Fi Access Point Nigeria

The Grandstream GWN7624 Nigeria is an In-wall Wi-Fi access point ideal for small-to-medium sized businesses, offers 4×4 : 4 MU-MIMO technology on the 5G band and 2×2 : 2 MU-MIMO on the 2.4G band. The GWN7624 is an in-wall Wi-Fi access point designed for small-to-medium-sized businesses, offices, residential and commercial locations, hotels, and more. It provides three Gigabit network ports to provide IP phones, IPTV, computers, and similar devices with Ethernet while also providing and uplink Gigabit network port with PoE/PoE+. The Grandstream GWN7624 Nigeria offers 2.4G 2×2 : 2, 5G 4×4 : 4 MU-MIMO technology, and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.

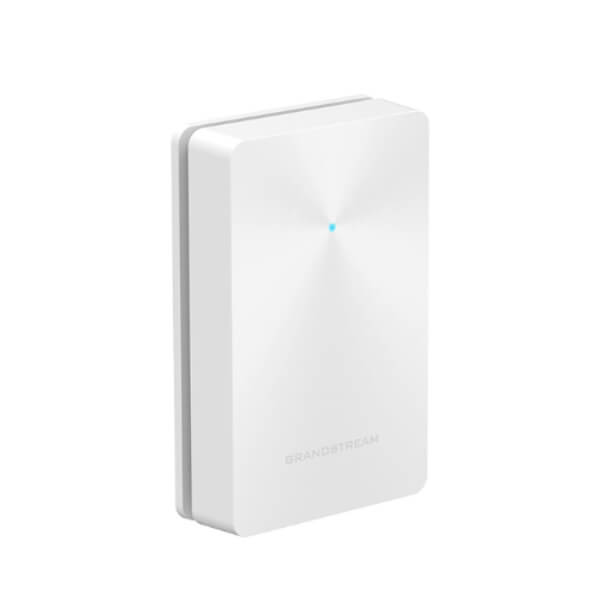

This Grandstream GWN7624 access point is designed to be mounted in-wall to provide a clean and professional installation that blends into the surrounding environment. To ensure easy installation and management, the GWN7624 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The Grandstream GWN7624 Nigeria is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over[1]Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, and 200 concurrent clients per AP, the GWN7624 is an ideal Wi-Fi access point for medium wireless network deployments with medium user density.

Features

2.03 Gbps wireless throughput and 4 Gigabit wireline ports 5GHz 4×4 : 4 MU-MIMO
Supports up to 200 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self-power adaptation upon auto detection of PoE or PoE+
Embedded controller can manage up to 30 local GWN series APs;
Cloud offers unlimited AP management; GWN Manager offers premise-based software controller

Gigabit

Grandstream GWN7624 Nigeria provides 2.03 Gbps wireless throughput and 4x Gigabit wireline ports. It provides three Gigabit network ports to provide IP phones, IPTV, computers

MIMO Technology

The Grandstream GWN7624 Access Point offers 2.4G 2×2 : 2, 5G 4×4 : 4 MU-MIMO technology, and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.

QOS Support

Grandstream GWN7624 Nigeria boasts of advanced QoS to ensure real-time performance of low-latency applications.

Secure

Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device

PoE

Grandstream GWN7624 Nigeria provides uplink Gigabit network port with PoE/PoE+. Self-power adaptation upon auto detection of PoE or PoE+

Easy Management

The Grandstream GWN7624 Nigeria is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over[1]Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. Embedded controller manages up to 30 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Specifications

Wi-Fi Standards :

IEEE 802.11 a/b/g/n/ac

Antennas :

Two 5G & two double frequency internal antennas
4GHz, gain 3dBi;
5GHz, gain 5dBi

Wi-Fi Data Rates

5G :

IEEE 802.11ac : 6.5 Mbps to 1733 Mbps
IEEE 802.11n : 6.5Mbps to 600Mbps
IEEE 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G :

IEEE 802.11n : 6.5Mbps to 300Mbps
IEEE 802.11b : 1, 2, 5.5, 11 Mbps
IEEE 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands :

4GHz Radio : 2412 – 2484 MHz
5GHz Radio : 5180 – 5825 MHz

*Not all frequency bands can be used in all regions

Channel Bandwidth :

4G : 20 and 40 MHz
5G : 20, 40 and 80 MHz

Wi-Fi and System Security :

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO :

2×2 : 2 2.4GHz(MIMO)
4×4 : 4 5GHz(MU-MIMO)

Coverage Range :

Up to 100 meters *coverage range can vary based on environment

Maximum TX Power :

4G : 23dBm 5G : 25dBm *Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity :

5G 802.11a : -92dBm @6Mbps, -74dBm @54Mbps;
11n 20MHz : -74dBm @MCS7;
11n 40MHz : -71dBm @MCS7 802.11ac 20MHz : -67dBm@MCS8;
11ac : HT40 : – 63dBm @MCS9;
11ac 80MHz : -59dBm @MCS9 2.4G 802.11b : -96dBm@1Mbps, -88dBm@11Mbps;
11g : -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz : -73dBm @MCS7;
11n 40MHz : -70dBm @

SSIDs :

16 SSIDs total, 8 per radio (2.4GHz & 5GHz)

Concurrent Clients

Up to 200

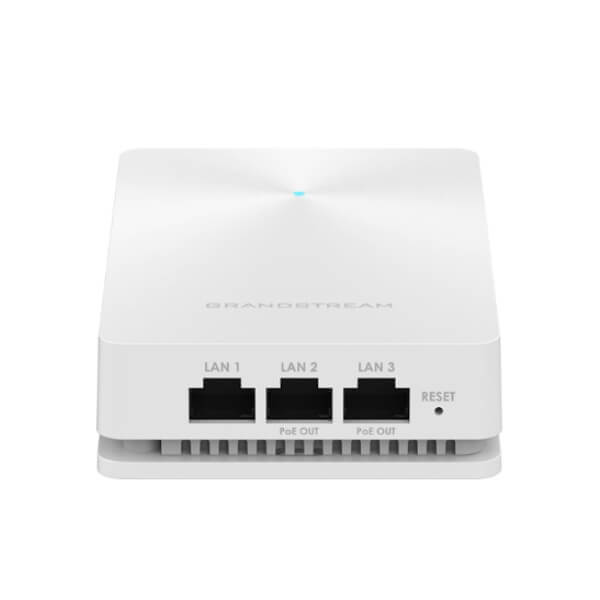

Network Interfaces

1x 10/100/1000M uplink Ethernet port with PoE/PoE+
2x 10/100/1000M Ethernet port with PSE
1x 10/100/1000M Ethernet port

Auxiliary Ports

1x Reset Pinhole

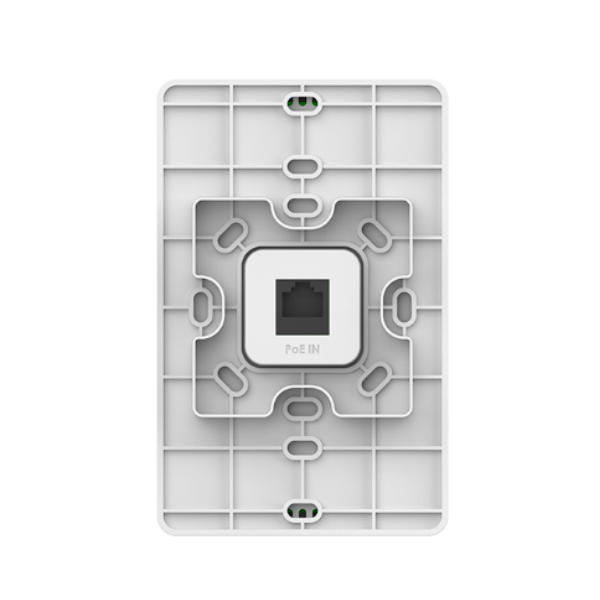

Mounting

In-wall mountable

LEDs

1 tri-color LED for device tracking and status indication

Network Protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

11e/WMM, VLAN, TOS

Network Management

Embedded controller can manage up to 30 local GWN APs
Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

Support 802.3az PoE 802.3af/ 802.3at;
PSE Maximum Output Per Port : 6W;
Maximum Power Consumption : 25W

Environmental

Operation : -10°C to 50°C
Storage : -30°C to 60°C
Humidity : 5% to 95% Non-condensing

Physical

Unit Dimension : 135mm(L)x86mm(W)x38.5mm(H) Entire
Package Dimension : 176mm(L)x118.5mm(W)x65mm(H)

Package Content

GWN7624 In-Wall Wireless AP,
4x Screws (KB 3.5*26),
Quick Installation Guide

Compliance

FCC, CE, RCM, IC, UKCA
