Grandstream GWN7604 Nigeria

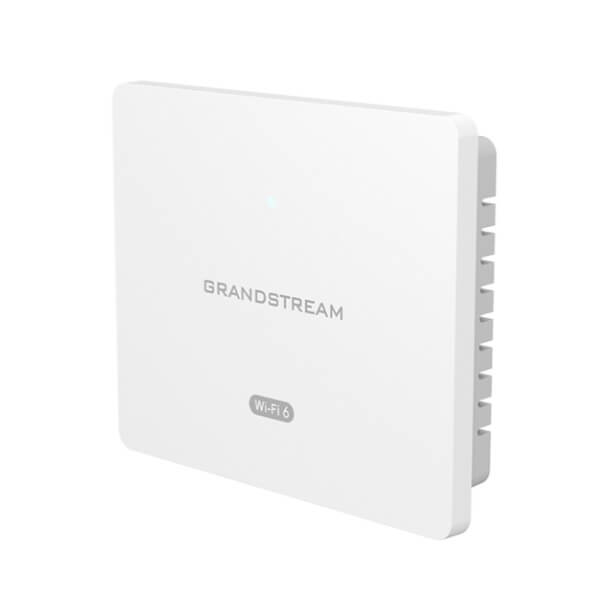

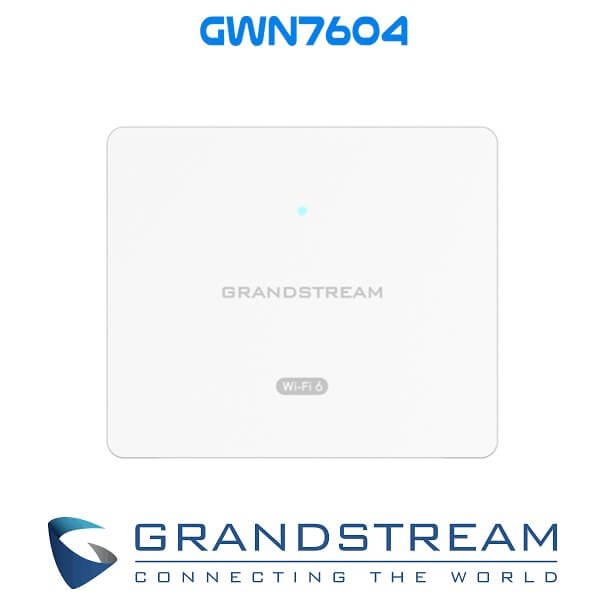

The Grandstream GWN7604 Nigeria is a compact yet powerful Wi-Fi 6 Access Point, designed to cater to a wide range of networking demands.

Description

Grandstream GWN7604 Access Point Nigeria

The Grandstream GWN7604 Nigeria is a compact yet powerful Wi-Fi 6 Access Point, designed to cater to a wide range of networking demands. It features four Gigabit Ethernet ports, including an uplink port that supports PoE/PoE+ for power delivery, along with two PSE-enabled ports capable of providing both PoE and network connectivity to other devices. With a robust aggregate wireless throughput of 3Gbps and a coverage range of up to 100 meters, the GWN7604 delivers reliable performance for up to 256 simultaneous Wi-Fi client devices. Its advanced QoS ensures priority for low-latency applications, while comprehensive security measures such as anti-hacking secure boot, digital signature-based data lockdown, and unique device credentials offer enhanced protection. Additionally, the Grandstream GWN7604 Nigeria is equipped with self-adaptive power functionality, automatically detecting PoE/PoE+ and PSE for seamless operation.

Features

  • 3Gbps aggregate wireless throughput, 4x Gigabit ports
  • Up to 100 meters coverage range
  • Self power adaptation upon auto detection of PoE/PoE+ and PSE
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Supports up to 256 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications

Specifications

Client Devices Up to 256
2.4G Throughput 573.5Mbps (2×2:2 MU-MIMO)
5G Throughput 2.4Gbps (3×3:2 MU-MIMO)
6G THROUGHPUT N/A
Range Up to 100 Meters

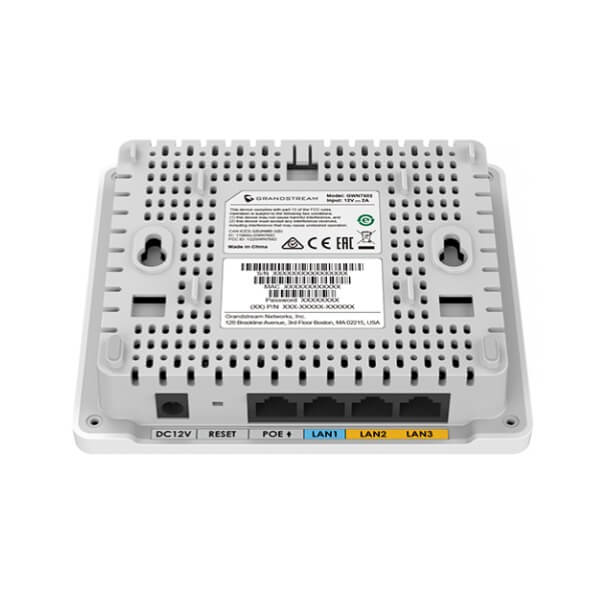

Network Interfaces 1 x 10/100/1000M uplink Ethernet port with POE/POE+ 2 x 10/100/1000M Ethernet port with PSE 1 x 10/100/1000M Ethernet port
PoE/PoE+ PoE 802.3af/ 802.3at PSE max output: Total 12W power budget for LAN2/LAN3 Maximum Power Consumption: 7.5W (Excluding PoE Output)
Wi-Fi Standards IEEE 802.11a/b/g/n/ac/ax
SSIDs 32 SSIDs total, 16 per radio (2.4GHz and 5 GHz)
Antennas 2 x dual-band internal antennas,1x 5G internal antenna
Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
Dimensions 135mm(L) x 115mm(H) x 30mm(W)
Mounting Indoor Wall mount

Datasheet Download
