Description

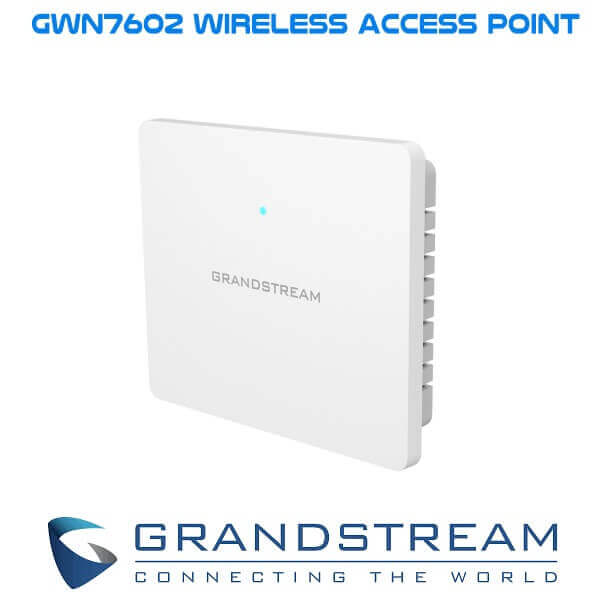

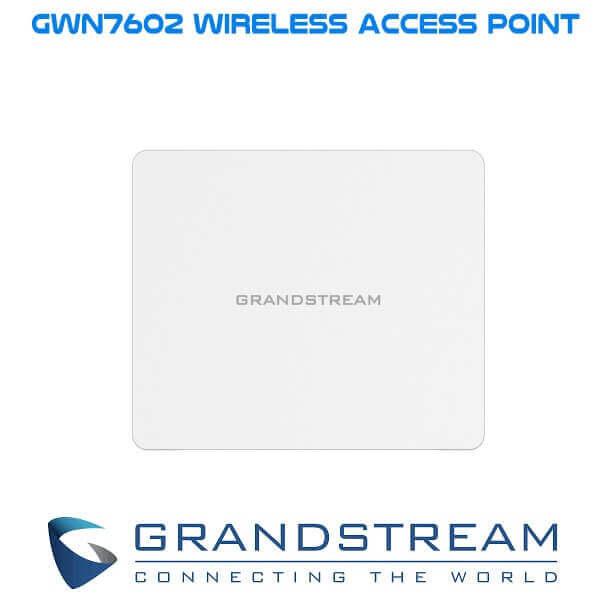

Grandstream GWN7602 Wireless Access Point Nigeria
The Grandstream GWN7602 Nigeria has an advanced antenna design that provides quality network throughput while supporting up to 80 clients within a 100-meter coverage range (328 feet). It features advanced quality of Service (QoS), supports low latency real-time applications, mesh networks and captive portals making it an ideal access point for use cases with small to medium user density. The Grandstream GWN7602 Nigeria is easy to manage via the Grandstream GWN.Cloud, which is a zero-cost cloud Wi-Fi management platform. Moreover, the Grandstream GWN7602 seamlessly pairs with Grandstream’s Wi-Fi-enabled voice and video IP phones so that in the event that you already have said Grandstream phones or if you are looking for a full solution Grandstream can cater to those needs.
Features
- 1.17Gbps aggregate wireless throughput, 1x Gigabit and 3x 100Mbit wireline speed
- Up to 100 meters coverage range
- Self-power adaptation upon auto detection of PoE/PoE+ and PSE
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Support up to 80 Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures,
Dual-band MU-MIMO
The dual-band 2×2:2 technology with beam-forming solutions from Grandstream offers a sophisticated way to upgrade your network throughput and improve your Wi-Fi coverage range – no matter what kind of business environment you run.
Integrated Dual-band Wi-Fi Radio
The Grandstream GWN7602 Wireless Access Point Nigeria comes with a built-in dual-band Wi-Fi 802.11 a/b/g/n/ac which provides a fast network signal for smooth conference calls over the internet at speeds of 2.4GHz and 5GHz.
Wide Coverage Range
The Grandstream GWN7602 Wireless Access Point Nigeria is a highly efficient and reliable device that offers a long coverage range of up to 100 meters which can vary depending on the kind of environment used.
Flexibility
This unique wireless access point from Grandstream pairs seamlessly with routers from third-party companies, as well as the leading routers from the Grandstream GWN series, so that you can build the connectivity environment that’s best suited to your needs, without vendor lock-in.
Advanced performance
The GWN7602 Nigeria comes with support for real-time applications and low latency, as well as advanced QoS and more than 80 devices per AP. There are even extra features like dual Gigabit ports with access to PoE.
Cloud Management
Grandstream provides a reliable and secure cloud service to deliver connectivity to its users at cheaper maintenance costs while enhancing operation and maintenance efficiency. The cloud service on the internet enables customers to gain direct access to Grandstream devices available in private networks such as IP-PBXs, audio gateways, and IP phones, therefore allowing simple remote maintenance and management of Grandstream devices. This kind of cloud service is specifically designed to meet the needs of large-scale installation, configuration, and maintenance and operation. Auto-provisioning and configuration backup, online update, real-time monitoring and alert enable users to achieve efficient operation and maintenance, thus maximizing productivity in organizations.
Supports Power over Ethernet
The Grandstream GWN7602 Nigeria is equipped with three 10/100Mbps ports which are integrated with Power over Ethernet to allow for convenient installation and a variety of remote features including provisioning, status monitoring and handset firmware upgrades.
Interoperability
Grandstream GWN7602 wireless access point Nigeria can be paired with any third-party router as well as Grandstream’s GWN series routers. Supporting advanced QoS, low-latency real-time applications, 80 client devices per AP as well as dual Gigabit network ports with PoE/PoE+.
Specifications
Product Code | GWN7602 |
Wi-Fi Standards | IEEE 802.11a/b/g/n/ac |
Antennas | 2 dual band internal antennas, Antenna 1 – 2.4GHz: gain 3.0dBi, 5GHz: gain 3.5dBi, Antenna 2 – 2.4GHz: gain 3.5dBi, 5GHz: gain 3.0dBi |
Wi-Fi Data Rates | IEEE 802.11ac: 6.5 Mbps to 867Mbps, IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, IEEE 802.11n: 6.5Mbps to 300Mbps, IEEE 802.11b: 1, 2, 5.5, 11Mbps, IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Frequency Bands | 2.4 GHz Radio: 2412 – 2484 MHz, 5 GHz Radio: 5150-5250 MHz, 5250-5350 MHz, 5470-5725 MHz, 5725-5850 MHz |
Channel Bandwidth | 2.4G: 20 and 40MHz, 5G: 20, 40, 80MHz |
System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise |
Mesh | 5G radio |
Coverage Range | Up to 100 meters (Coverage range can vary based on environment) |
Maximum TX Power | 2.4G: 21 dBm, 5G: 21 dBm |
Receiver Sensitivity | 2.4G; 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm@6Mbps, -76dm@54Mbps; 802.11n 20MHz: -92dBm@MCS0, -73dBm@MCS7; 802.11n40MHz: -88.5dBm@MCS0, -71dBm@MCS7, 5G 802.11a: -91dBm@6Mbps, -73.5dBm@54Mbps; 802.11ac: VHT20: -89.5dbm@MCS0, -71.5dBm@ MCS7, -64dBm@MCS8; VHT40: -87.5dBm@MCS0; -69.5dBm@MCS7, -62dBm@MCS9, VHT80: -83.5dBm@MCS0, -65.5dBm@MCS7, -58.5dBm@MCS9 |
SSIDs | 4 SSID per radio |
Concurrent Clients | Up to 80 |

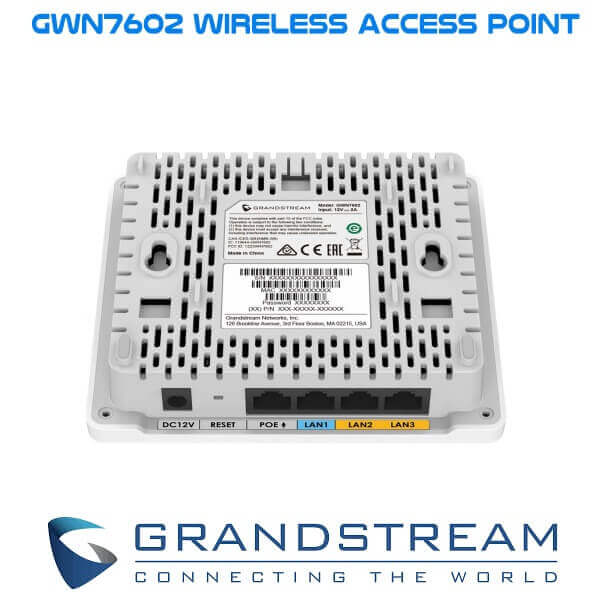

Network Interfaces | 1 x 10/100/1000M uplink Ethernet port with POE/POE+, 2 x 10/100M Ethernet port with PSE, 1 x 10/100M Ethernet port |
Auxiliary Ports | 1x Reset Pinhole |
Mounting | Wall mountable |
LEDs | 1x tri-color LEDs for device tracking and status indication |
Network Protocols | IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
QoS | 802.11e/WMM, VLAN, TOS |
Network Management | GWN.Cloud offers a free cloud management platform for unlimited GWN Aps, GWN.Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs |
Power and Green Energy Efficiency | Support 802.3 az; PoE 802.3af/ 802.3at, PSE max output per port: 6W; Max Consumption: 20 W |
Environmental | Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing |
Physical | Unit Dimension:135 x 115 x 30mm; Unit Weight: 188g, Entire Package Dimension: 171 x 140 x 33mm; Entire Package Weight: 278.5g |
Compliance | FCC, CE, RCM, IC |
