Description

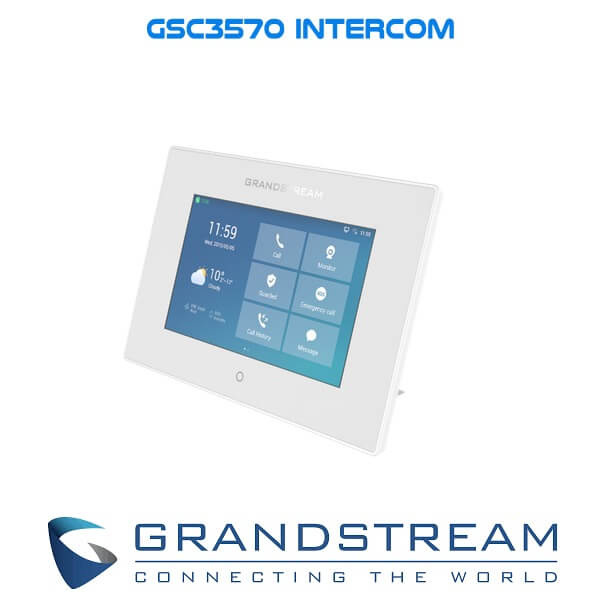

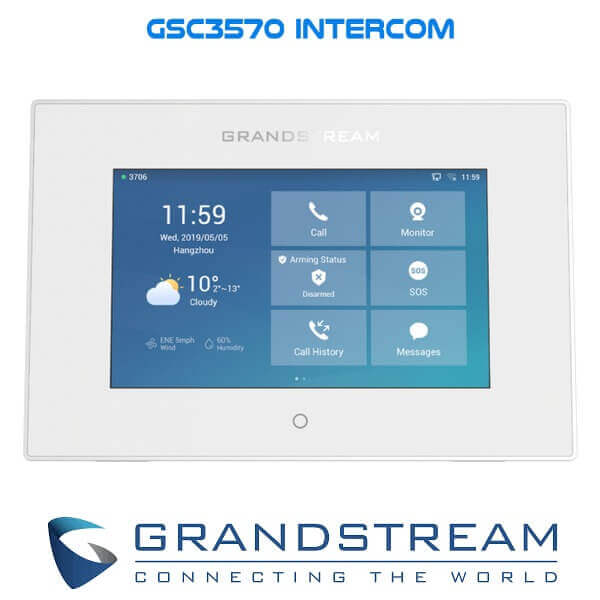

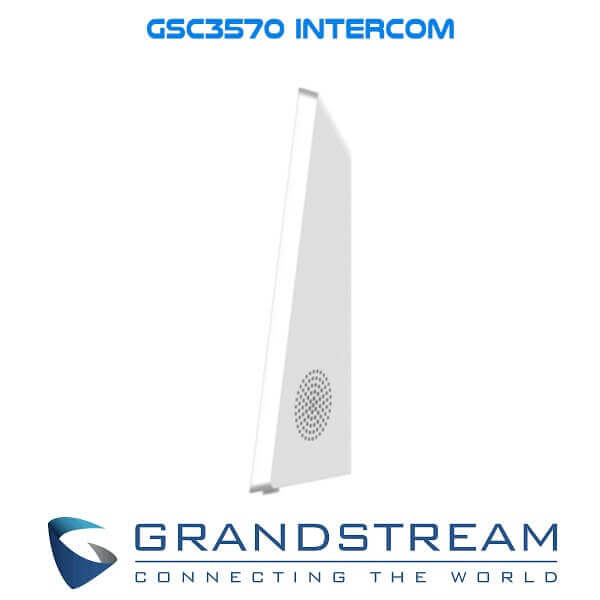

Grandstream GSC3570 Intercom & Facility Control Station Nigeria
The Grandstream GSC3570 Nigeria is a powerful intercom and facility control station designed to provide businesses with a dedicated device to manage facility communications, door access, physical security and more. This device can be wall-mounted or placed on a desktop as a solution for easy door control, intercom and paging communication, security camera management and facility-wide UC integration. The Grandstream GSC3570 Nigeria features a 7-inch touch screen LCD and full duplex 2-way HD audio. It offers a flexible network connectivity through 100Mbps network port with PoE or integrated dual-band Wi-Fi support. This SIP intercom and facility control station is designed to seamlessly integrate with Grandstream’s entire range of products, including the GDS series of Door Access devices, GSC series intercom and paging devices, security cameras and more. The Grandstream GSC3570 Nigeria is ideal for any deployment scenario where facility access, communications and security need to be centrally monitored and controlled.
Features
- 7 inch 1024×600 capacitive touch screen
- Dual-band 802.11 ac Wi-Fi
- 4x alarm input ports and 1x alarm output port for customized deployments
- Full-duplex 2-way HD audio with advanced echo cancellation
- Secure Boot & Data, TLS and SRTP security encryption technology to protect calls and accounts
- Supports PoE to provide a network connection to the device
Easy to Use
The Grandstream GSC3570 Intercom Nigeria is equipped with a 7” 1024 x 600 capacitive touch screen which delivers an enhanced visual clarity to its user even when used under poor lighting conditions.
Dual-Band Wi-Fi
The Grandstream GSC3570 Nigeria is equipped with a dual-band Wi-Fi radio which delivers fast connection speeds of 2.4GHz and 5GHz, allowing for the making of quick internet calls.
Full-Duplex 2-Way Audio
The Grandstream GSC3570 HD Intercom Nigeria is equipped with a full-duplex 2-way HD audio which uses a variety of voice codecs including 711μ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, DTMF (In audio, RFC2833 to deliver crystal clear sounds during calls. It also uses other noise suppression technologies such as Advanced Echo Cancellation (AEC) and Adaptive Jitter Buffer(AJB) to deliver audible sounds.
Supports Power over Ethernet (PoE)
The Grandstream GSC3570 HD Intercom Nigeria is equipped with dual-switched 10/100Mbps ports which are integrated with Power over Ethernet for an easy network connection to the device.
Firmware Upgradeable
The Grandstream GSC3570 HD Intercom Nigeria allows for firmware upgrading so as to access newer updates, fix existing bugs that may cause malfunctioning of the Intercom, and eliminate safety risks that result from malware and malicious cyber hackers. This ensures the security of your system.
Interoperability
The Grandstream GSC3570 HD Intercom Nigeria is compliant with SIP RFC3261 and is therefore widely compatible with various 3rd party door system products.
Rich Functionality
The Grandstream GSC3570 Nigeria is packed with standard telephony features including 4 SIP accounts, Hold, Call Waiting, Call Log, Auto Answer, etc. It is an easy-to-use device that requires no technical expertise from its user.
Specifications
Protocol/Standards
- SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LDAP, 802.1x, TLS, SRTP, IPv6
Network Interface
- Dual switched 10/100Mbps ports
Graphic Display
- 7’’ 1024×600 capacitive touch screen TFT LCD with Home key
Wi-Fi
- Yes, dual-band 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
Auxiliary Ports
- 4 x Alarm Input
- 1 x Alarm Output
- Micro SD card slot
Voice Codecs and Capabilities
- 711μ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS
Video Decoders and Capabilities
- 264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps
Telephony Features
- 4 SIP Accounts, Hold, Call Waiting, Call Log, Auto Answer, etc
Sample Applications
- Local apps: Contacts, Call History, Settings, Voicemail, Clock
- API/SDK available to allow integration with 3rd party door system products
Operating System
- Linux
HD Audio
- Yes, Dual speakers with support for wideband audio and media play in stereo, acoustic echo cancellation
QoS
- Layer 2 (802.1Q, 802.1p), 802.11e and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
- Secure Boot & Data, Double images for high reliability, random administrator password, user and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES based secure configuration file, SRTP, TLS, 802.1x media access control
Multi-language
- English and Chinese
Upgrade/Provisioning
- Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using AES encrypted XML configuration file, manual upload
Power & Green Energy Efficiency
- 2-pin DC input: 12VDC/1A
- Integrated PoE : IEEE 802.3af Class 3, power consumption <10W
- Micro USB input: 5VDC/2A
Temperature and Humidity
- Operation: -10°C to 50°C, Storage: -20°C to 60°C
- Humidity: 10% to 90% Non-condensing
Physical
- Unit Dimension: 224.5 x 149.5 x 36.5mm; Unit Weight: 516g
Package Contents
- GSC3570
- Quick installation guide
- Wall mount bracket
- Desktop stand (optional)
Compliance
- FCC, CE, RCM, IC
