Description

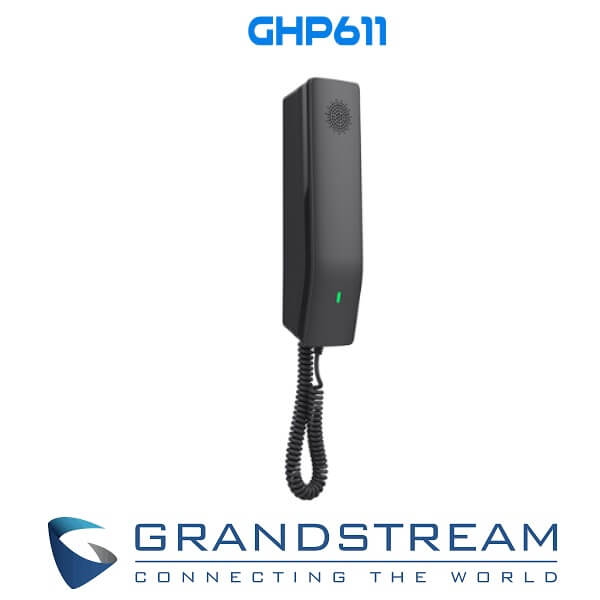

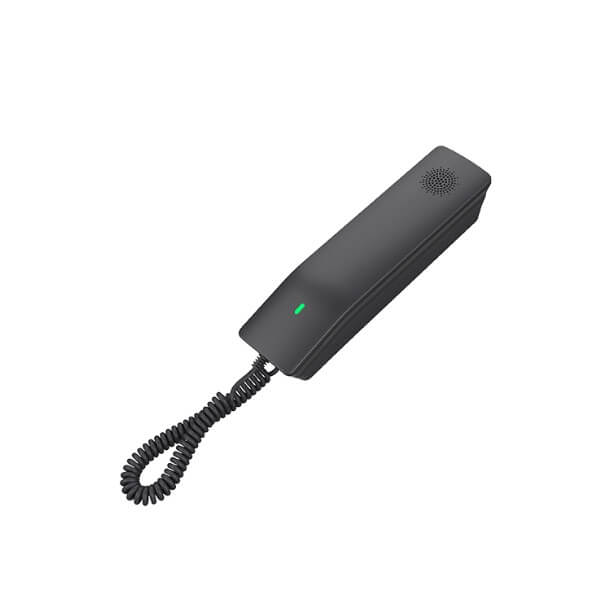

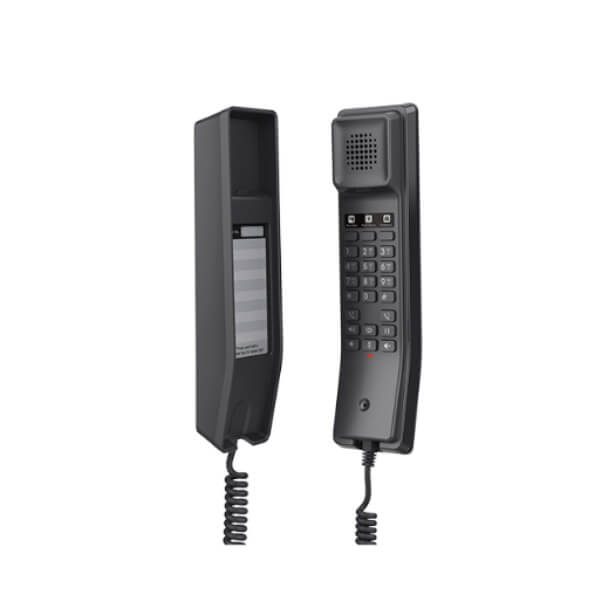

Grandstream ghp611 hotel ip phone nigeria

The grandstream ghp611 nigeria features a compact IP phone offering an HD speaker on the handset, 2 SIP accounts/lines, 10 speed dial keys and 3 programmable keys. It includes one 100Mbps network port with PoE. Part of the GHP Series of Hotel Phones, these simple IP phones are also ideal for hospitals, apartments, dormitories, retail and more. This Series includes 2 models with integrated dual-band Wi-Fi support (GHP610W and GHP611W), provides 3-way voice conferencing, supports full-band OPUS voice codec and features an advanced jitter-resilience algorithm that tolerates up to 30% packet loss without impacting voice quality. The grandstream ghp611 nigeria is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Thanks to a compact design that can be easily used on a desktop or wall-mounted, grandstream ghp611 nigeria is ideal for hotel deployments as well as many other similar environments.

Features

2 SIP Accounts, 2 Lines
GDMS online device management and provisioning
3-way audio conferencing for easy conference calls
Integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac (GHP610W & GHP611W only)
Includes one 100Mbps network port with PoE (GHP610 & GHP611 only)
Speed dial label and swappable faceplate to allow for easy customization
Hearing Aid Compatibility (HAC)
Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage

Specifications

Protocols/Standards

SIP: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP Network: IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, LLDP, TR-069, 802.1x

Network Interfaces

One auto-negotiation 10/100 Mbps ethernet port integrated PoE Class 2 (GHP610/GHP611)

Wi-Fi

GHP610W/GHP611W integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac

Feature Keys

23 keys, including 3 programmable keys, 12 Standard Phone Digits keys (0-9: speed dial keys configuration on web page, *, #), 5 Function keys (Flash, Redial, Hands-free, Voice Mail, Hold), 3 Volume Control keys, Up/Down/Mute (with red color LED)

HD Audio

One HD handset support for wide band audio

Voice Conferencing

2 SIP accounts and lines, up to 3-way conference

Voice Codecs and Capabilities

Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G.723, iLBC, and full band OPUS. In- band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB.

Telephony Features

Dial, Answer, Transfer, Conference, Redial, Flash, Hands-free, Voice Mail (with the server) Hold / Unhold, Mute /Unmute, flexible dial plan, Speed dial server redundancy & fail-over Call out.

Advanced Features

Support for multicast paging and E911 service
Support for advanced jitter-resilience algorithm
Supports GDS Door Opening

Wall Installation

1 Wall Mountable Base

QoS

Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

Secure boot, random default password, unique security certificate per device, administrator level passwords, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control

Multi-language

English and Chinese

Upgrade/Provisioning

Firmware upgrade via FTP/TFTP / HTTP / HTTPS, fast boot in 15 seconds, mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file

Power & Green Energy Efficiency

Universal power adapter (GHP610W/GHP611W): Input: 100~240Vac 50~60Hz Output: 12V/0.5A(6W)

Temperature and Humidity

Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90%
(Non-condensing)

Package Content

GHP61X phone, handset with cord, base, universal power supply (GHP610W & GHP611W), Quick Installation Guide

Color

White (GHP610 & GHP610W), Black (GHP611 & GHP611W)

Physical

211mm(L)*53mm(W)*44mm(H) (with handset) Unit weight: 300g (GHP610/GHP611), 350g (GHP610W/GHP611W US), 360g (GHP610W/GHP611W World) Package weight: 445g (GHP610/GHP611), 515g (GHP610W/GHP611W US), 525g (GHP610W/GHP611W World)

GHP610 & GHP611 Compliance

FCC: Part 15 Subpart B, Class B; Part 68. 316/317. CE: EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1. UKCA: BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1. RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004, AS/CA S040. IC: ICES-003; CS-03 Part V.

GHP610W & GHP611W Compliance

FCC: Part 15 Subpart B, Class B; Part 15 Subpart C,15.247; Part 15 Subpart E,15.407; Part 68. 316/317. CE: EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 301489-1\- 17; ETSI EN 300 328; ETSI EN 301 893; EN 50360; EN 50566; EN 50663; EN 62209-1; EN 62209-2; EN 62479; EN IEC 62311. UKCA: BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1; ETSI EN 301489-1\-17; ETSI EN 300 328; ETSI EN 301 893; BS EN 50360; BS EN 50566; BS EN 50663; BS EN 62209-1; BS EN 62209-2; BS EN 62479; BS EN IEC 62311. RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 2772.2; AS/NZS 62368.1; AS/CA S004; AS/CA S040. IC: RSS-247; RSS-Gen; RSS-102; ICES-003; CS-03 Part V.
