Grandstream GBX20 Nigeria

The Grandstream GBX20 Nigeria is an Expansion Module that adds functionality, versatility and flexibility to Grandstream’s GRP2615 and GRP2624 Carrier-Grade IP Phone’s and the GXV3350 IP Video Phone.

Category:

Description

Grandstream GBX20 Expansion Module Nigeria

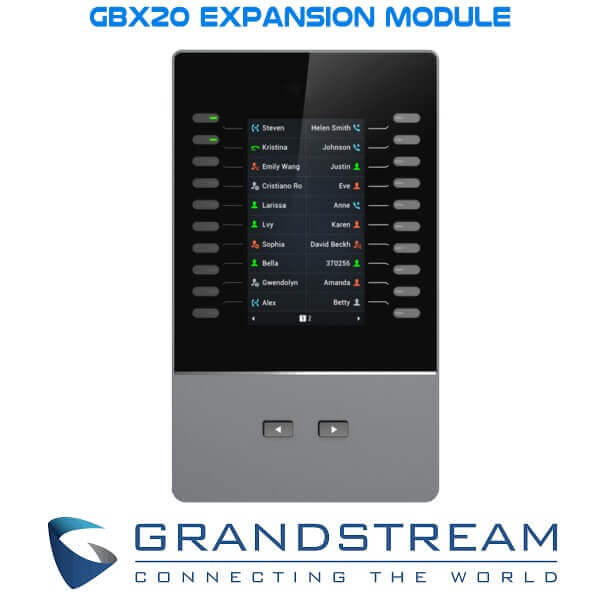

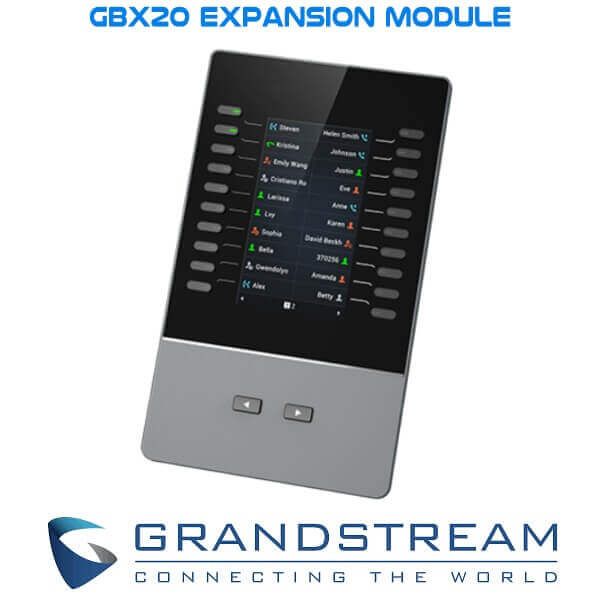

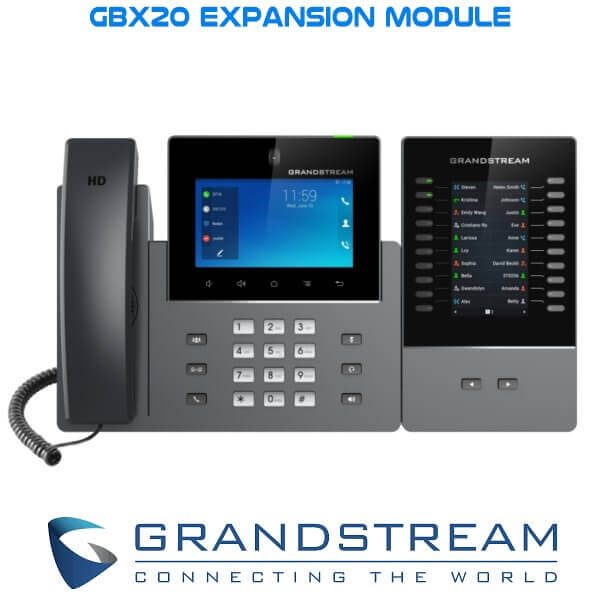

The Grandstream GBX20 Nigeria is an Expansion Module that adds functionality, versatility and flexibility to Grandstream’s GRP2615 and GRP2624 Carrier-Grade IP Phone’s and the GXV3350 IP Video Phone. It features a 272×480 LCD display that offers up to 40 contacts per module with support for up to 160 contact s by using 4 modules. The Grandstream GBX20 Nigeria supports a wide-range of advanced call features including BLF, call park /pick-up, speed-dial, presence, intercom, voice conferencing transfer/forward and much more. An ideal solution for businesses and receptionists managing high call volumes, the GBX20 ensures maximum productivity by efficiently monitoring and dispatching incoming calls.

The Grandstream GBX20 Nigeria is a backlit LCD extension module supported by the GXV3350, GRP2615 and GRP2624. The module includes 20 dual-colored extension keys and 2 arrow keys for page switching (allowing each GBX20 to support up to 40 contacts/extensions.). Connect up to 4 GBX20 modules to compatible Grandstream phones for a total of 160 contacts/extensions.

Features

  • 3 inch TFT color LCD screen
  • 20 lines per page (each module contains 2 pages, for up to 40 lines per module)
  • Combine up-to 4 daisy-chained modules for 160 contacts/extensions
  • BLF, call park /pick-up, speed-dial, presence, intercom, voice conferencing transfer/forward

Specifications

Lines

  • 20 per page (each module contains 2 pages, for up to 40 lines per module Up to 160 with 4 daisy-chained modules

Compatible Grandstream Phones

  • GRP2615
  • GXV3350

Graphic Display

  • 3 inch (272×480) TFT color LCD

Feature Support

  • Local GUI with animation driven from the host GRP2615 or GXV3350 phone; Multiple line/call appearances

Power

  • A single GBX20 can be powered by host phone (GRP2615 or GXV3350); when 2 or more GBX20 is connected an included 12V/1A PSU is needed.

Firmware Upgrades

  • GBX20 firmware is upgraded by direct network download through host phone (GRP2615 or GXV3350)’s network connection and firmware upgrade setup

Physical

  • Dimension : 210mm*124mm*33.5mm
  • Unit weight : 360g
  • Package weight : 700g

Package content

  • GBX20 Expansion Board, base stand, Expansion Board Connector Plate, Screws, USB cable, Quick Installation Guide

Temperature and Humidity

  • Operation : 0°C to 40°C
  • Storage : -10°C to 60°C
  • Humidity : 10% to 90% non-condensing

Compliance

  • FCC : Part 15 Class B
  • IC : ICES-003
  • CE : EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1
  • RCM : AS/NZS CISPR32; AS/NZS 62368.1
