Description

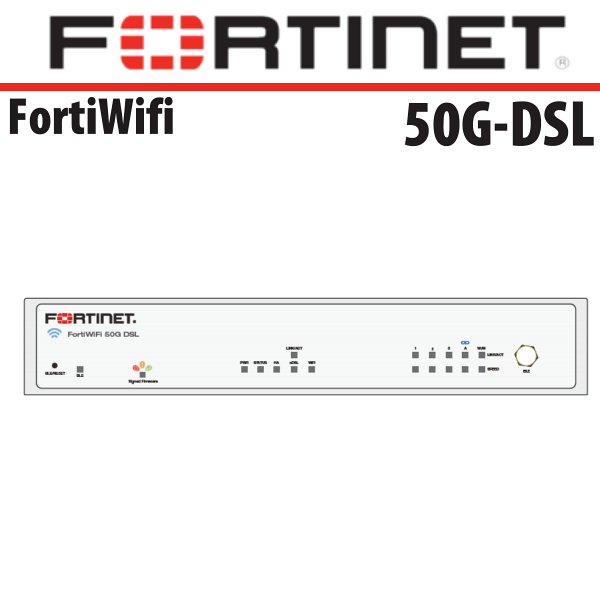

FortiWiFi50G DSL Next-Generation Firewall Nigeria
The FortiWiFi50G DSL Nigeria is expertly engineered to establish security-centric networks across distributed enterprise locations and to transform WAN architectures at any scale. Equipped with a robust suite of AI and ML-driven FortiGuard security services, alongside our integrated Security Fabric platform, the FortiWiFi50G DSL provides coordinated and automated end-to-end threat protection across diverse applications. This solution features the industry’s first integrated SD-WAN and Zero Trust Network Access (ZTNA) enforcement within a Next-Generation Firewall (NGFW) framework, all powered by a unified operating system. The FortiWiFi50G DSL Nigeria autonomously manages, verifies, and streamlines user access to applications, ensuring a consistent and optimized user experience.
Key features of the FortiWiFi50G DSL Nigeria are designed to bolster both network security and performance. Its built-in Next-Generation Firewall (NGFW) offers comprehensive protection against a wide array of cyber threats, including malware, viruses, spyware, and botnets. Supporting Wi-Fi 6 standards, it guarantees high-speed performance and delivers faster, more reliable wireless connectivity. The device operates on dual-band frequencies, utilizing both 2.4 GHz and 5 GHz bands to achieve optimal performance and extensive coverage. Additionally, the FortiWiFi50G DSL incorporates beamforming technology, which directs Wi-Fi signals toward specific devices to enhance performance and range. The inclusion of Multi-User Multiple Input Multiple Output (MU-MIMO) technology allows for simultaneous connections of multiple devices, providing accelerated speeds. For enhanced manageability, the device can be centrally administered via Fortinet’s FortiCloud platform, complemented by an intuitive web-based interface for streamlined configuration and management.
Specifications:
Hardware Specifications | |
Hardware Accelerated GE WAN Port | 1 |
Hardware Accelerated GE RJ45 Ports | 1 |
Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
DSL RJ11 Port | 1 |
USB Ports | 1 |
Console Port (RJ45) | 1 |
Trusted Platform Module (TPM) | Yes |
Cellular Modem | — |
Antenna Ports (SMA) | 3 |
SIM Slots (Nano SIM) | — |
Wireless Interface | Dual Radio (2.4 GHz/ 5 GHz), 802.11 a/b/g/n/ac/ax |
System Performance — Enterprise Traffic Mix | |
IPS Throughput | 2.25 Gbps |
NGFW Throughput | 1.25 Gbps |
Threat Protection Throughput | 1.1 Gbps |
System Performance | |
Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5 / 5 / 4 Gbps |
Firewall Latency (64 byte UDP packets) | 2.42 μs |
Firewall Throughput (Packets Per Second) | 6 Mpps |
Concurrent Sessions (TCP) | 720 000 |
New Sessions/Second (TCP) | 85 000 |
Firewall Policies | 2000 |
IPsec VPN Throughput (512 byte) | 4.5 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 250 |
SSL-VPN Throughput | — |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | — |
SSL Inspection Throughput (IPS, avg. HTTPS) | 1.3 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 699 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 74,000 |
Application Control Throughput (HTTP 64K) | 2.8 Gbps |
CAPWAP Throughput (HTTP 64K) | 3.8 Gbps |
Virtual Domains (Default / Maximum) | 5/5 |
Maximum Number of FortiSwitches Supported | 8 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 |
Maximum Number of FortiTokens | 500 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions | |
Height x Width x Length (inches) | 1.6 x 8.5 x 6.3 |
Height x Width x Length (mm) | 40.5 x 216 x 160 |
Weight | 2.2 lbs (1.0 kg) |
Form Factor (supports EIA/non-EIA standards) | Desktop |
Operating Environment and Certifications | |
Power Rating | 12VDC, 3A |
Power Required | |
Maximum Current | 100V/0.3A, 240V/0.15A |
Power Consumption (Average / Maximum) | 17.74 W / 19.0 W |
Heat Dissipation | 64.79 BTU/h |
Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
Humidity | 10% to 90% non-condensing |
Noise Level | |
Operating Altitude | Up to 10 000 ft (3048 m) |
Compliance | FCC, ISED, CE, UL/cUL, CB |
Certifications | USGv6/IPv6 |
xDSL Modem Supported Mode | |
vDSL2 | Yes |
ADSL2 | Yes |
ADSL2+ | Yes |
G.DMT | Yes |
T1.413 | Yes |
G.Lite | Yes |
xDSL Modem Supported Type | |
Annex A, B, I, J, M, L | Yes |
Radio Specifications | |
Multiple User (MU) MIMO | 2 x 2 |
Maximum Wi-Fi Speeds | 1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz |
Maximum Tx Power | 21.0 dBm per chain @ 2.4GHz, 19.5 dBm per chain @ 5GHz |
5G Modem | |
Regions | — |
Modem Model | — |
LTE Category | — |
5G Bands | — |
LTE Bands | — |
UMTS/HSPA+ | — |
WCDMA | — |
CDMA 1xRTT/EV-DO Rev A | — |
GSM/GPRS/EDGE | — |
Module Certifications | — |
Diversity | — |
MIMO | — |
GNSS Bias | — |
