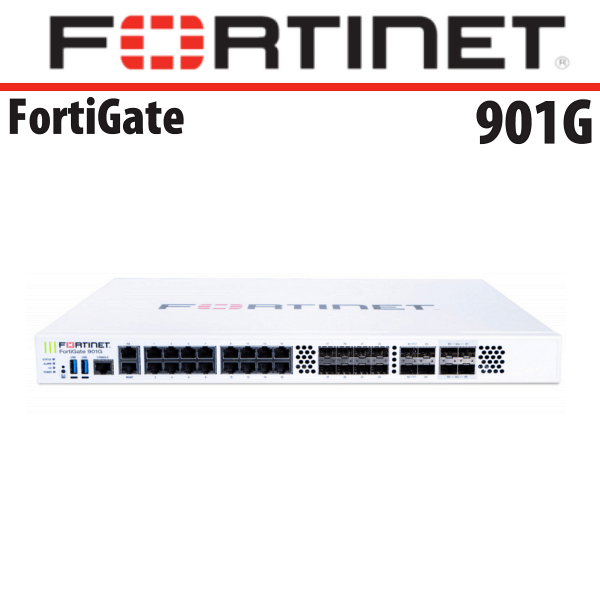

Fortinet901G Nigeria

The Fortinet901G Nigeria NGFW (Next-Generation Firewall) leverages advanced artificial intelligence (AI) and machine learning (ML) technologies to provide comprehensive threat protection tailored for various scales of network infrastructure.

Category:

Description

Fortinet901G Next-Generation Firewall Nigeria

The Fortinet901G Nigeria NGFW (Next-Generation Firewall) leverages advanced artificial intelligence (AI) and machine learning (ML) technologies to provide comprehensive threat protection tailored for various scales of network infrastructure. This sophisticated firewall enables organizations to gain enhanced visibility into their network environments, allowing them to identify and monitor applications, users, and devices before they escalate into potential threats.

Equipped with a robust suite of AI and ML security features, the Fortinet901G Nigeria seamlessly integrates into a cohesive security fabric platform, ensuring secure networking that is both expansive and intricate. This solution facilitates end-to-end network security through advanced edge protection mechanisms, which encompass web security, content filtering, and device protection. Moreover, the implementation of network segmentation and secure Software-Defined Wide Area Network (SD-WAN) capabilities simplifies management while mitigating risks associated with hybrid IT environments.

In addition, the Universal Zero Trust Network Access (ZTNA) framework embedded within the Fortinet901G enhances security by automatically regulating, verifying, and managing user access to applications. This approach significantly minimizes lateral movement threats by ensuring that access is granted solely to authenticated and validated users. Furthermore, the ultra-fast threat protection and SSL inspection features deliver security at the network’s edge, enabling organizations to maintain high performance without compromising on protective measures.

Hardware Features

Trusted Platform Module (TPM)

The Fortinet901G Nigeria features a dedicated module that hardens physical networking appliances by generating, storing,and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.

Access Layer Security

FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.

Specifications

Interfaces and Modules
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Ultra Low Latency Slots 4
Hardware Accelerated 10 GE SFP+ / GE SFP Slots 4
Hardware Accelerated GE SFP Slots 8
Hardware Accelerated GE RJ45 Slots 16
2.5 GE / GE HA Port 1
GE Management Port 1
USB Ports (Client / Server) 2/2
Console Port 1
Onboard Storage 2x 480 GB
Trusted Platform Module (TPM) Yes
Included Transceivers 2x SFP SX
System Performance — Enterprise Traffic Mix
IPS Throughput 26 Gbps
NGFW Throughput 22 Gbps
Threat Protection Throughput 20 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 164 / 163 / 153 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP 164 / 163 / 153 Gbps
Firewall Latency (64 byte, UDP) 3.78 / 2.5 μs
Firewall Throughput (Packet per Second) 229.5 Mpps
Concurrent Sessions (TCP) 16 Million
New Sessions/Second (TCP) 720 000
Firewall Policies 10 000
IPsec VPN Throughput (512 byte) 55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2000
Client-to-Gateway IPsec VPN Tunnels 50 000
SSL-VPN Throughput 10 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 10 000
SSL Inspection Throughput (IPS, avg HTTPS) 16.7 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 18 000
SSL Inspection Concurrent Session (IPS, avg HTTPS) 1.6 Million
Application Control Throughput (HTTP 64K) 74.8 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 96
Maximum Number of FortiAPs (Total / Tunnel) 1024 / 512
Maximum Number of FortiTokens 5000
High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches) 1.5 x 17.0 x 15.0
Height x Width x Length (mm) 44.45 x 432 x 380
Weight (maximum) 16.53 lbs (7.5 kg)
Form Factor (supports EIA/non-EIA standards) Rack Mount, 1RU
AC Power Supply 100–240VAC, 50/60 Hz
AC Current (Maximum) 6A@100VAC
DC Power Supply 48-60VDC
DC Current (Maximum) 7A@48V
Power Consumption (Average / Maximum) 144 W / 264 W
Heat Dissipation 902 BTU/h
Power Supply Efficiency Rating 80Plus Compliant
Redundant Power Supplies (Hot Swappable) Yes (comes with 2PSU default)
Operating Environment and Certifications
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity 10%–90% non-condensing
Noise Level 58 dBA
Forced Airflow Side and Front to Back
Operating Altitude Up to 10 000 ft (3048 m)
Compliance FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications USGv6/IPv6

Datasheet Download
