Description

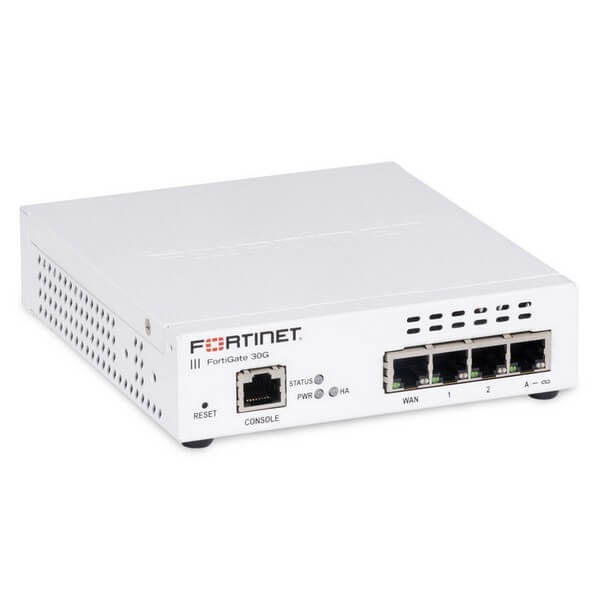

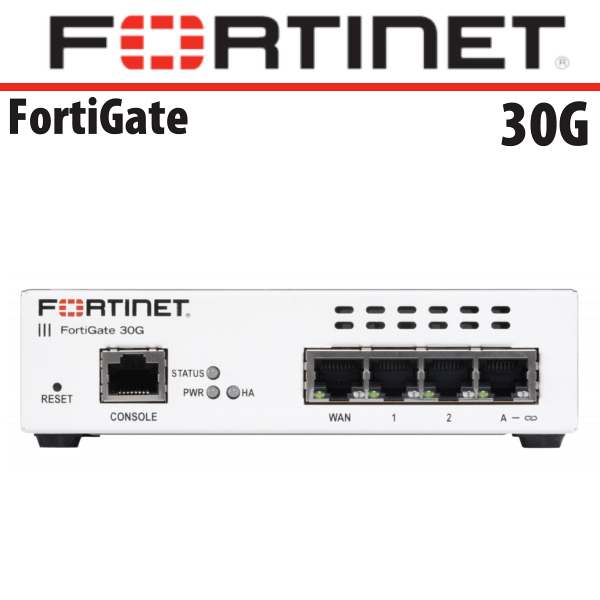

Fortinet30G Firewall Nigeria
The Fortinet30G Nigeria is a comprehensive solution that integrates firewall capabilities, SD-WAN functionality, and advanced security features into a single appliance. This design is particularly well-suited for establishing security-driven networks at distributed enterprise locations and for transforming WAN architectures of any scale. Powered by the FortiOS operating system, the Fortinet30G utilizes the industry’s first converged networking and security approach, enabling organizations to effectively safeguard their dynamic digital infrastructures.
As a vital component of the FortiGate Security Fabric platform, the FortiGate Next Generation Firewall (NGFW) seamlessly collaborates with FortiGuard’s AI-powered Security Services. This integration provides coordinated, automated, end-to-end threat protection across all use cases in real-time. The Fortinet30G is engineered with a patented SD-WAN-based ASIC, delivering unparalleled performance compared to traditional CPU solutions, while also reducing costs and power consumption. This application-specific design, along with its embedded multi-core processor, enhances the convergence of networking and security functions, thereby optimizing secure connections and improving user experiences at branch locations.
The Fortinet30G Nigeria boasts a robust array of features aimed at enhancing both network security and performance. Its Next-Generation Firewall (NGFW) delivers extensive protection against a wide spectrum of cyber threats, including malware, viruses, spyware, and botnets. The device’s SD-WAN capability facilitates flexible and efficient WAN connectivity, allowing businesses to optimize network performance while minimizing costs. Leveraging FortiGate’s patented Security Fabric architecture, the Fortinet30G ensures high-performance security without sacrificing efficiency. Additionally, the device employs AI-powered security mechanisms to detect and block advanced threats in real-time.
With an intuitive web-based interface, the Fortinet30G simplifies configuration and management, making it accessible for users. Its scalable architecture adapts to growing network demands, while cloud-based management features enable centralized monitoring and control of distributed networks.
Specifications:
Hardware Specifications | |
Hardware Accelerated GE WAN Port | 1 |
Hardware Accelerated GE RJ45 Ports | 2 |
Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
USB Ports | — |
Console Port (RJ45) | 1 |
Trusted Platform Module (TPM) | |
Bluetooth Low Energy (BLE) | — |
Wireless Interface | — |
System Performance* — Enterprise Traffic Mix | |
IPS Throughput | 800 Mbps |
NGFW Throughput | 570 Mbps |
Threat Protection Throughput | 500 Mbps |
System Performance | |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
4/ 4/ 3.9 Gbps |
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
4/ 4/ 3.9 Gbps |
Firewall Latency (64 byte UDP packets) |
2.87 μs |
Firewall Throughput (Packets Per Second) |
5.85 Mpps |
Concurrent Sessions (TCP) | 600,000 |
New Sessions/Second (TCP) | 30,000 |
Firewall Policies | 2000 |
IPsec VPN Throughput (512 byte) | 3.5 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 250 |
SSL-VPN Throughput | — |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
— |
SSL Inspection Throughput (IPS, avg. HTTPS) |
400 Mbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 260 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
Application Control Throughput (HTTP 64K) | 830 Mbps |
CAPWAP Throughput (HTTP 64K) | TBA Gbps |
Virtual Domains (Default / Maximum) | Not Supported |
Maximum Number of FortiSwitches Supported | 8 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 16/8 |
Maximum Number of FortiTokens | 500 |
High Availability Configurations | Active-Passive, Active-Active |
Dimensions | |
Height x Width x Length (inches) | 1.6 x 5.6 x 6.3 |
Height x Width x Length (mm) | 40.5 x 142 x 160 |
Weight | 1.3 lbs (0.6 kg) |
Rack Mount Type | NA |
Wall Mountable | Optional |
Form Factor (supports EIA/non‑EIA standards) | Desktop |
Operating Environment and Certifications | |
Power Rating | 12VDC, 2A |
Power Source Powered by external DC power adapter | 100-240V AC, 50/60 Hz |
Maximum Current | 100V/0.11A, 240V/0.055A |
Power Consumption (Average / Maximum) | 6.8 W / 8.2 W |
Heat Dissipation | 28 BTU/hr |
Operating Temperature | 32° to 104°F (0° to 40°C) |
Storage Temperature | -31° to 158°F (-35° to 70°C) |
Humidity | 20% to 90% non-condensing |
Noise Level | N/A |
Operating Altitude | 10 000 ft (3048 m) |
Compliance | FCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA |
Certifications | USGv6/IPv6 |
